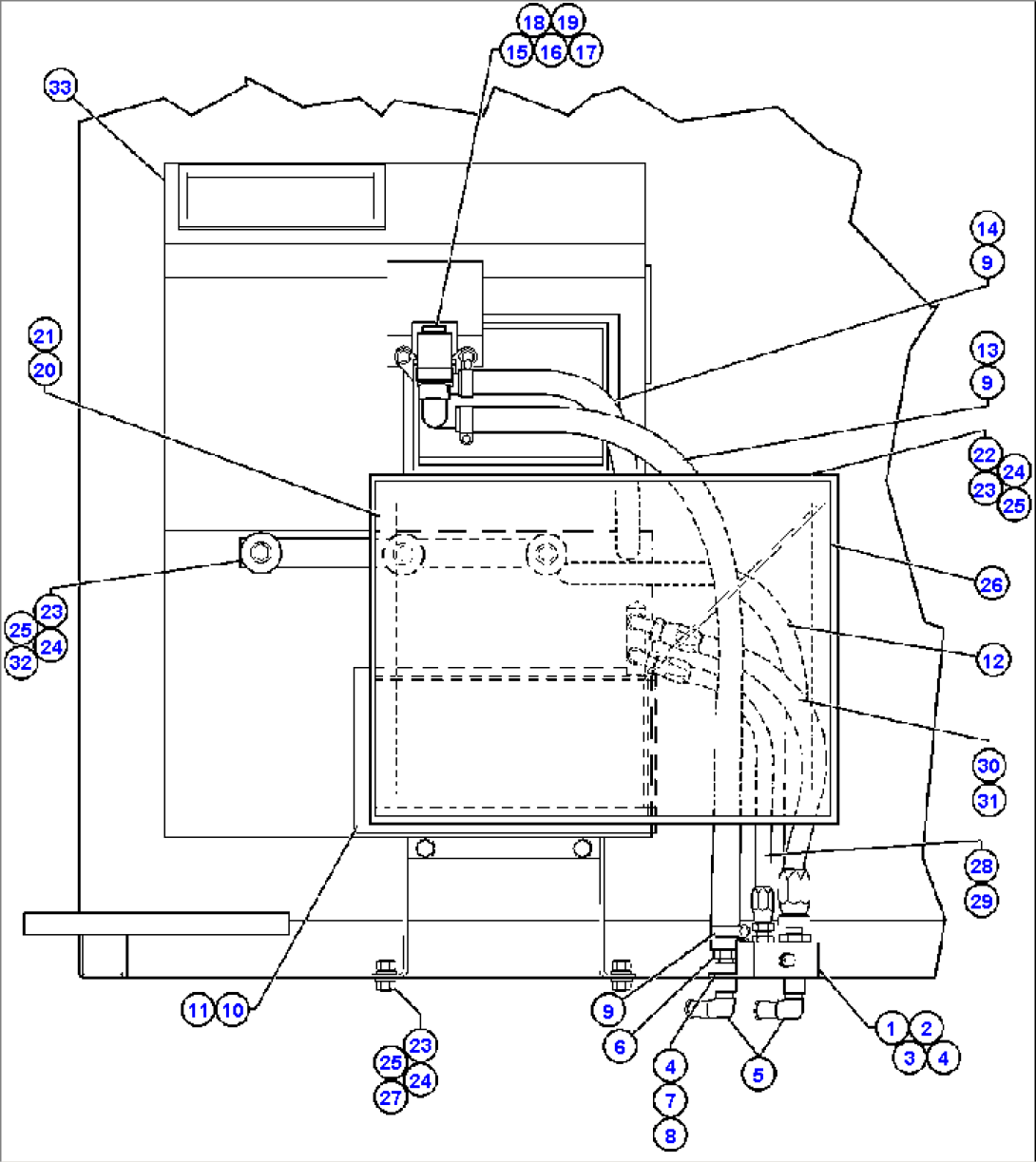

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | SM2489 | BLOCK, JUNCTION - REFRIGERANT | ||
| 2 | MM0460 | FLAT WASHER - M8 | ||
| 3 | MM0057 | CAPSCREW - M8 X 1.25 X 60 | ||
| 4 | MM0470 | LOCKWASHER - M8 | ||
| 5 | TV2642 | ELBOW - 90 DEG. | ||
| 6 | TG5601 | CONNECTOR, HOSE | ||
| 7 | SM2111 | PLATE, JUNCTION | ||
| 8 | MM0026 | CAPSCREW - M8 X 1.25 X 25 | ||
| 9 | HC0908 | CLAMP | ||
| 10 | EC8893 | SEAL, NEOPRENE SPONGE | ||
| 11 | TY8684 | SEAL, NEOPRENE SPONGE | ||
| 12 | TH0031 | HOSE | ||
| 13 | ED0561 | HOSE - INLET | ||
| 14 | ED0560 | HOSE - OUTLET | ||
| 15 | SM2318 | VALVE, SOLENOID - HEATER | ||
| 16 | C1546 | FLAT WASHER - 1/4" | ||
| 17 | C5774 | LOCKWASHER - 1/4" | ||
| 18 | H0596 | CAPSCREW - 1/4" - 20NC X 1 1/4" | ||
| 19 | PB8748 | WELL NUT | ||
| 20 | EC8894 | SEAL, NEOPRENE SPONGE | ||
| 21 | TY8687 | SEAL, NEOPRENE SPONGE | ||
| 22 | SM2106 | PLENUM | ||
| 23 | MM0461 | FLAT WASHER - M10 | ||
| 24 | MM0471 | LOCKWASHER - M10 | ||
| 25 | MM0042 | CAPSCREW - M10 X 1.50 X 25 | ||
| 26 | PB7001 | FILTER, AIR INLET | ||
| 27 | SM2109 | SUPPORT | ||
| 28 | HA7190 | HOSE | ||
| 29 | WA1731 | O-RING | ||
| 30 | HA7191 | HOSE | ||
| 31 | WA1733 | O-RING | ||
| 32 | DA0557 | FLAT WASHER | ||
| 33 | EF7076 | HEATER - A/C MODULE (SEE INDEX) |
