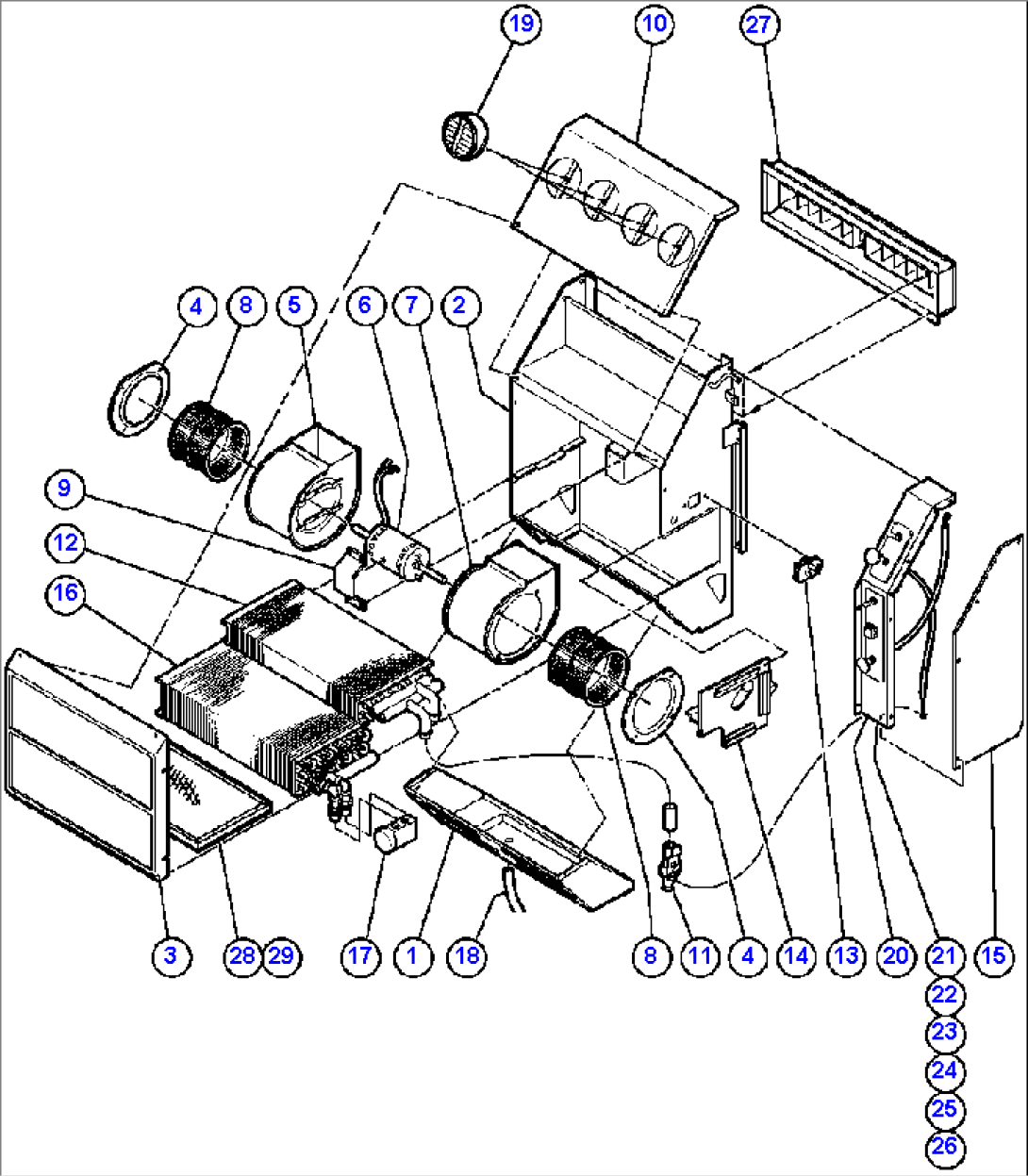

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VJ6819 | COVER, AIR INTAKE | ||
| 2 | VE4410 | HOUSING ASSEMBLY | ||
| 3 | VE4411 | COVER, CORE - FRONT | ||
| 4 | VE4412 | RING, ENTRY | ||
| 5 | VE2045 | BLOWER ASSEMBLY - L.H. | ||
| 6 | VE2044 | MOTOR - 24V | ||
| 7 | VE2043 | BLOWER ASSEMBLY - R.H. | ||
| 8 | VE2046 | WHEEL, BLOWER | ||
| 9 | RETAINER - MOTOR (1) | |||
| 10 | VE4413 | PANEL ASSEMBLY - TOP | ||
| 11 | VE2047 | VALVE, WATER | ||
| 12 | VE2048 | CORE, HEATER | ||
| 13 | VE0030 | RESISTOR | ||
| 14 | VE4414 | COVER ASSEMBLY - SIDE | ||
| 15 | VE4415 | PLATE - SIDE | ||
| 16 | VE2050 | EVAPORATOR ASSEMBLY | ||
| 17 | VJ8296 | VALVE, EXPANSION | ||
| 18 | HOSE, DRAIN (1) | |||
| 19 | VE2052 | DIFFUSER, AIR | ||
| 20 | VE2053 | PANEL, CONTROL | ||
| 21 | VE2054 | SWITCH, TOGGLE (2) | ||
| 22 | VE2055 | CABLE, CONTROL (2) | ||
| 23 | NUT, BEZEL (1) (2) | |||
| 24 | VE2056 | SWITCH, TOGGLE (2) | ||
| 25 | VE2057 | THERMOSTAT (2) | ||
| 26 | VE2058 | KNOB (2) | ||
| 27 | VE2059 | LOUVER ASSEMBLY | ||
| 27 | HOUSING, LOUVER (1) | |||
| 28 | VE2898 | FILTER | ||
| 29 | NOT USED IN THIS APPLICATION | |||
| NS|31 | NOTE: (1) NOT SERVICED SEPERATELY. | |||
| NS|32 | (2) SUPPLIED WITH VE2053 |
