| Item | Part No. | Part Name | Qty | Serial No. |

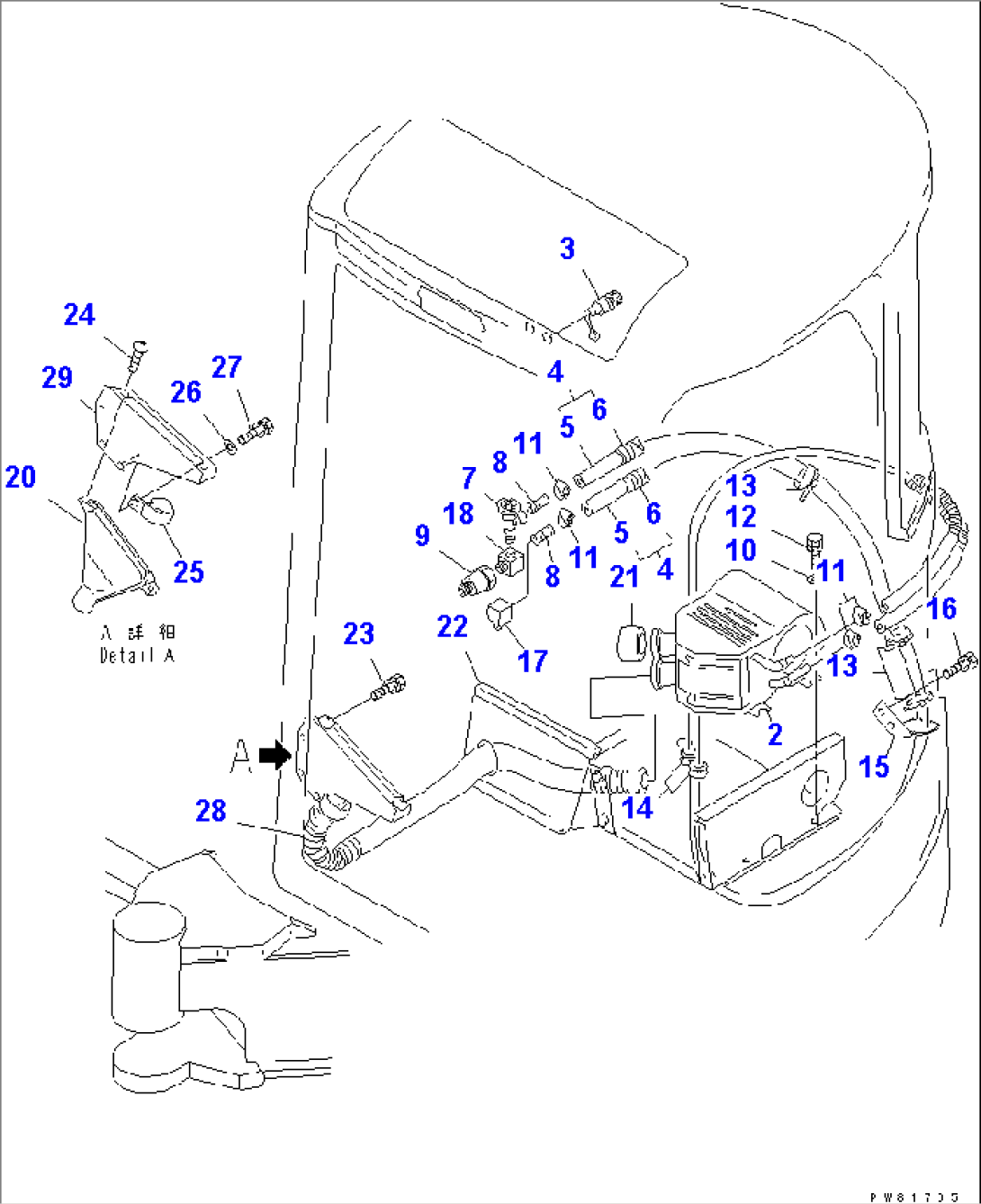

| YM772423-17600 | HEATER ASS'Y | 20001- | ||
| 2 | YM172312-17600 | HEATER | 20001- | |
| 3 | YM172162-17610 | SWITCH,HEATER | 20001- | |
| 4 | YM172423-17610 | HOSE,HEATER | 20001- | |
| 5 | YM172423-17630 | HOSE,HEATER | 20001- | |
| 6 | YM172423-17620 | TUBE | 20001- | |
| 7 | YM172124-17630 | VALVE | 20001- | |
| 8 | YM172124-17640 | JOINT | 20001- | |
| 9 | YM23392-030000 | JOINT | 20001- | |
| 10 | YM22137-100000 | WASHER | 20001- | |
| 11 | YM23000-022000 | CLAMP | 20001- | |
| 12 | YM26013-100202 | BOLT | 20001- | |
| 13 | YM933152-09280 | BAND | 20001- | |
| 14 | YM933171-15680 | GROMMET | 20001- | |
| 15 | YM172165-18770 | GUIDE,HOSE | 20001- | |
| 16 | YM26013-080252 | BOLT | 20001- | |
| 17 | YM172168-79520 | ELBOW | 20001- | |
| 18 | YM172135-76100 | ELBOW | 20001- | |
| YM772164-17701 | DEFROSTER ASS'Y | 20001- | ||
| 20 | YM172120-17710 | NOZZLE,DEFROSTER | 20001- | |
| 21 | YM172122-17730 | COVER,DEFROSTER | 20001- | |
| 22 | YM172164-61560 | COVER | 20001- | |
| 23 | YM26013-080202 | BOLT | 20001- | |
| 24 | YM26557-050102 | SCREW | 20001- | |
| 25 | YM172158-78250 | CLAMP | 20001- | |
| 26 | YM22137-100000 | WASHER | 20001- | |
| 27 | YM26013-100202 | BOLT | 20001- | |
| 28 | YM172164-17640 | HOSE | 20001- | |
| 29 | YM172164-17701 | BRACKET | 20001- |
