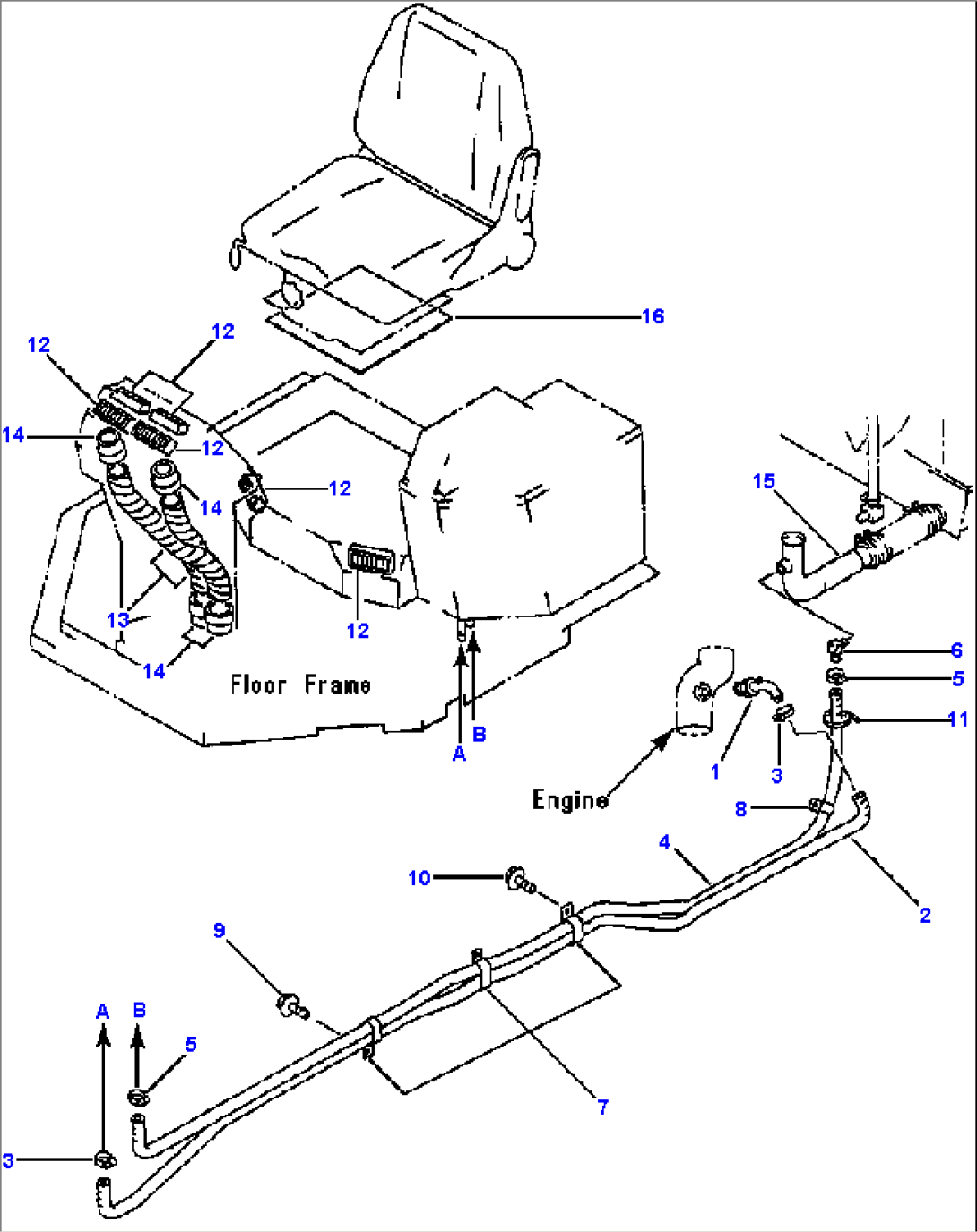

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-07-11890 | ELBOW | ||
| 2 | 09483-10519 | HOSE, ENGINE TO HEATER CORE | ||
| 3 | 07281-00259 | CLAMP, HOSE | ||
| 4 | 09483-10531 | HOSE, HEATER CORE TO RADIATOR | ||
| 5 | 07281-00259 | CLAMP, HOSE | ||
| 6 | 6137-81-3221 | ELBOW | ||
| 7 | 421-07-11550 | CLIP | ||
| 8 | 08036-02514 | CLIP | ||
| 9 | 01435-01020 | BOLT | ||
| 10 | 01435-01014 | BOLT | ||
| 11 | 08034-00834 | STRAP, TIE | ||
| 12 | 421-07-12512 | GRILLE ASSEMBLY | ||
| 13 | 421-07-12831 | HOSE | ||
| 14 | 421-07-12810 | CONNECTOR | ||
| 15 | 425-03-12162 | TUBE, AT RADIATOR | ||
| 16 | 423-07-11110 | INSULATOR, UNDER SEAT | ||
| F1 - USED ON MACHINES EQUIPPED WITH AIR CONDITIONER. | ||||
