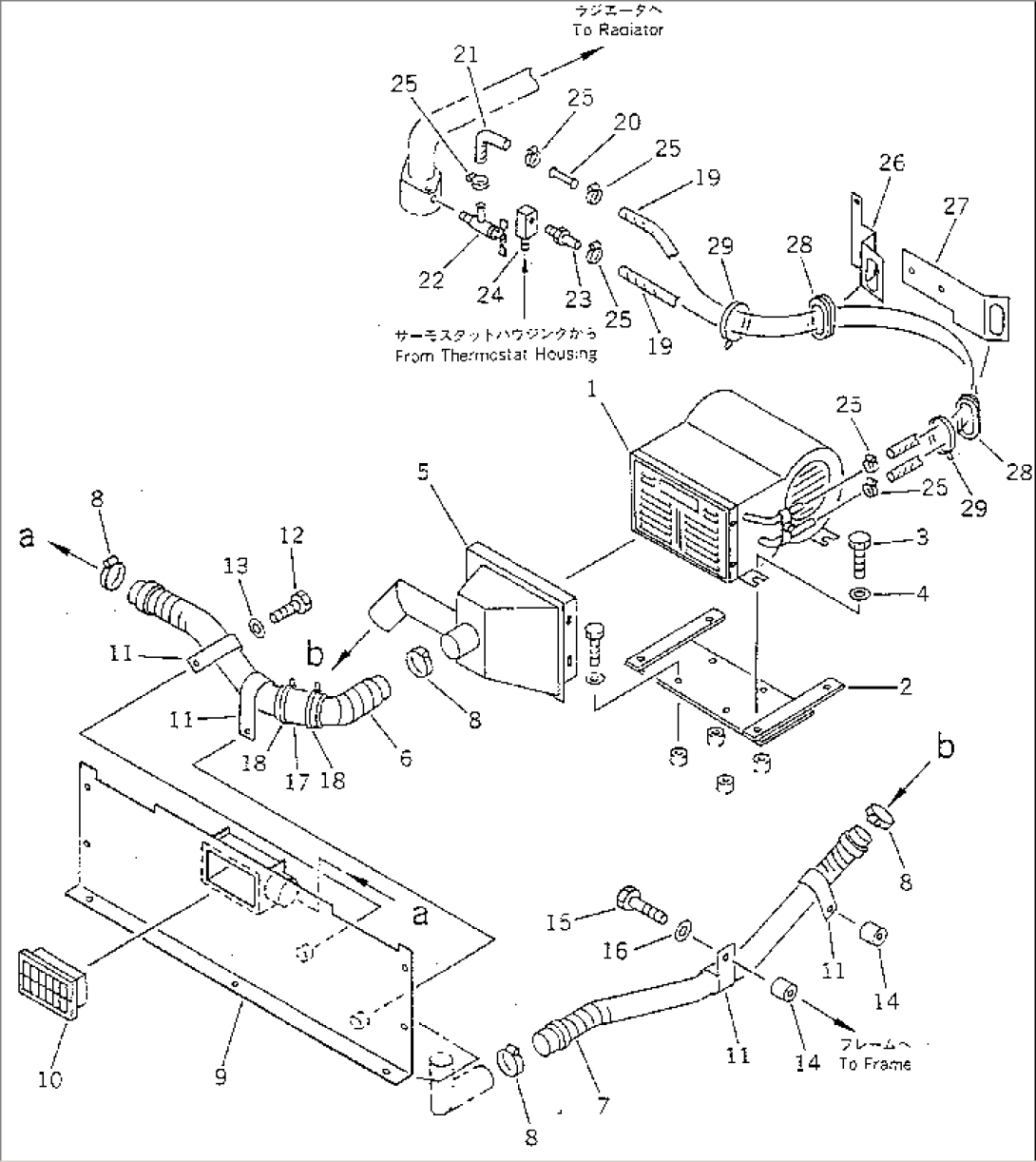

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20S-06-21460 | HEATER ASS'Y | 9001- | |
| 2 | 363-Z11-1320 | BRACKET | 9001- | |
| 3 | 01010-51016 | BOLT | 9001- | |
| 4 | 01643-31032 | WASHER | 9001- | |
| 5 | 363-Z11-1310 | COVER | 9001- | |
| 6 | 09485-04507 | HOSE,AIR | 9001- | |
| 7 | 09485-04508 | HOSE,AIR | 9001- | |
| 8 | 07281-00489 | CLAMP | 9001- | |
| 9 | 363-Z11-1360 | COVER | 9001- | |
| 10 | 142-979-3221 | GRILLE ASS'Y | 9001- | |
| 11 | 176-91-11690 | CLIP | 9001- | |
| 12 | 01010-51016 | BOLT | 9001- | |
| 13 | 01643-31032 | WASHER | 9001- | |
| 14 | 195-979-3510 | SPACER | 9001- | |
| 15 | 01010-50845 | BOLT | 9001- | |
| 16 | 01643-30823 | WASHER | 9001- | |
| 17 | 203-62-41150 | COVER | 9001- | |
| 18 | 08034-00823 | BAND | 9001- | |
| 19 | 09483-00411 | HOSE,WATER | 9001- | |
| 20 | 09484-00450 | CONNECTOR | 9001- | |
| 21 | 09483-20450 | HOSE | 9001- | |
| 22 | 203-977-4130 | VALVE | 9001- | |
| 23 | 6141-61-6360 | NIPPLE | 9001- | |
| 24 | 363-Z11-1330 | NIPPLE | 9001- | |
| 25 | 09480-10100 | CLAMP | 9001- | |
| 26 | 363-Z11-1340 | PLATE | 9001- | |
| 27 | 363-Z11-1350 | PLATE | 9001- | |
| 28 | 120-06-24110 | GROMMET | 9001- | |
| 29 | 08034-00414 | BAND | 9001- |
