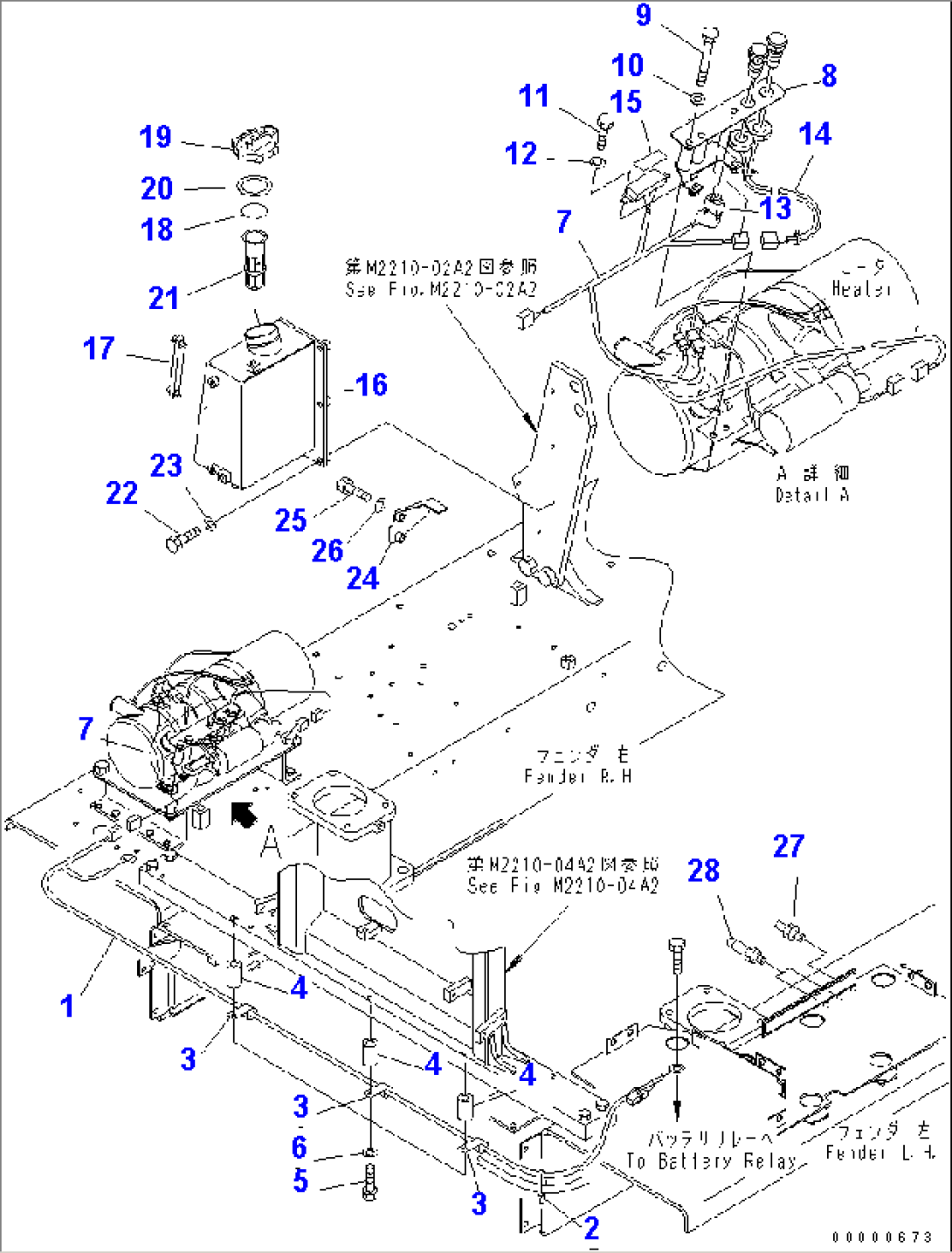

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17M-06-49811 | WIRING HARNESS | 25001- | |
| 1 | 22U-06-11270 | FUSIBLE LINK, 65A | 25001- | |
| 2 | 08034-20536 | BAND | 25001- | |
| 3 | 04434-51712 | CLIP | 25001- | |
| 4 | 205-30-62650 | COLLAR | 25001- | |
| 5 | 01010-81250 | BOLT | 25001- | |
| 6 | 01643-31232 | WASHER | 25001- | |
| 7 | 17M-06-49822 | WIRING HARNESS | 25001- | |
| 7 | 20T-06-71560 | FUSE BOX | 25001- | |
| 7 | 08041-00500 | FUSE, 5A | 25001- | |
| 7 | 08041-02500 | FUSE, 25A | 25001- | |
| 8 | 17M-01-49611 | BRACKET | 25001- | |
| 9 | 01010-80875 | BOLT | 25001- | |
| 10 | 01643-30823 | WASHER | 25001- | |
| 11 | 01010-80820 | BOLT | 25001- | |
| 12 | 01643-30823 | WASHER | 25001- | |
| 13 | 17M-06-49840 | SWITCH | 25001- | |
| 14 | 17M-06-49831 | LAMP ASS'Y | 25001- | |
| 15 | 17M-98-49120 | PLATE | 25001- | |
| 16 | 17M-01-49311 | TANK | 25001- | |
| 17 | 195-03-61550 | GAUGE | 25001- | |
| 18 | 07057-03266 | RING | 25001- | |
| 19 | 07091-10900 | CAP | 25001- | |
| 20 | 07050-20902 | GASKET | 25001- | |
| 21 | 07056-16415 | STRAINER | 25001- | |
| 22 | 01010-81250 | BOLT | 25101- | |
| 22 | 01010-81230 | BOLT | 25001-25100 | |
| 23 | 01643-31232 | WASHER | 25001- | |
| 24 | 17M-61-49320 | COVER | 25001- | |
| 25 | 01010-81035 | BOLT | 25001- | |
| 26 | 01643-31032 | WASHER | 25001- | |
| 27 | 07043-70415 | PLUG | 25179- | |
| 27 | 145-Z79-5610 | JOINT | 25001-25178 | |
| 28 | 113-899-7970 | JOINT | 25001-25178 |
