| Item | Part No. | Part Name | Qty | Serial No. |
| (425-07-23100) | HEATER KIT | 50001- | ||
| 425-07-23110 | HEATER UNIT | 50001- | ||

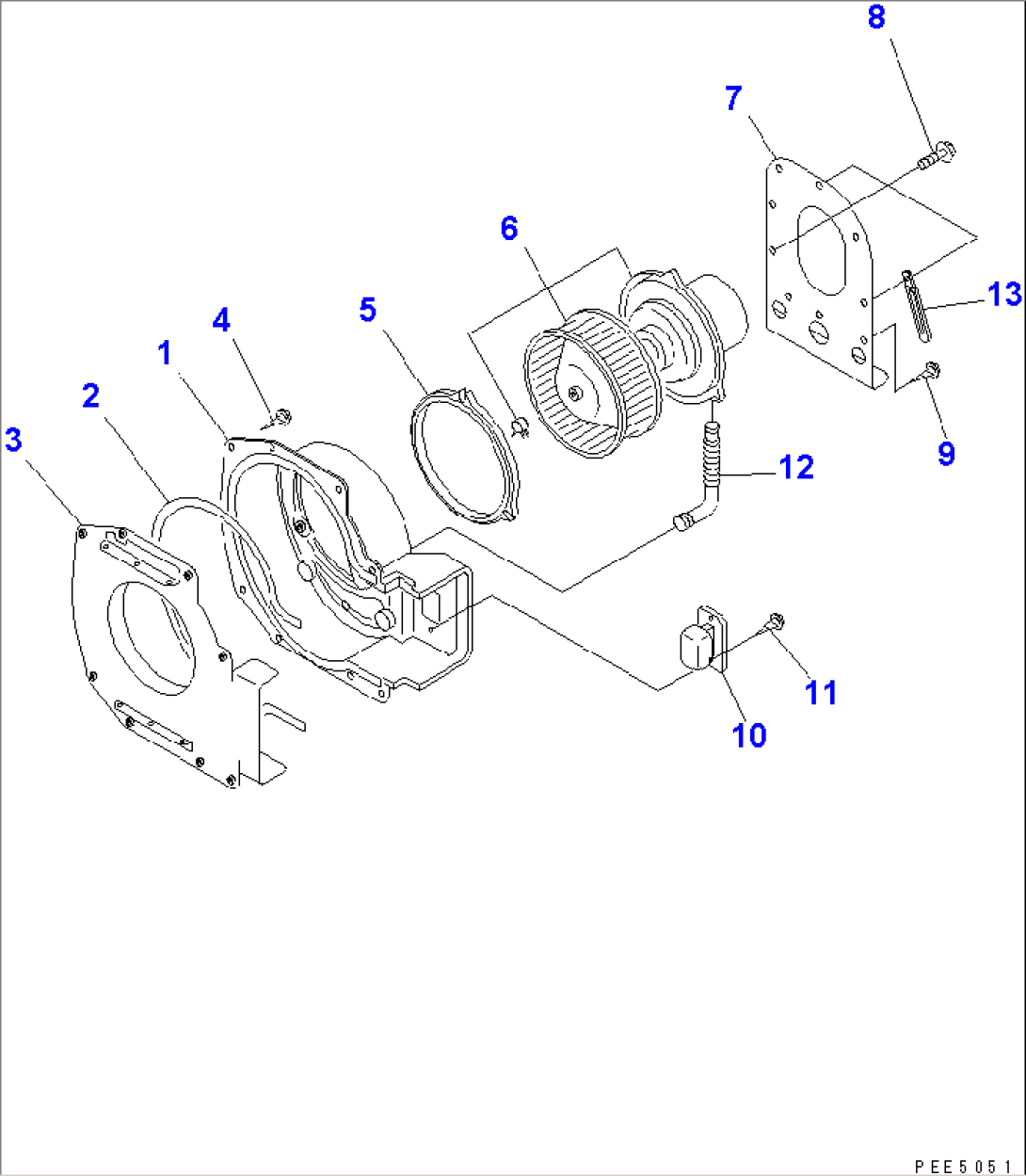

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0710-05A1 AND K0710-06A1. | ||||
| ND113140-0120 | UNIT ASS'Y,HEATER | 50001- | ||
| 1 | ND245420-4200 | CASE ASS'Y | 50001- | |
| 2 | ND116730-0520 | DAMPER ASS'Y | 50001- | |
| 3 | ND116730-0530 | DAMPER ASS'Y | 50001- | |
| 4 | ND245420-0210 | CASE ASS'Y | 50001- | |
| 5 | ND116452-0561 | CASE,HEATER | 50001- | |
| 6 | ND949001-1730 | SCREW,TAPPING | 50001- | |
| 7 | ND116410-9680 | UNIT ASS'Y,RADIATOR | 50001- | |
| 8 | ND116427-5540 | PIPE | 50001- | |
| 9 | ND7052-200600 | HOSE,WATER | 50001- | |
| 10 | ND949351-0720 | CLAMP,HOSE | 50001- | |
| 11 | ND113600-9260 | VALVE ASS'Y,WATER | 50001- | |
| 12 | ND116427-2320 | PIPE | 50001- | |
| 13 | ND017231-1400 | CLAMP | 50001- | |
| 14 | ND246440-5200 | WIRING HARNESS,WIRE | 50001- | |
| 15 | ND017732-3050 | LEVER,CONTROL | 50001- | |
| 16 | ND91370-03081 | SCREW,WASHER | 50001- | |
| 17 | ND017732-3041 | LEVER,CONTROL | 50001- | |
| 18 | ND017732-3060 | LEVER,CONTROL | 50001- | |
| 19 | ND146625-5040 | BUSHING | 50001- | |
| 20 | ND116662-3780 | SHAFT | 50001- | |
| 21 | ND246690-2930 | CLAMP | 50001- | |
| 22 | ND116662-0590 | SHAFT | 50001- | |
| 23 | ND063700-6580 | SERVO MOTOR ASS'Y | 50001- | |
| 24 | ND146625-2630 | BUSHING | 50001- | |
| 25 | ND90930-06141 | SCREW,TAPPING | 50001- | |
| 26 | ND146668-6710 | PACKING | 50001- | |
| 27 | ND246690-6740 | CLAMP | 50001- | |
| 28 | ND017773-0140 | CLIP | 50001- | |
| 29 | ND017773-0180 | CLIP | 50001- | |
| 30 | ND949008-0780 | SCREW,TAPPING | 50001- | |
| 31 | ND017660-3490 | BRACKET | 50001- | |
| 32 | ND90930-05121 | SCREW,TAPPING | 50001- | |
| 33 | ND146984-4080 | GROMMET | 50001- | |
| 34 | ND145840-1210 | GUIDE,AIR | 50001- | |
| 35 | ND146625-7620 | BUSHING | 50001- |
