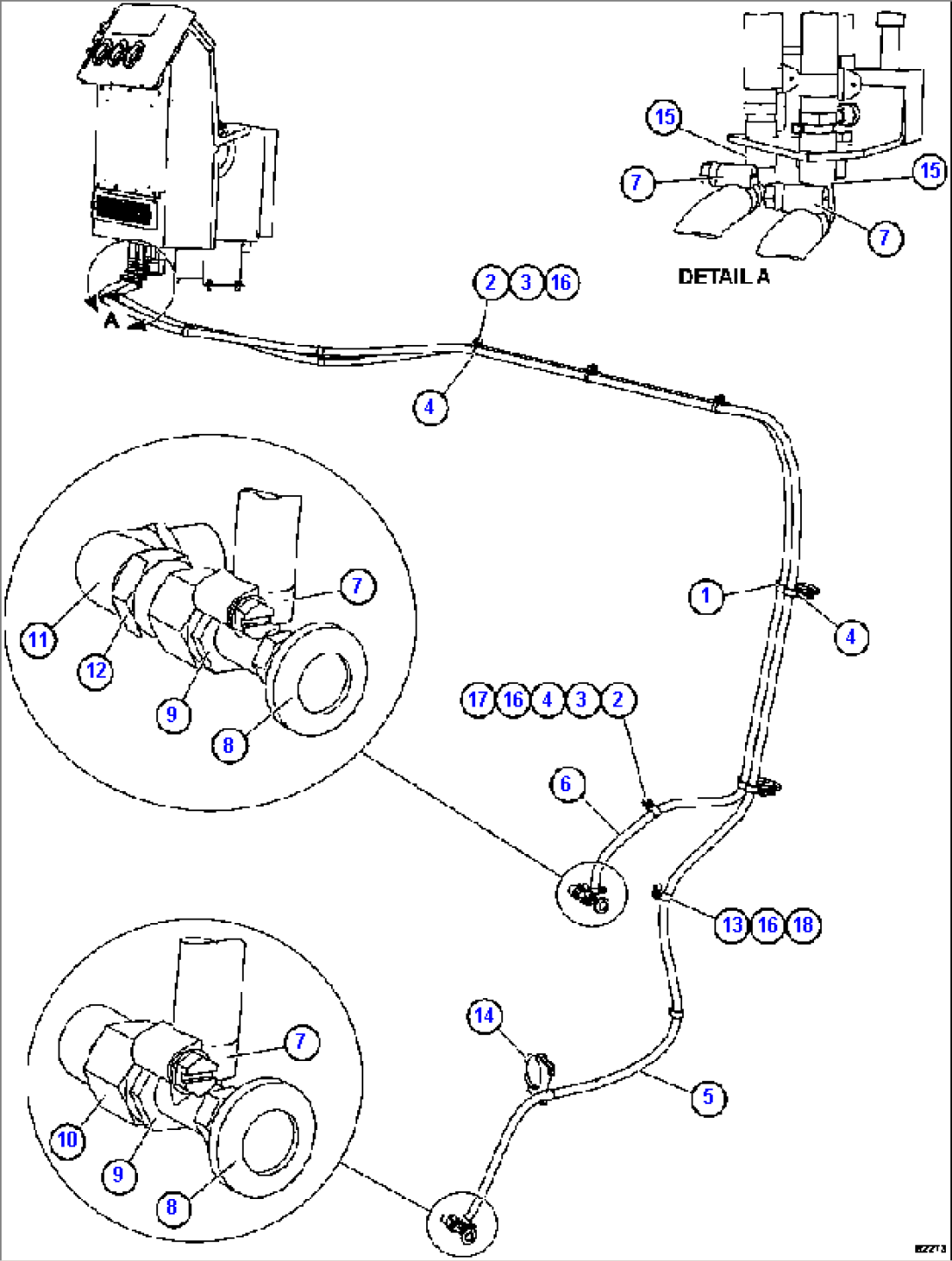

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WA2237 | CLAMP | ||
| 2 | MM0461 | FLAT WASHER - M10 | ||
| 3 | MM0178 | NUT - M10 X 1.50 | ||
| 4 | WB3093 | CLAMP, CUSHIONED - 1" | ||
| 5 | EL0128 | HOSE, HEATER (RETURN) | ||
| 6 | EL0129 | HOSE, HEATER (SUPPLY) | ||
| 7 | HC0908 | CLAMP, WORM DRIVE | ||
| 8 | VN6280 | VALVE, SHUT-OFF | ||
| 9 | SD5209 | BUSHING, PIPE - 3/4" X 5/8" | ||
| 10 | WB1192 | ADAPTER | ||
| 11 | WB1063 | ADAPTER, METRIC - 90 DEG | ||
| 12 | WB1141 | ADAPTER, PIPE TO JIC | ||
| 13 | WB3097 | CLAMP, CUSHIONED - 1/2" | ||
| 14 | VD6174 | CLAMP, U-BOLT | ||
| 15 | TV2642 | FITTING, ELBOW | ||
| 16 | MM0471 | LOCKWASHER - M10 | ||
| 17 | MM0050 | CAPSCREW - M10 X 1.50 X 35 | ||
| 18 | MM0042 | CAPSCREW - M10 X 1.50 X 25 |
