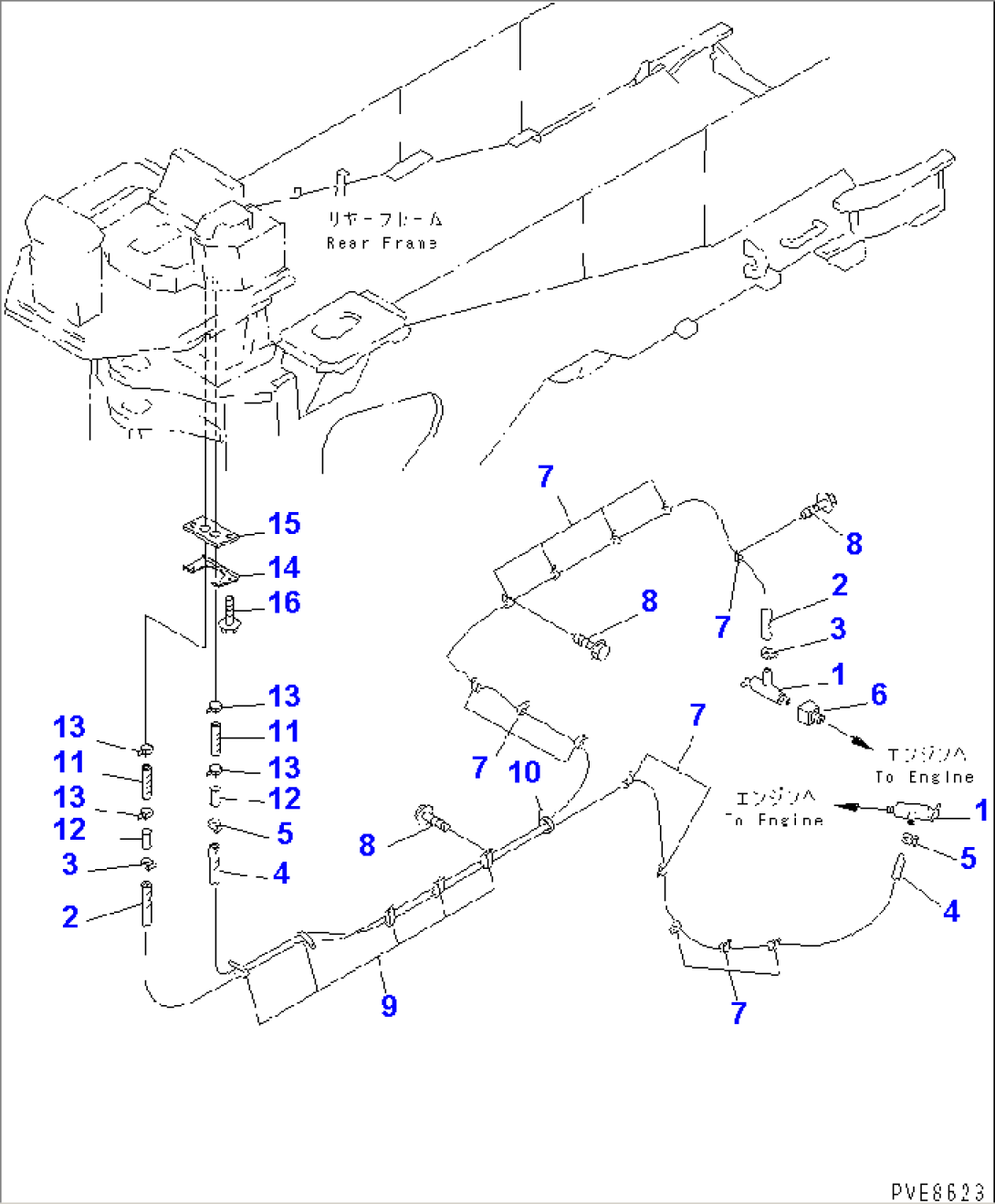

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09482-10000 | VALVE | 50001- | |
| 2 | 09483-10561 | HOSE | 50001- | |
| 3 | 423-07-23240 | CLIP,HOSE | 50001- | |
| 4 | 09483-10550 | HOSE | 50001- | |
| 5 | 423-07-23240 | CLIP,HOSE | 50001- | |
| 6 | 427-07-21110 | JOINT | 50001- | |
| 7 | 04434-52512 | CLIP | 50001- | |
| 8 | 01435-01016 | BOLT | 50001- | |
| 9 | 421-07-11550 | CLIP | 50001- | |
| 10 | 08034-20519 | BAND | 50001- | |
| 11 | 09483-10504 | HOSE | 50001-50024 | |
| 12 | 09484-00560 | CONNECTOR | 50001-50024 | |
| 13 | 423-07-23240 | CLIP,HOSE | 50001-50024 | |
| 14 | 421-07-23950 | PLATE | 50001-50024 | |
| 15 | 421-07-23960 | SHEET | 50001-50024 | |
| 16 | 01435-00610 | BOLT | 50001-50024 |
