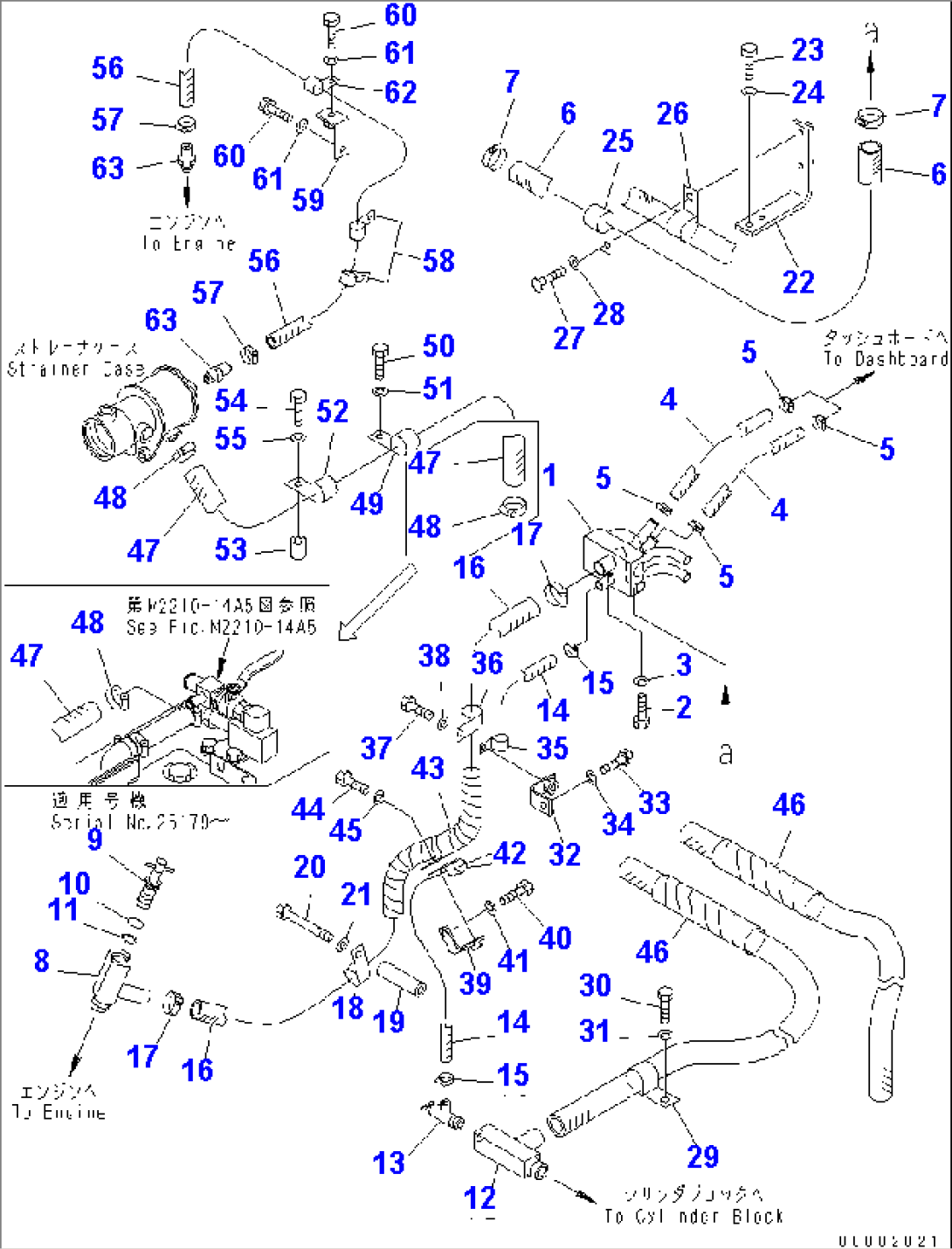

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17M-01-49352 | BLOCK | 25001-@ | |
| 2 | 01010-81225 | BOLT | 25001-@ | |
| 3 | 01643-31232 | WASHER | 25001-@ | |
| 4 | 09483-10502 | HOSE | 25001-@ | |
| 5 | 09479-02400 | CLAMP | 25001-@ | |
| 6 | 09483-17130 | HOSE | 25001-@ | |
| 7 | 07289-00035 | CLAMP | 25001-@ | |
| 17M-01-49370 | VALVE | 25001-@ | ||
| 8 | \6\ | BODY | 25001-@ | |
| 9 | 206-979-4430 | VALVE | 25001-@ | |
| 10 | 07000-43022 | O-RING | 25001-@ | |
| 11 | 04065-03012 | RING | 25001-@ | |
| 12 | 17M-01-49360 | TEE | 25001-@ | |
| 13 | 09482-10000 | VALVE | 25001-@ | |
| 14 | 09483-10511 | HOSE | 25001-@ | |
| 15 | 09479-02400 | CLAMP | 25001-@ | |
| 16 | 17M-911-4910 | HOSE | 25001-@ | |
| 17 | 07289-00035 | CLAMP | 25001-@ | |
| 18 | 04434-53411 | CLIP | 25001-@ | |
| 19 | 561-15-55910 | SPACER | 25001-@ | |
| 20 | 01011-81040 | BOLT | 25001-@ | |
| 21 | 01643-31032 | WASHER | 25001-@ | |
| 22 | 17M-01-49330 | BRACKET | 25001-@ | |
| 23 | 01010-81035 | BOLT | 25001-@ | |
| 24 | 01643-31032 | WASHER | 25001-@ | |
| 25 | 04434-53411 | CLIP | 25001-@ | |
| 26 | 209-62-39620 | CLIP | 25001-@ | |
| 27 | 01010-81030 | BOLT | 25001-@ | |
| 28 | 01643-31032 | WASHER | 25001-@ | |
| 29 | 209-62-39620 | CLIP | 25001-@ | |
| 30 | 01010-81025 | BOLT | 25001-@ | |
| 31 | 01643-31032 | WASHER | 25001-@ | |
| 32 | 175-804-3260 | PLATE | 25001-@ | |
| 33 | 01010-81035 | BOLT | 25001-@ | |
| 34 | 01643-31032 | WASHER | 25001-@ | |
| 35 | 04434-52310 | CLIP | 25001-@ | |
| 36 | 04434-53411 | CLIP | 25001-@ | |
| 37 | 01010-81025 | BOLT | 25001-@ | |
| 38 | 01643-31032 | WASHER | 25001-@ | |
| 39 | 17A-911-1651 | BRACKET | 25001-@ | |
| 40 | 01010-81035 | BOLT | 25001-@ | |
| 41 | 01643-31032 | WASHER | 25001-@ | |
| 42 | 04434-52310 | CLIP | 25001-@ | |
| 43 | 04434-53411 | CLIP | 25001-@ | |
| 44 | 01010-81030 | BOLT | 25001-@ | |
| 45 | 01643-31032 | WASHER | 25001-@ | |
| 46 | 08210-01803 | SPIRAL TUBE | 25001-25001 | |
| 47 | 09483-10522 | HOSE | 25179-@ | |
| 47 | 09483-10520 | HOSE | 25001-25178 | |
| 48 | 09479-02400 | CLAMP | 25001-@ | |
| 49 | 04434-52310 | CLIP | 25001-@ | |
| 50 | 01010-81025 | BOLT | 25001-@ | |
| 51 | 01643-31032 | WASHER | 25001-@ | |
| 52 | 04434-52310 | CLIP | 25001-@ | |
| 53 | 195-01-16140 | SPACER | 25001-@ | |
| 54 | 01010-81060 | BOLT | 25001-@ | |
| 55 | 01643-31032 | WASHER | 25001-@ | |
| 56 | 09483-10519 | HOSE | 25001-@ | |
| 57 | 09479-02400 | CLAMP | 25001-@ | |
| 58 | 04434-52310 | CLIP | 25001-@ | |
| 59 | 207-979-6180 | BRACKET | 25001-@ | |
| 60 | 01010-81225 | BOLT | 25001-@ | |
| 61 | 01643-31232 | WASHER | 25001-@ | |
| 62 | 04434-52312 | CLIP | 25001-@ | |
| 63 | 566-07-41540 | CONNECTOR | 25001-@ |
