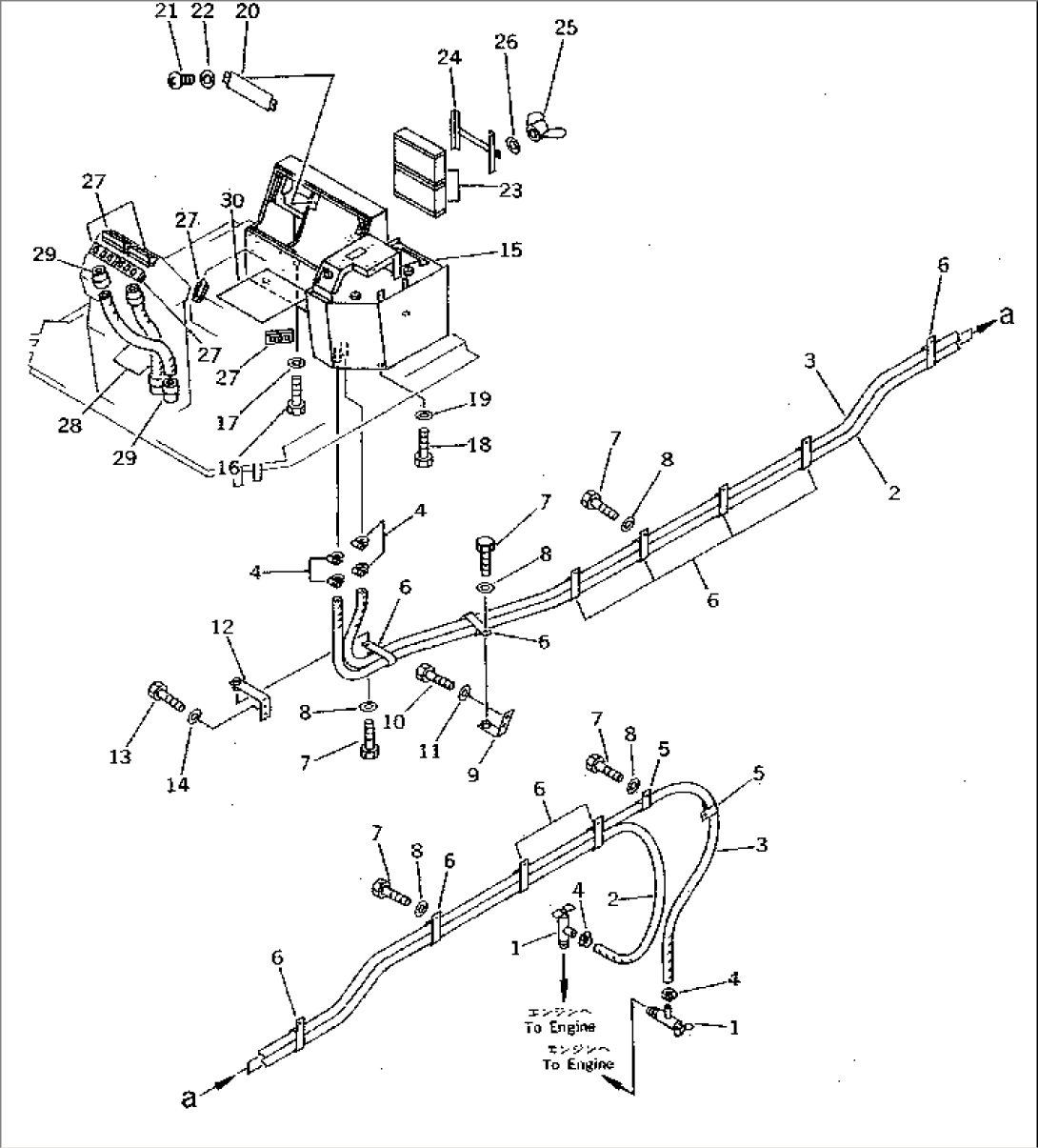

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09482-10000 | VALVE | 10001-10049 | |
| 2 | 09483-00553 | HOSE | 10001-10049 | |
| 3 | 09483-00556 | HOSE | 10001-10049 | |
| 4 | 07281-00259 | CLAMP | 10001-10049 | |
| 5 | 08036-02514 | CLIP | 10001-10049 | |
| 6 | 421-07-11760 | CLIP | 10001-10049 | |
| 7 | 01010-51020 | BOLT | 10001-10049 | |
| 8 | 01643-31032 | WASHER | 10001-10049 | |
| 9 | 427-07-11250 | BRACKET | 10001-10049 | |
| 10 | 01010-51020 | BOLT | 10001-10049 | |
| 11 | 01643-31032 | WASHER | 10001-10049 | |
| 12 | 427-07-11290 | BRACKET | 10001-10049 | |
| 13 | 01010-51225 | BOLT | 10001-10049 | |
| 14 | 01643-31232 | WASHER | 10001-10049 | |
| 15 | (426-07-13100) | CAR HEATER ASS'Y,(SEE FIG.5585) | 10001-10049 | |
| 16 | 01010-51225 | BOLT | 10001-10049 | |
| 17 | 01643-31232 | WASHER | 10001-10049 | |
| 18 | 01010-51265 | BOLT | 10001-10049 | |
| 19 | 01643-31232 | WASHER | 10001-10049 | |
| 20 | 421-07-12320 | FILTER | 10001-10049 | |
| 21 | 01220-40812 | SCREW | 10001-10049 | |
| 22 | 01643-30823 | WASHER | 10001-10049 | |
| 23 | 421-07-12312 | FILTER | 10001-10049 | |
| 24 | 426-07-11310 | HOLDER | 10001-10049 | |
| 25 | 01540-20840 | NUT,WING | 10001-10049 | |
| 26 | 01643-30823 | WASHER | 10001-10049 | |
| 27 | 421-07-12512 | GRILLE ASS'Y | 10001-10049 | |
| 28 | 421-07-12831 | HOSE | 10001-10049 | |
| 29 | 421-07-12810 | CONNECTOR | 10001-10049 | |
| 30 | 423-07-11110 | INSULATOR | 10001-10049 |
