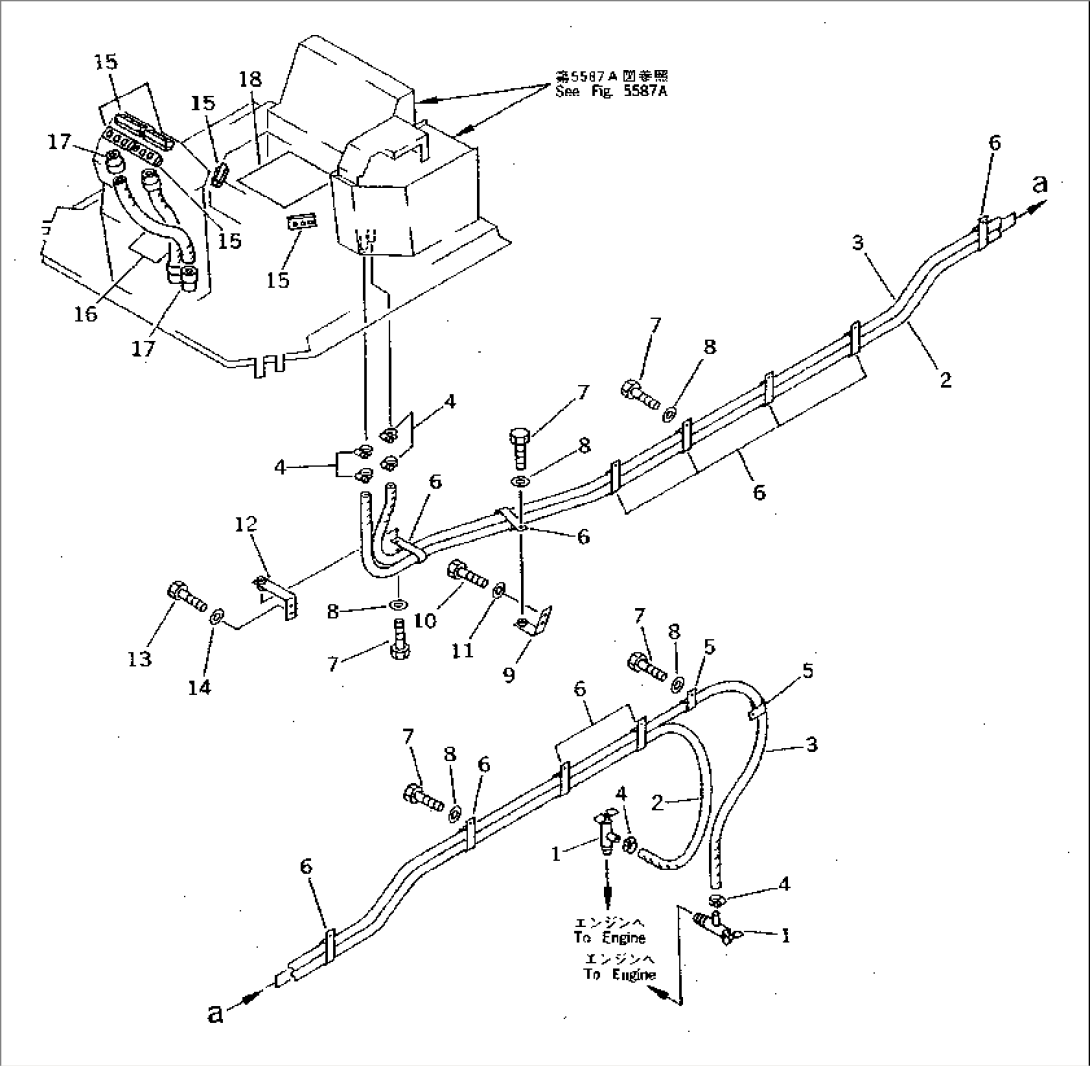

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09482-10000 | VALVE | 10050-@ | |
| 2 | 09483-00553 | HOSE | 10050-10499 | |
| 3 | 09483-00556 | HOSE | 10050-10499 | |
| 4 | 07281-00259 | CLAMP | 10050-10499 | |
| 5 | 08036-02514 | CLIP | 10050-10499 | |
| 6 | 421-07-11760 | CLIP | 10050-10499 | |
| 7 | 01010-51020 | BOLT | 10050-10499 | |
| 8 | 01643-31032 | WASHER | 10050-10499 | |
| 9 | 427-07-11250 | BRACKET | 10050-@ | |
| 10 | 01010-51020 | BOLT | 10050-@ | |
| 11 | 01643-31032 | WASHER | 10050-@ | |
| 12 | 427-07-11290 | BRACKET | 10050-@ | |
| 13 | 01010-51225 | BOLT | 10050-@ | |
| 14 | 01643-31232 | WASHER | 10050-@ | |
| 15 | 421-07-12512 | GRILLE ASS'Y | 10050-@ | |
| 16 | 421-07-12831 | HOSE | 10050-@ | |
| 17 | 421-07-12810 | CONNECTOR | 10050-@ | |
| 18 | 423-07-11110 | INSULATOR | 10050-@ |
