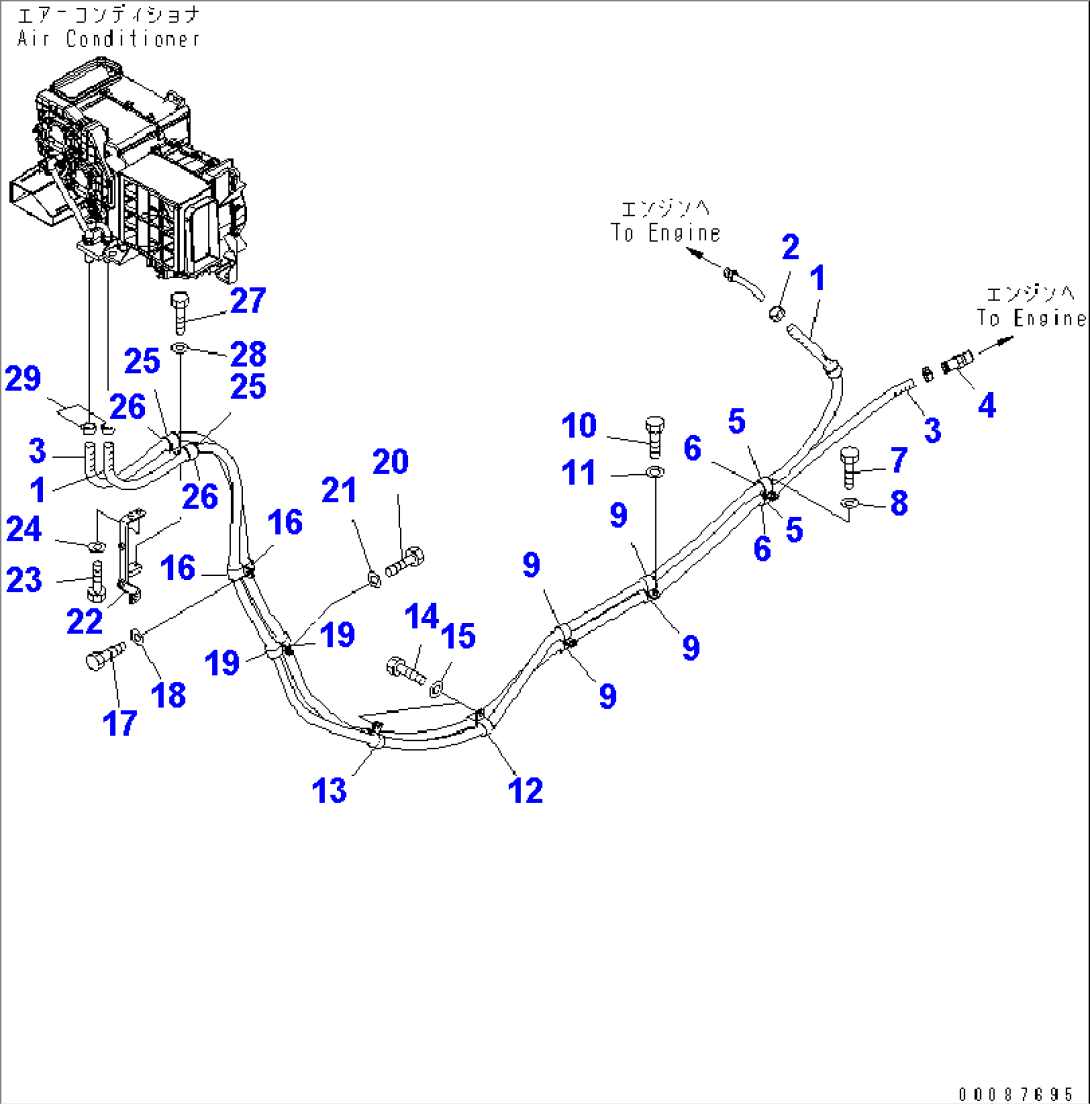

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-10540 | HOSE | 55001- | |
| 2 | 09479-02400 | CLAMP | 55001- | |
| 3 | 09483-10539 | HOSE | 55001- | |
| 4 | 09479-02400 | CLAMP | 55001- | |
| 5 | 04434-53211 | CLIP | 55001- | |
| 6 | 07095-20523 | CUSHION | 55001- | |
| 7 | 01010-81025 | BOLT | 55001- | |
| 8 | 01643-31032 | WASHER | 55001- | |
| 9 | 04434-52511 | CLIP | 55001- | |
| 10 | 01010-81020 | BOLT | 55001- | |
| 11 | 01643-31032 | WASHER | 55001- | |
| 12 | 04434-52511 | CLIP | 55001- | |
| 13 | 04434-52511 | CLIP | 55001- | |
| 14 | 01010-81020 | BOLT | 55001- | |
| 15 | 01643-31032 | WASHER | 55001- | |
| 16 | 04434-52511 | CLIP | 55001- | |
| 17 | 01010-81020 | BOLT | 55001- | |
| 18 | 01643-31032 | WASHER | 55001- | |
| 19 | 04434-52511 | CLIP | 55001- | |
| 20 | 01010-81025 | BOLT | 55001- | |
| 21 | 01643-31032 | WASHER | 55001- | |
| 22 | 426-07-32512 | BRACKET | 55001- | |
| 23 | 01010-81020 | BOLT | 55001- | |
| 24 | 01643-31032 | WASHER | 55001- | |
| 25 | 04434-53211 | CLIP | 55001- | |
| 26 | 07095-20523 | CUSHION | 55001- | |
| 27 | 01010-81025 | BOLT | 55001- | |
| 28 | 01643-31032 | WASHER | 55001- | |
| 29 | 09479-02400 | CLAMP | 55001- |
