| Item | Part No. | Part Name | Qty | Serial No. |

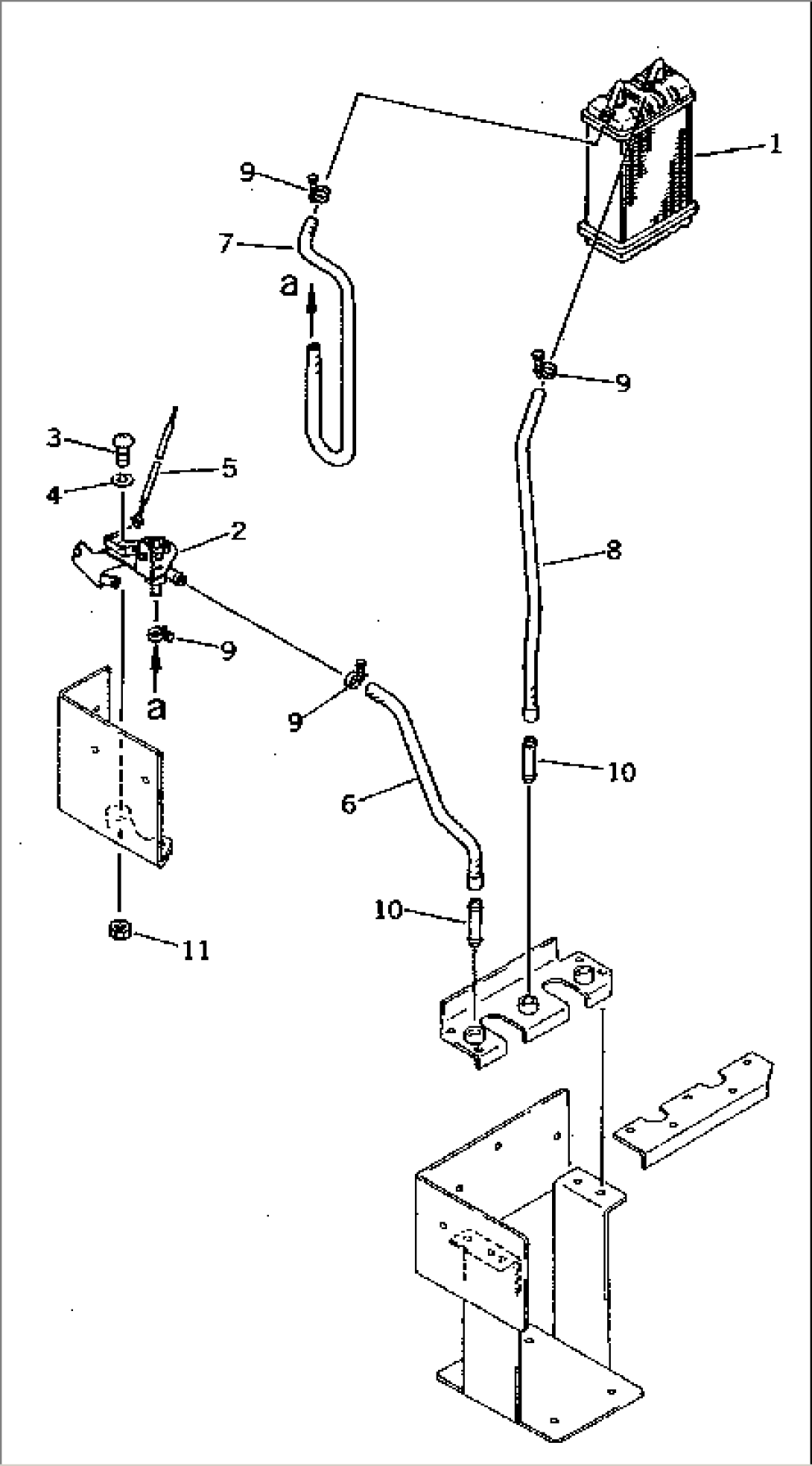

| (425-07-13200) | HEATER ASS'Y | 10001-. | ||
| 1 | 425-07-11460 | HEATER UNIT ASS'Y | 10001-. | |
| 2 | 425-07-11470 | VALVE,WATER | 10001-. | |
| 3 | 01220-40510 | SCREW | 10001-. | |
| 4 | 01601-20513 | WASHER,SPRING | 10001-. | |
| 5 | 425-07-13120 | WIRE | 10001-. | |
| 6 | 425-07-13140 | HOSE | 10001-. | |
| 7 | 425-07-13150 | HOSE | 10001-. | |
| 8 | 425-07-13160 | HOSE | 10001-. | |
| 9 | 425-07-11650 | CLAMP | 10001-. | |
| 10 | 425-07-11590 | CONNECTOR | 10001-. | |
| 11 | 01580-10504 | NUT | 10001-. |
