| Item | Part No. | Part Name | Qty | Serial No. |
| (425-07-23110) | HEATER UNIT | 70001- | ||

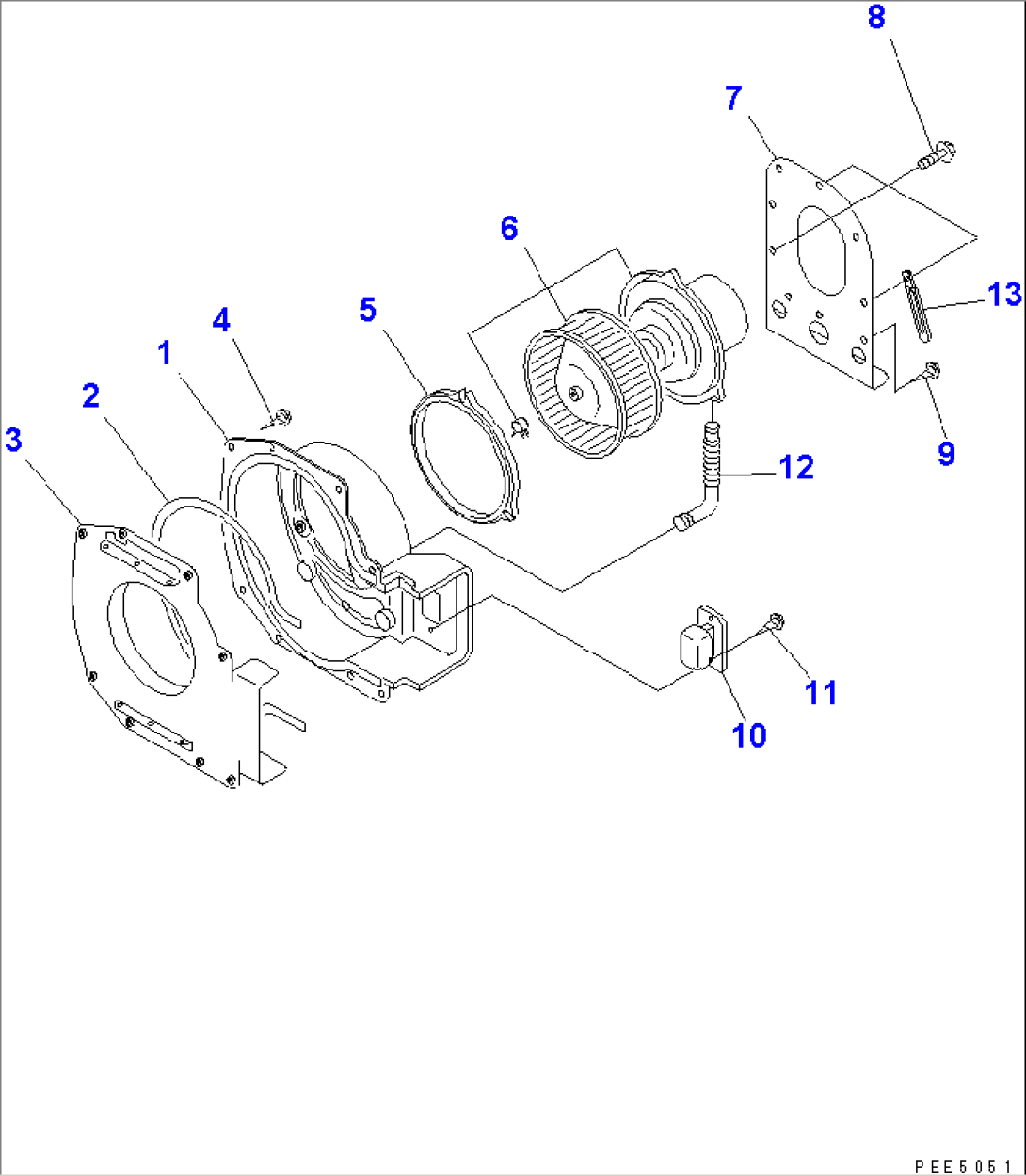

| THIS ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-81A1 AND K0210-82A1. | ||||
| ND116300-4630 | BLOWER ASS'Y | 70001- | ||
| 1 | ND116251-9192 | CASE | 70001- | |
| 2 | ND146638-9460 | PACKING | 70001- | |
| 3 | ND116290-0790 | SUB ASS'Y | 70001- | |
| 4 | ND949001-2690 | SCREW,TAPPING | 70001- | |
| 5 | ND146622-6880 | PACKING | 70001- | |
| 6 | ND116340-2360 | MOTOR ASS'Y,(WITH FAN) | 70001- | |
| ND116221-0960 | FAN,BLOWER | 70001- | ||
| ND017231-2370 | CLAMP | 70001- | ||
| 7 | ND116471-7270 | BRACKET,CASE | 70001- | |
| 8 | ND949047-2370 | BOLT,WITH WASHER | 70001- | |
| 9 | ND90930-06141 | SCREW,TAPPING | 70001- | |
| 10 | ND146810-9062 | RESISTOR,BLOWER | 70001- | |
| 11 | ND90930-04121 | SCREW,TAPPING | 70001- | |
| 12 | ND146651-1840 | PIPE | 70001- | |
| 13 | ND146691-1360 | CLAMP | 70001- |
