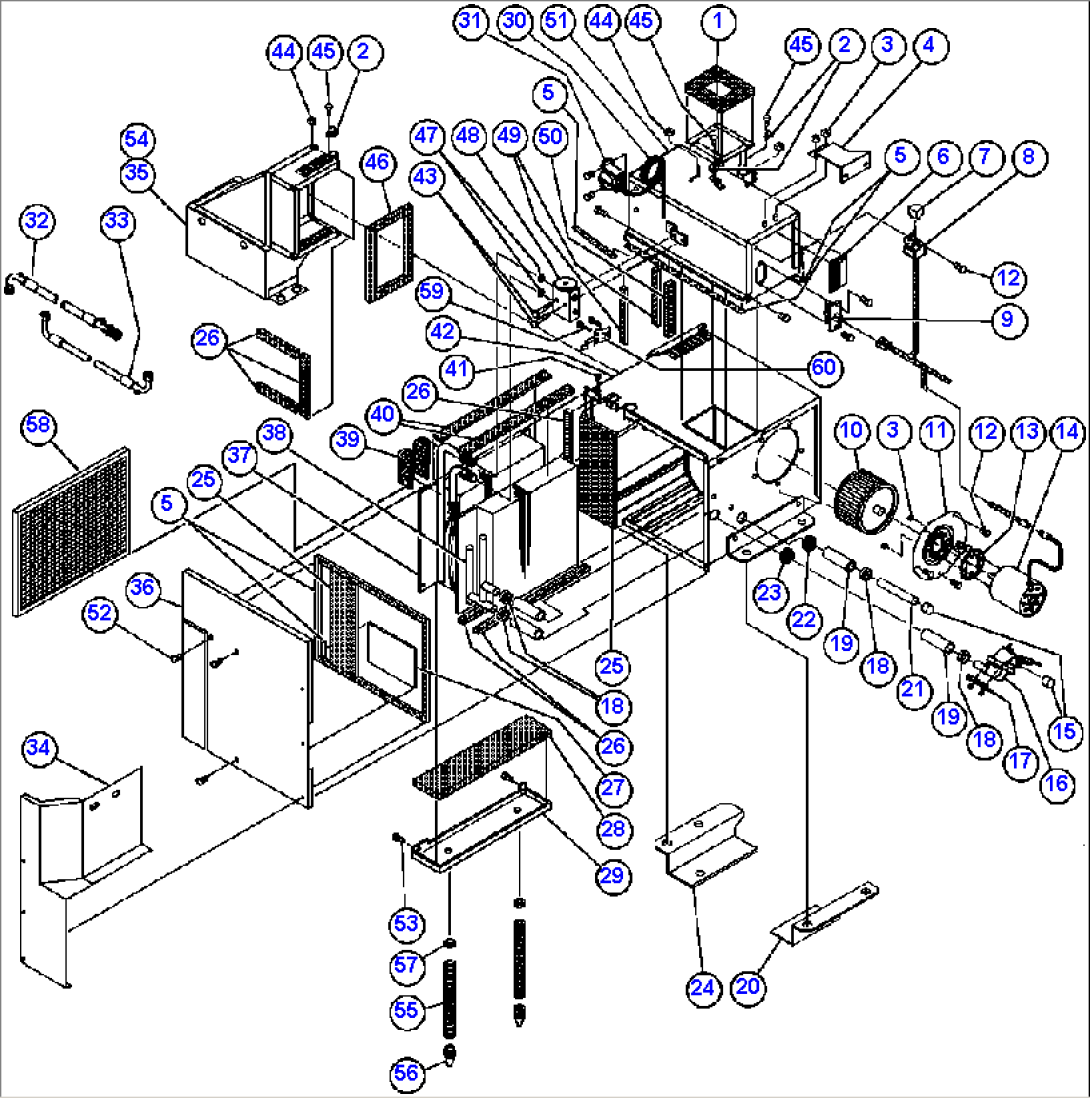

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE9094 | GASKET, DEFROST | ||
| 2 | VE9095 | CLAMP, CABLE | ||
| 3 | VE9096 | LOCKNUT | ||
| 4 | VE9097 | BRACKET | ||
| 5 | URETHANE (1) | |||
| 6 | PLATE, I.D. (1) | |||
| 7 | VE9100 | RELAY - 24V | ||
| 8 | VE9101 | HARNESS, WIRING | ||
| 9 | VE9102 | RESISTOR - 24V | ||
| 10 | XA2061 | WHEEL, BLOWER | ||
| 11 | XA2062 | PLATE, MOTOR | ||
| 12 | VE9105 | SCREW | ||
| 13 | (NOT USED THIS APPLICATION) | |||
| 14 | XA2063 | MOTOR - 24V | ||
| 15 | VE9108 | CAP (FOR SHIPPING ONLY) | ||
| 16 | VE9109 | VALVE, WATER | ||
| 17 | VE9110 | BRACKET, WATER VALVE | ||
| 18 | VE9111 | CLAMP, HOSE | ||
| 19 | HOSE, HEATER (1) | |||
| 20 | VE9113 | BRACKET - R.H. | ||
| 21 | VE9114 | SPLICE, HOSE | ||
| 22 | VE9115 | GROMMET | ||
| 23 | VE9116 | GROMMET | ||
| 24 | VE9117 | BRACKET - L.H. | ||
| 25 | URETHANE (1) | |||
| 26 | NEOPRENE (1) | |||
| 27 | DECAL, WIRING DIAGRAM (1) | |||
| 28 | FOAM, POLY (1) | |||
| 29 | VE9122 | PAN, DRAIN | ||
| 30 | INSULATION (1) | |||
| 31 | VE9124 | CONTROL, COLD | ||
| 32 | VE9125 | HOSE | ||
| 33 | VE9126 | HOSE | ||
| 34 | VE9127 | PANEL, GUARD | ||
| 35 | PLENUM (1) | |||
| 36 | VE9129 | COVER | ||
| 37 | VE9130 | COIL, EVAPORATOR | ||
| 38 | VE9131 | COIL, HEATER | ||
| 39 | SEAL (1) | |||
| 40 | NEOPRENE (1) | |||
| 41 | VE9134 | GROMMET | ||
| 42 | CASE (1) | |||
| 43 | VE9136 | SCREW | ||
| 44 | VE9137 | NUT, PUSH | ||
| 45 | VE9138 | SCREW | ||
| 46 | VE9139 | GASKET, INTAKE | ||
| 47 | VS5689 | O-RING | ||
| 48 | VE9093 | VALVE, EXPANSION | ||
| 49 | NEOPRENE (1) | |||
| 50 | URETHANE (1) | |||
| 51 | PLENUM (1) | |||
| 52 | VE9143 | SCREW | ||
| 53 | VE9144 | SCREW | ||
| 54 | VE9145 | PANEL, FRONT | ||
| 55 | BF4922 | HOSE, DRAIN | ||
| 56 | BF4923 | VALVE, CHECK | ||
| 57 | WIRE, TIE (1) | |||
| 58 | BF4925 | FILTER | ||
| 59 | RIVET (1) | |||
| 60 | BF4927 | LATCH | ||
| NS|61 | NOTE: (1) NOT SERVICED SEPARATELY. |
