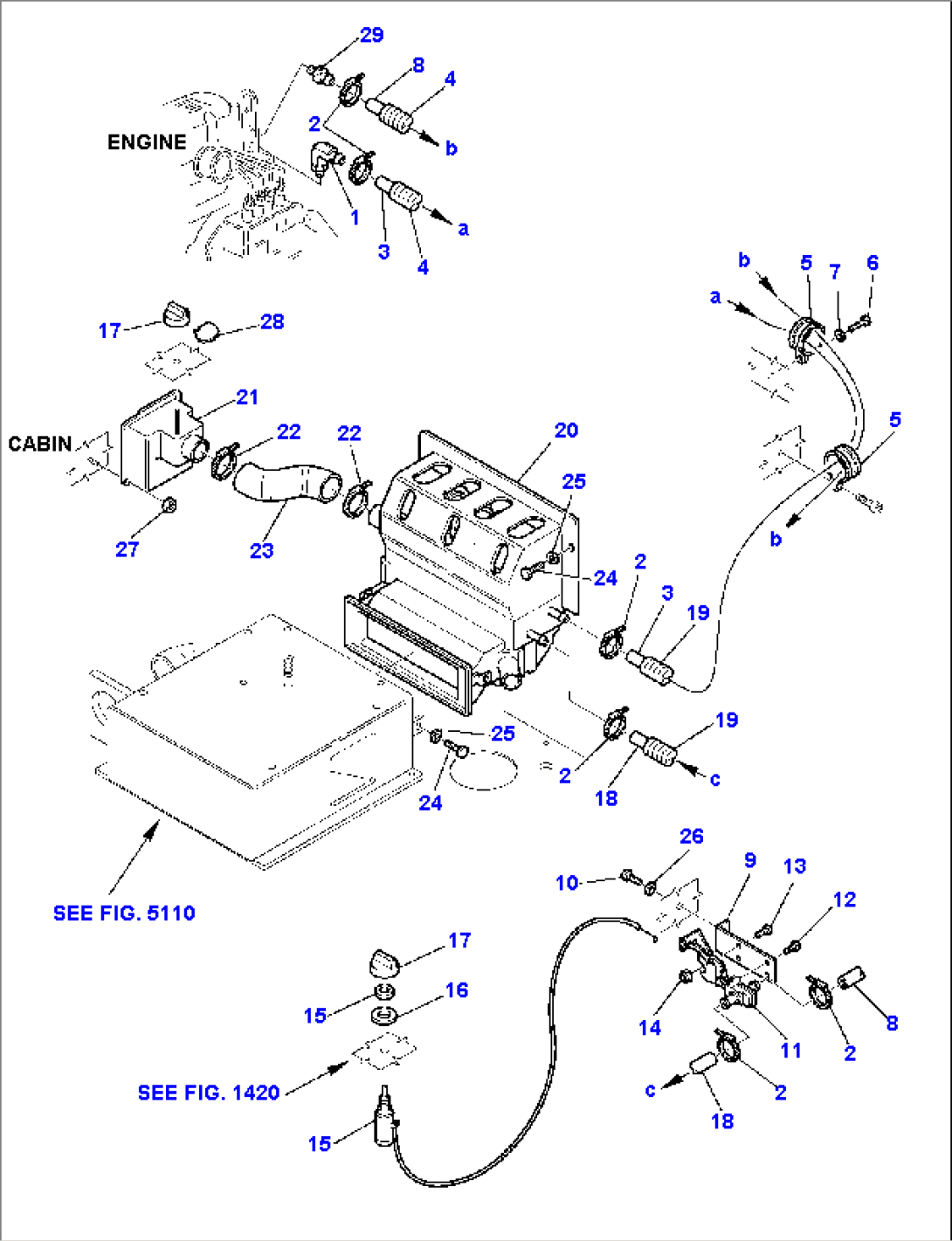

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21D-09-66650 | ELBOW | 22E0210020- | |
| 2 | 21D-09-81120 | HOSE-CLAMP | 22E0210020- | |
| 3 | 22E-977-1170 | HOSE | 22E0210020- | |
| 4 | 21D-04-11440 | PROTECTION | 22E0210020- | |
| 5 | 21D-09-81620 | HOSE-CLAMP | 22E0210020- | |
| 6 | 01010-50820 | BOLT | 22E0210020- | |
| 7 | 01643-30823 | SPRING WASHER | 22E0210020- | |
| 8 | 22E-977-1190 | HOSE | 22E0210020- | |
| 9 | 226-977-1140 | SUPPORT | 22E0210020- | |
| 10 | 01010-51020 | BOLT | 22E0210020- | |
| 11 | 226-977-1150 | COCK | 22E0210020- | |
| 12 | 21D-09-16410 | SCREW | 22E0210020- | |
| 13 | 21D-09-15720 | SCREW | 22E0210020- | |
| 14 | 21D-09-23130 | NUT | 22E0210020- | |
| 15 | 226-977-1160 | HEATING, CONTROL CABLE | 22E0210020- | |
| 16 | 22E-977-1180 | PLATE | 22E0210020- | |
| 17 | 226-977-1180 | KNOB | 22E0210020- | |
| 18 | 226-977-1190 | HOSE | 22E0210020- | |
| 19 | 21D-04-11440 | PROTECTION | 22E0210020- | |
| 20 | 42N-07-11620 | HEATER | 22E0210020- | |
| 21 | 22E-979-1370 | AIR INTAKE | 22E0210020- | |
| 22 | 21D-09-81460 | HOSE-CLAMP | 22E0210020- | |
| 23 | 22E-979-1210 | HOSE | 22E0210020- | |
| 24 | 01010-50620 | BOLT | 22E0210020- | |
| 25 | 01643-30623 | WASHER | 22E0210020- | |
| 26 | 01643-31032 | WASHER | 22E0210020- | |
| 27 | 21D-09-21430 | NUT | 22E0210020- | |
| 28 | 226-977-1230 | PLATE | 22E0210020- | |
| 29 | 226-977-1110 | UNION | 22E0210020- | |
| SEE FIG. 5110 | ||||
| SEE FIG. 1420 |
