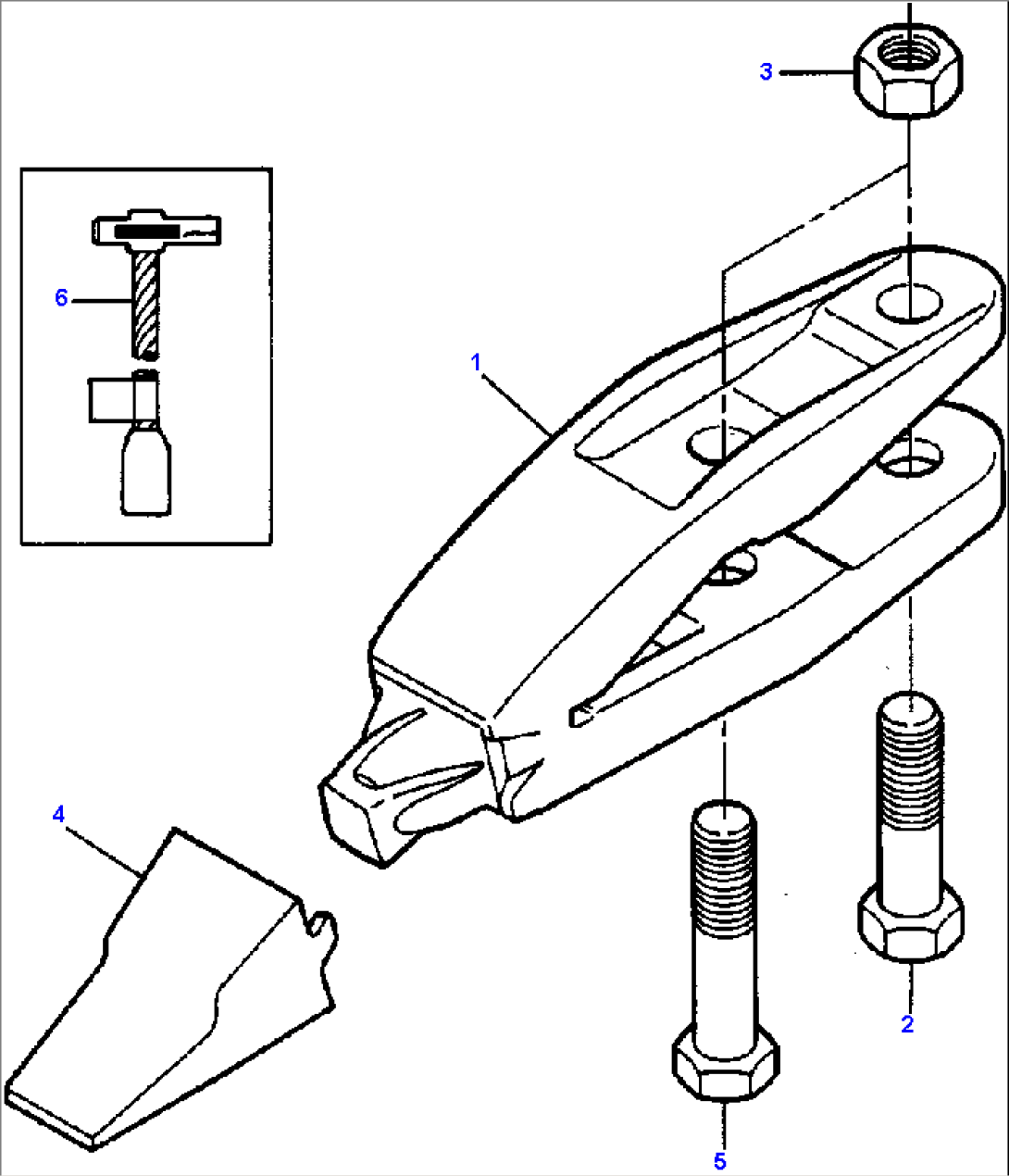

| Item | Part No. | Part Name | Qty | Serial No. |
| (1253 142 H91) | KIT, BUCKET TEETH | |||
| (1253 143 H91) | KIT, BUCKET TEETH | |||
| 1 | 1253 132 H1 | ADAPTER, TOOTH | ||
| 2 | 24 892 R1 | BOLT, MOUNTING - 3/4NCx3 | ||
| 3 | 25 529 R1 | NUT, HEX - 3/4NC | ||
| 4 | 1253 133 H1 | TOOTH, BUCKET | ||
| 5 | 24 893 R1 | BOLT, MOUNTING - 3/4NCx3-1/2 | ||
| (1253 145 H91) | KIT, TOOL | |||
| 6 | 1253 135 H1 | TOOL, HELILOCK REMOVAL | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE | ||||
| ONLY. ORDER INDIVIDUAL PIECE PARTS. |
