| Item | Part No. | Part Name | Qty | Serial No. |
| 176-76-01007 | WINCH ASS'Y | 23891- | ||
| \0\176-76-01004 | WINCH ASS'Y | 23541-23890 | ||
| \0\176-76-01003 | WINCH ASS'Y | 21739-23540 | ||
| \0\176-76-01002 | WINCH ASS'Y | 15686-21738 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F1620 -1635 AND FIGS.1651- 1656. | ||||

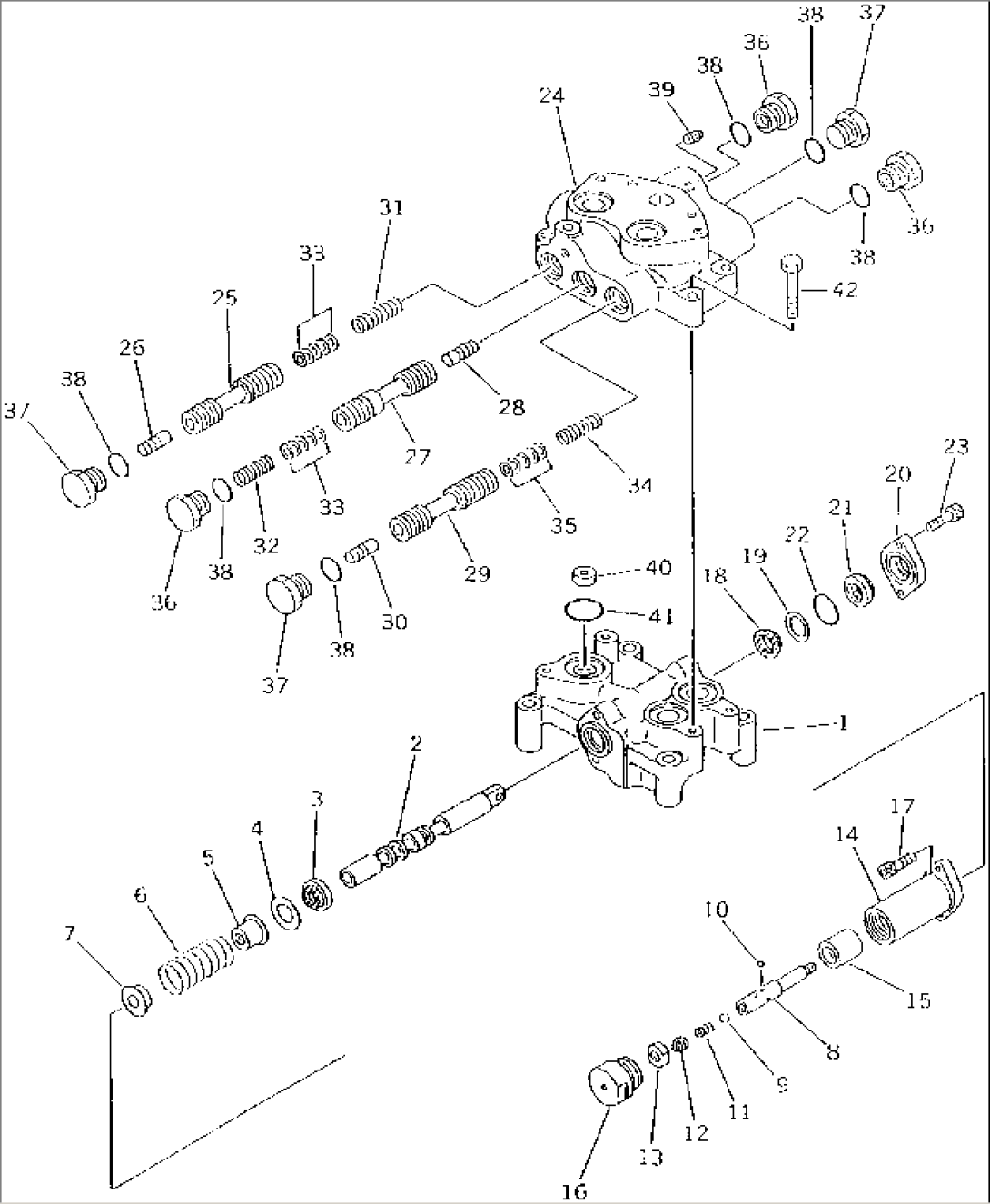

| 700-62-22000 | VALVE ASS'Y | 15686- | ||
| 700-62-00010 | BODY SUB ASS'Y (A) | 15686- | ||
| 1 | \6\ | BODY | 15686- | |
| 2 | \6\ | SPOOL | 15686- | |
| 3 | 700-62-22150 | U-PACKING | 15686- | |
| 4 | 700-82-11270 | SPACER | 15686- | |
| 5 | 700-82-11280 | RETAINER | 15686- | |
| 6 | 700-84-11770 | SPRING | 15686- | |
| 7 | 700-84-11990 | RETAINER | 15686- | |
| 8 | 700-82-11330 | PLUG | 15686- | |
| 9 | 700-82-11340 | BALL | 15686- | |
| 10 | 700-84-11730 | BALL | 15686- | |
| 11 | 700-82-11380 | SPRING | 15686- | |
| 12 | 700-82-11350 | SCREW | 15686- | |
| 13 | 700-82-11360 | NUT | 15686- | |
| 14 | 700-82-11310 | CASE | 15686- | |
| 15 | 700-84-11970 | DETENT | 15686- | |
| 16 | 700-82-11370 | PLUG | 15686- | |
| 17 | 01252-30620 | BOLT | 15686- | |
| 18 | 700-62-22150 | U-PACKING | 15686- | |
| 19 | 700-84-11290 | COLLAR | 15686- | |
| 20 | 700-84-11310 | PLATE | 15686- | |
| 21 | 700-62-22160 | SEAL,DUST | 15686- | |
| 22 | 700-84-11240 | O-RING | 15686- | |
| 23 | 01252-30620 | BOLT | 15686- | |
| 700-62-00030 | BODY SUB ASS'Y | 15686- | ||
| 24 | \6\ | BODY | 15686- | |
| 25 | \6\ | VALVE | 15686- | |
| 26 | \6\ | PISTON | 15686- | |
| 27 | \6\ | VALVE | 15686- | |
| 28 | \6\ | PISTON | 15686- | |
| 29 | \6\ | VALVE | 15686- | |
| 30 | \6\ | PISTON | 15686- | |
| 31 | 700-61-48240 | SPRING | 15686- | |
| 32 | 700-61-48250 | SPRING | 15686- | |
| 33 | 01640-00610 | WASHER | 15686- | |
| 34 | 700-61-48260 | SPRING | 15686- | |
| 35 | 01640-00610 | WASHER | 15686- | |
| 36 | 700-61-48270 | PLUG | 15686- | |
| 37 | 700-61-48280 | PLUG | 15686- | |
| 38 | 07002-42434 | O-RING | 15686- | |
| 39 | 07042-20108 | PLUG | 15686- | |
| 40 | 700-62-22140 | ORIFICE | 15686- | |
| 41 | 07000-43028 | O-RING | 15686- | |
| 42 | 01010-80840 | BOLT | 15686- |
