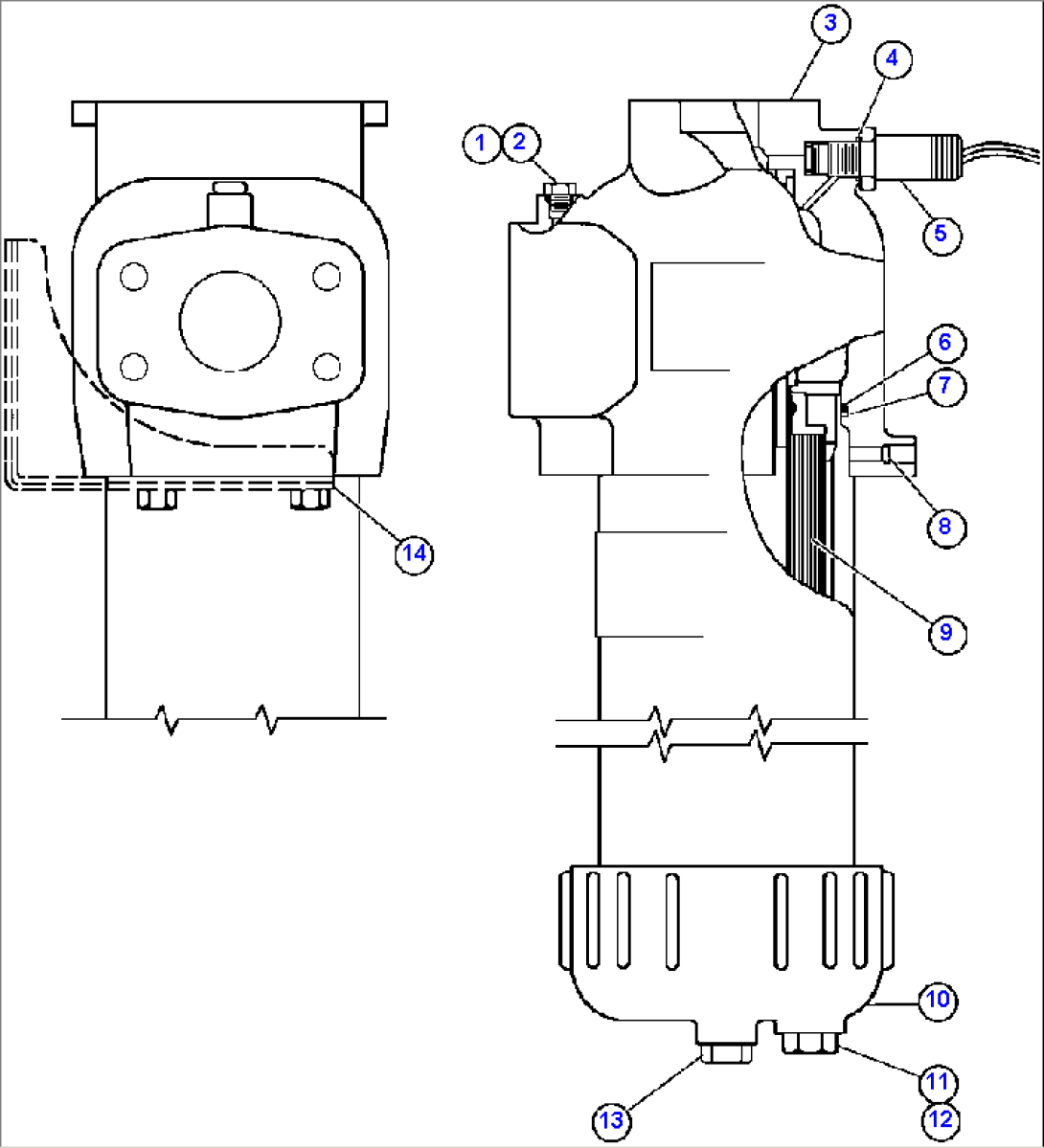

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VM0313 | PLUG, BLEED | ||
| 2 | TF5194 | O-RING | ||
| 3 | HEAD, FILTER (1) | |||
| 4 | WA0055 | O-RING | ||
| 5 | PB7797 | SWITCH, PRESSURE | ||
| 6 | TG4083 | O-RING | ||
| 7 | BF2196 | RING, BACKUP | ||
| 8 | BF2197 | SCREW, SET | ||
| 9 | AK3570 | ELEMENT, FILTER | ||
| 9 | BF3632 | COVER ASSEMBLY | ||
| 10 | CAP, FILTER (1) | |||
| 11 | VM0315 | PLUG, O-RING | ||
| 12 | SV9812 | O-RING | ||
| 13 | BF2194 | PLUG, BOTTOM | ||
| 14 | BF2209 | BRACKET ASSEMBLY | ||
| NS|16 | NOTE: (1) NOT SERVICED SEPARATELY. | |||
| NS|17 | (TERMINAL COMPONENTS ARE NOT INCLUDED W/FILTER | |||
| NS|18 | ASSEMBLY. SEE HYDRAULIC SYSTEM PIPING PAGE.) |
