| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-01011) | TORQFLOW ASS'Y | 2001-2087 | ||
| (\2\569-15-01010) | TORQFLOW ASS'Y | (2001-2016) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2231 TO 2425. | ||||
| (569-15-00301) | TRANSMISSION ASS'Y | 2001- | ||
| (\2\569-15-00300) | TRANSMISSION ASS'Y | (2001-(1538)) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2425. | ||||

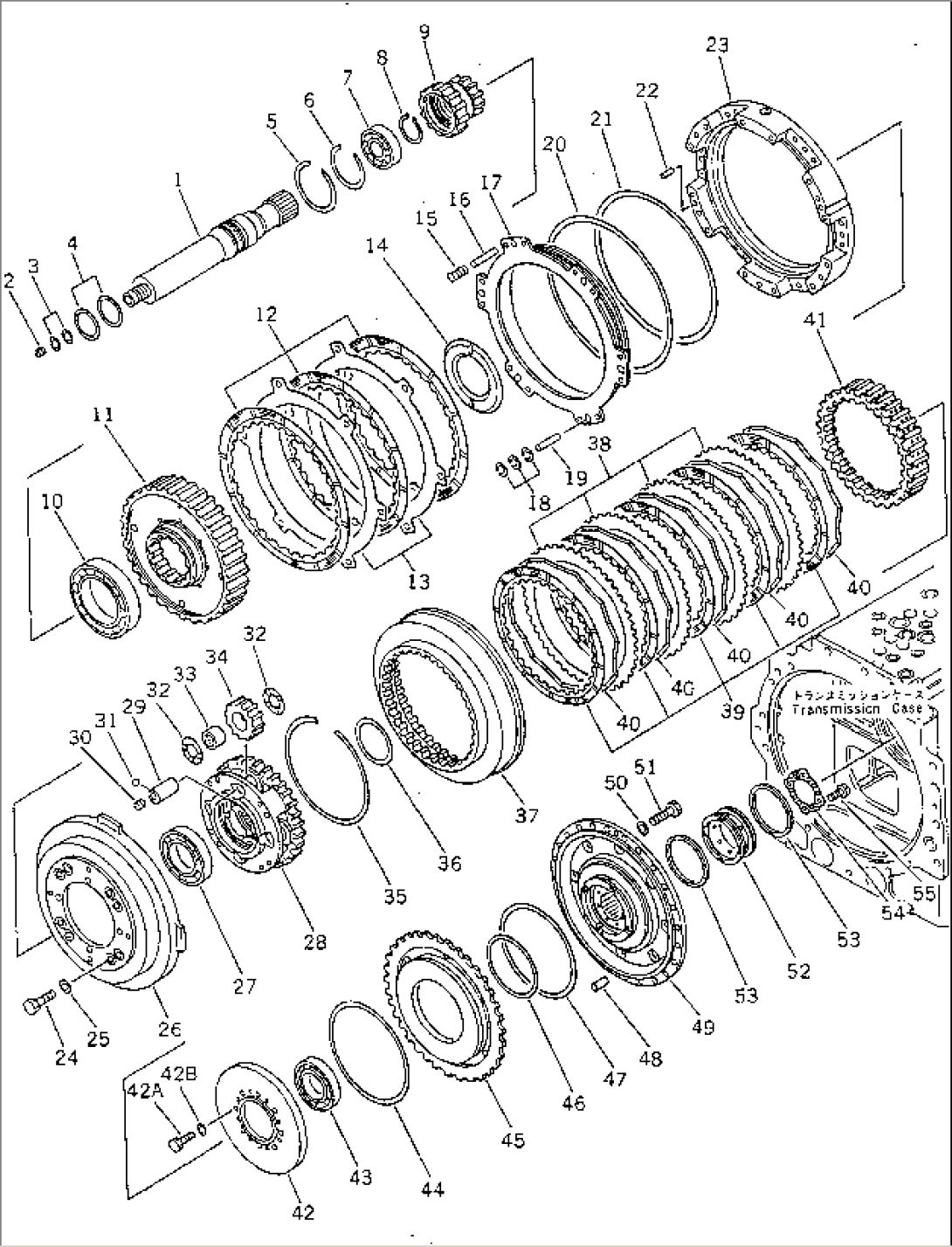

| 569-15-00340 | SHAFT ASS'Y | 2001- | ||
| 1 | 569-15-32110 | SHAFT | 2001- | |
| 2 | 234-15-12790 | SCREW | 2001- | |
| 3 | 07018-20353 | RING,SEAL | (1681)- | |
| 07018-20352 | RING,SEAL | 2001-(1680) | ||
| 4 | 07018-20854 | RING,SEAL | 2001- | |
| 5 | 04071-00130 | RING,SNAP | 2001- | |
| 6 | 04077-00110 | RING | 2001- | |
| 7 | 06000-06014 | BEARING | 2001- | |
| 8 | 04064-07025 | RING,SNAP | 2001- | |
| 9 | 569-15-32210 | GEAR | 2001- | |
| 10 | 569-15-39610 | BEARING | 2001- | |
| 11 | 569-15-32290 | HUB | 2001- | |
| 12 | 561-15-42721 | DISC | (1402)- | |
| 561-15-42720 | DISC | 2001-(1401) | ||
| 13 | 561-15-52940 | PLATE | (1605)- | |
| 569-15-32730 | PLATE | 2001-(1604) | ||
| 14 | 569-15-32150 | SPACER | 2001- | |
| 15 | 125-15-15310 | SPRING | 2001- | |
| 16 | 569-15-31280 | PIN | 2001- | |
| 17 | 569-15-32751 | PISTON | 2001- | |
| 18 | 175-15-42880 | SPRING | 2001- | |
| 19 | 287-15-11290 | PIN | 2001- | |
| 20 | 562-15-19241 | RING,SEAL (K4) | 2001- | |
| 21 | 175-15-59250 | RING,SEAL (K4) | 2001- | |
| 22 | 04020-01434 | PIN | 2001- | |
| 23 | 569-15-31171 | HOUSING | 2001- | |
| 24 | 01010-51230 | BOLT | 2001- | |
| 25 | 01643-31232 | WASHER | 2001- | |
| 26 | 569-15-31360 | PLATE | 2001- | |
| 27 | 569-15-39620 | BEARING | 2001- | |
| 28 | 569-15-32310 | CARRIER | 2001- | |
| 569-15-00330 | SHAFT ASS'Y | 2001- | ||
| 29 | 569-15-32510 | SHAFT | 2001- | |
| 30 | 569-15-31260 | PLUG | 2001- | |
| 31 | 04260-00635 | BALL | 2001- | |
| 32 | 569-15-32580 | WASHER | 2001- | |
| 33 | 569-15-39410 | BEARING | 2001- | |
| 34 | 569-15-32410 | GEAR | 2001- | |
| 35 | 154-15-12670 | RING,RING | 2001- | |
| 36 | 07018-11205 | RING,SEAL | 2001- | |
| 37 | 569-15-32650 | GEAR,RING | 2001- | |
| 38 | 569-15-32741 | PLATE | (1605)- | |
| 569-15-32740 | PLATE | 2001-(1604) | ||
| 39 | 569-15-32721 | DISC | (1402)- | |
| 569-15-32720 | DISC | 2001-(1401) | ||
| 40 | 569-15-39810 | SPRING | 2001- | |
| 41 | 569-15-32280 | GEAR,RING | 2001- | |
| 42 | 569-15-32370 | COVER | 2001- | |
| 42A | 01010-51030 | BOLT | 2001- | |
| 42B | 01643-31032 | WASHER | 2001- | |
| 43 | 569-15-39630 | BEARING | 2001- | |
| 44 | 232-15-19210 | RING,SEAL (K4) | 2001- | |
| 45 | 569-15-32780 | PISTON | 2001- | |
| 46 | 287-15-19210 | RING,SEAL (K4) | 2001- | |
| 47 | 154-15-22831 | RING,SEAL (K4) | 2001- | |
| 48 | 04020-01228 | PIN,DOWEL | 2001- | |
| 49 | 569-15-31190 | HOUSING | 2001- | |
| 50 | 01643-31232 | WASHER | 2001- | |
| 51 | 01010-51230 | BOLT | 2001- | |
| 52 | 569-15-31220 | COLLAR | 2001- | |
| 53 | 423-15-19210 | RING,SEAL | (1539)- | |
| 569-15-39260 | RING,SEAL | 2001-(1538) | ||
| 54 | 569-15-31240 | PLATE | 2001- | |
| 55 | 569-15-31251 | BOLT | (1539)- | |
| 569-15-31250 | BOLT | 2001-(1538) |
