| Item | Part No. | Part Name | Qty | Serial No. |
| (567-15-00090) | TORQFLOW ASS'Y | 1819- | ||

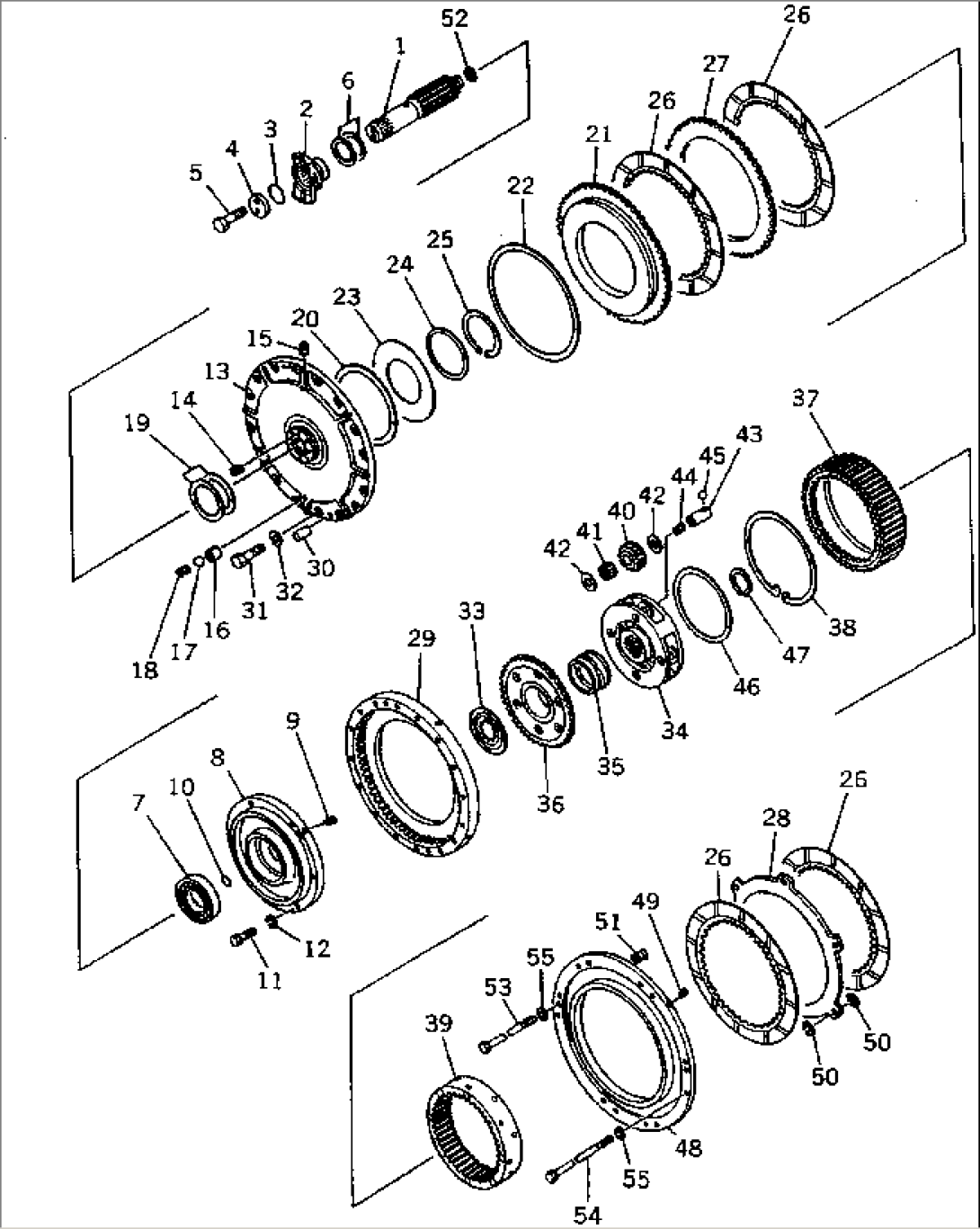

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 1 | 567-15-12112 | SHAFT | 1819- | |
| 2 | 567-15-12151 | COUPLING | 1819- | |
| 3 | 567-15-12180 | O-RING (K28) | 1819- | |
| 4 | 567-15-12191 | HOLDER | 1819- | |
| 5 | 01010-51495 | BOLT | 1819- | |
| 6 | 07018-20753 | RING,SEAL | 1819- | |
| 7 | 06000-06313 | BEARING | 1819- | |
| 8 | 567-15-11230 | COVER | 1819- | |
| 9 | 07042-00211 | PLUG | 1819- | |
| 10 | 07000-72020 | O-RING (K28) | 1819- | |
| 11 | 01010-51240 | BOLT | 1819- | |
| 12 | 01602-21236 | WASHER,SPRING | 1819- | |
| 567-15-00190 | HOUSING ASS'Y | 1819- | ||
| 13 | \6\ | HOUSING | 1819- | |
| 14 | \6\ | PLUG | 1819- | |
| 15 | \6\ | SCREW | 1819- | |
| 281-15-12930 | CHECK VALVE ASS'Y | 1819- | ||
| 16 | \6\ | PLUG | 1819- | |
| 17 | \6\ | BALL | 1819- | |
| 18 | \6\ | SCREW | 1819- | |
| 19 | 07018-21004 | RING,SEAL | 1819- | |
| 20 | 567-15-12830 | RING,SEAL | 1819- | |
| 21 | 567-15-12730 | PISTON | 1819- | |
| 22 | 144-15-22881 | RING,RING | 1819- | |
| 23 | 281-15-12880 | SPRING | 1819- | |
| 24 | 281-15-12950 | RING | 1819- | |
| 25 | 281-15-12940 | RING,SNAP | 1819- | |
| 26 | 195-15-32710 | DISC,CLUTCH | 1819- | |
| 27 | 281-15-12720 | PLATE | 1819- | |
| 28 | 281-15-12160 | PLATE | 1819- | |
| 29 | 566-15-42320 | DRUM | 1819- | |
| 30 | 04020-01434 | PIN,DOWEL | 1819- | |
| 31 | 01010-51230 | BOLT | 1819- | |
| 32 | 01602-21236 | WASHER,SPRING | 1819- | |
| 33 | 281-15-12581 | WASHER,THRUST | 1819- | |
| 567-15-00300 | CARRIER ASS'Y | 1819- | ||
| 34 | \6\ | CARRIER | 1819- | |
| 35 | \6\ | BUSHING | 1819- | |
| 36 | 281-15-12230 | GEAR | 1819- | |
| 37 | 281-15-12651 | GEAR,RING | 1819- | |
| 38 | 04071-00270 | RING,SNAP | 1819- | |
| 39 | 281-15-12640 | GEAR,RING | 1819- | |
| 40 | 281-15-12410 | GEAR | 1819- | |
| 41 | 566-15-19110 | BEARING | 1819- | |
| 42 | 09233-12620 | WASHER,THRUST | 1819- | |
| 43 | 281-15-12511 | SHAFT | 1819- | |
| 44 | 281-15-12790 | SCREW | 1819- | |
| 45 | 04260-00635 | BALL | 1819- | |
| 46 | 130-09-15790 | RING,SNAP | 1819- | |
| 47 | 04064-06320 | RING,SNAP | 1819- | |
| 281-15-00070 | PLATE ASS'Y | 1819- | ||
| 48 | \6\ | PLATE | 1819- | |
| 49 | 145-14-11320 | PLUG | 1819- | |
| 50 | 175-15-42880 | SPRING | 1819- | |
| 51 | 281-15-12860 | SPRING,(L=43.5) | 1819- | |
| 52 | 07018-20353 | RING,SEAL | 1819- | |
| 53 | 281-15-11352 | BOLT | 1819- | |
| 54 | 281-15-11392 | BOLT | 1819- | |
| 55 | 145-14-11570 | WASHER | 1819- |
