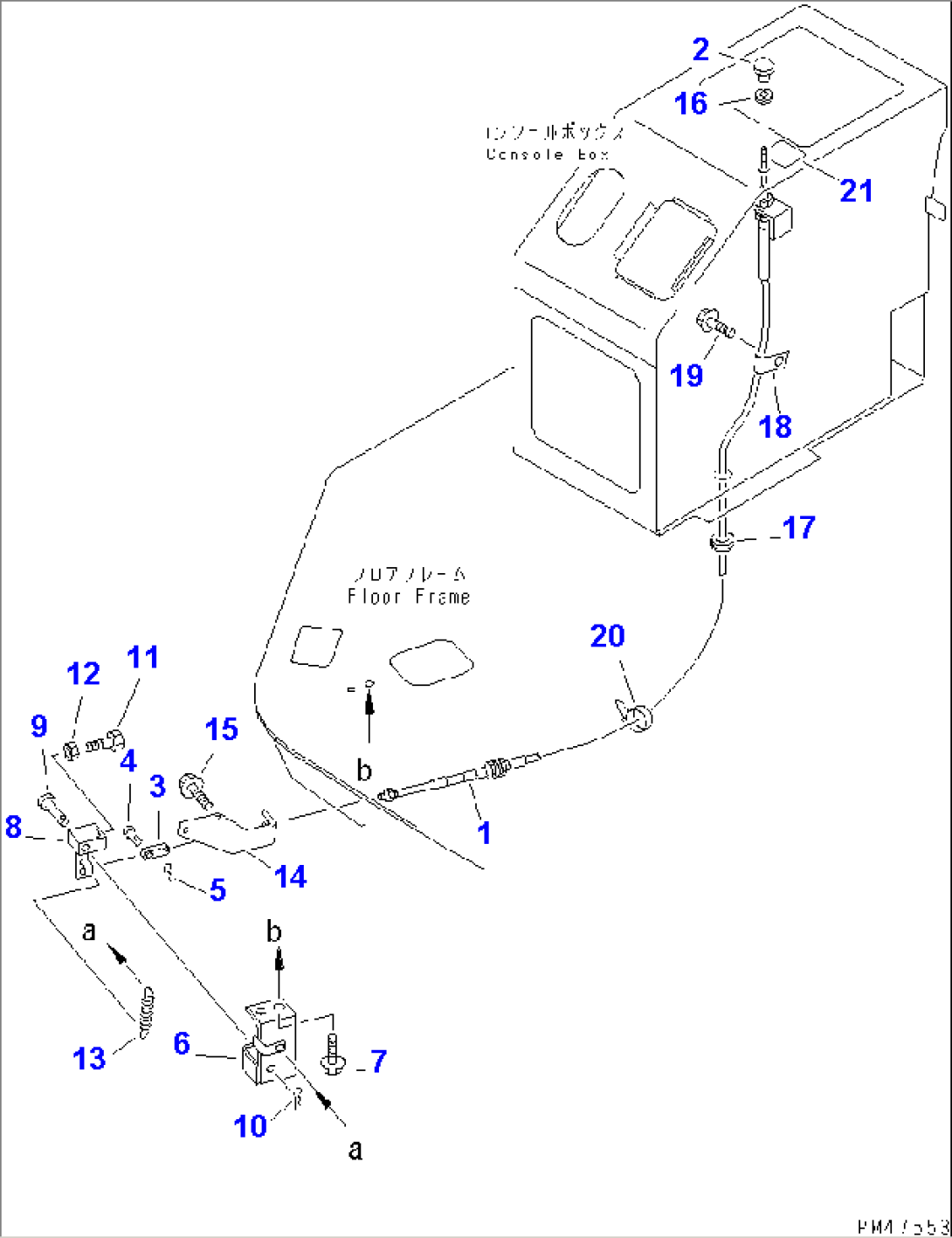

Item | Part No. | Part Name | Qty | Serial No. |
1 | 417-43-24110 | CABLE | 50001- | |
2 | 417-43-16470 | KNOB | 50001- | |
3 | 04211-20500 | YOKE | 50001- | |
4 | 04205-10514 | PIN | 50001- | |
5 | 04052-10530 | PIN,SNAP | 50001- | |
6 | 417-43-24120 | BRACKET | 50001- | |
7 | 01435-01020 | BOLT | 50001- | |
8 | 417-43-24130 | LEVER | 50001- | |
9 | 04205-11250 | PIN | 50001- | |
10 | 04052-11253 | PIN,SNAP | 50001- | |
11 | 01016-50825 | BOLT | 50001- | |
12 | 01580-10806 | NUT | 50001- | |
13 | 42A-54-11250 | SPRING | 50001- | |
14 | 417-43-24140 | SUPPORT | 50001- | |
15 | 01435-00620 | BOLT | 50001- | |
16 | 415-43-18231 | GROMMET | 50001- | |
17 | 426-09-11220 | GROMMET | 50001- | |
18 | 08036-01014 | CLIP | 50001- | |
19 | 01435-00812 | BOLT | 50001- | |
20 | 08034-20834 | BAND | 50001- | |
21 | 417-43-24160 | PLATE¤ OPERATING | 50001- |
