| Item | Part No. | Part Name | Qty | Serial No. |

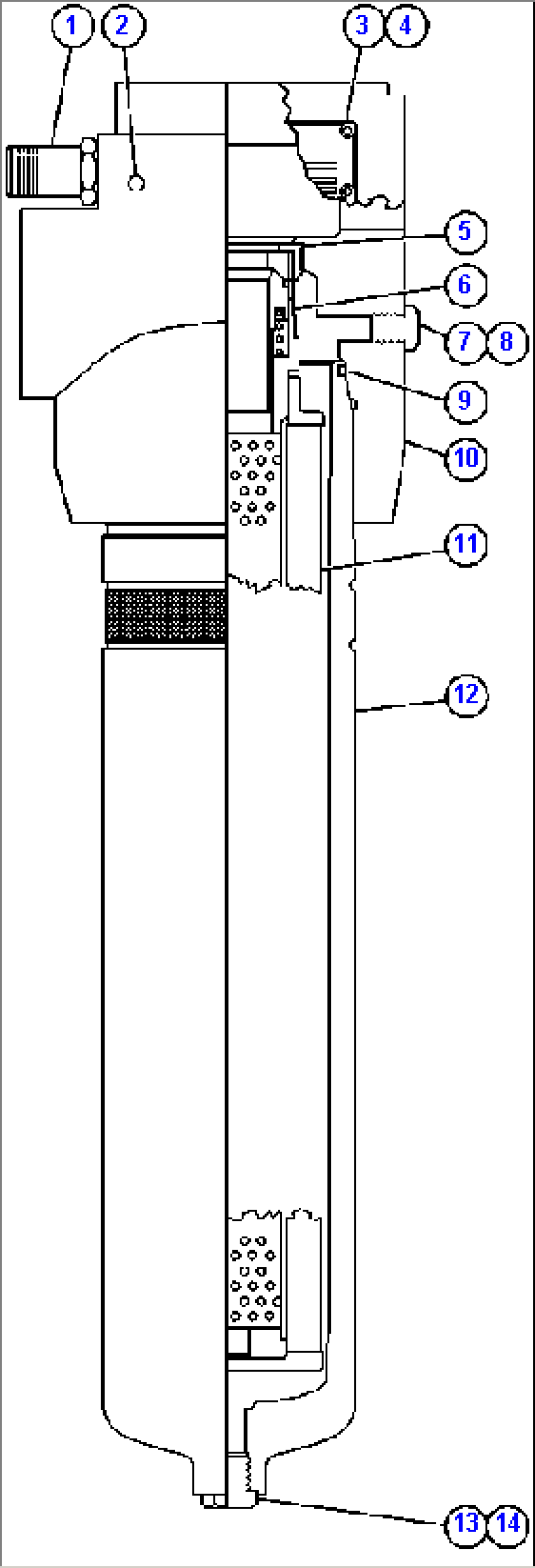

| 0 | PB9666 | FILTER ASSEMBLY | ||
| 1 | PB7797 | INDICATOR | ||
| 2 | BF2218 | SCREW, SET | ||
| 3 | PLATE, NAME (1) | |||
| 4 | SCREW, DRIVE (1) | |||
| 5 | BF2214 | ADAPTOR | ||
| 6 | BF2215 | KIT, CORE | ||
| 7 | VM0313 | PLUG, BLEED | ||
| 8 | TF5194 | O-RING | ||
| 9 | WA0100 | O-RING | ||
| 10 | HEAD (1) | |||
| 11 | AK3572 | ELEMENT, FILTER | ||
| 12 | BF2213 | BOWL | ||
| 13 | VE1978 | PLUG, DRAIN | ||
| 14 | TL3995 | O-RING | ||
| NS|16 | NOTE: NS = NOT SHOWN | |||
| NS|17 | PB7034 | SEAL, CABLE ENTRY | ||
| NS|18 | PB7731 | PIN, TERMINAL | ||
| NS|19 | PB7734 | CONNECTOR, MALE | ||
| NS|20 | NOTE: (1) NOT SERVICED SEPARATELY. |
