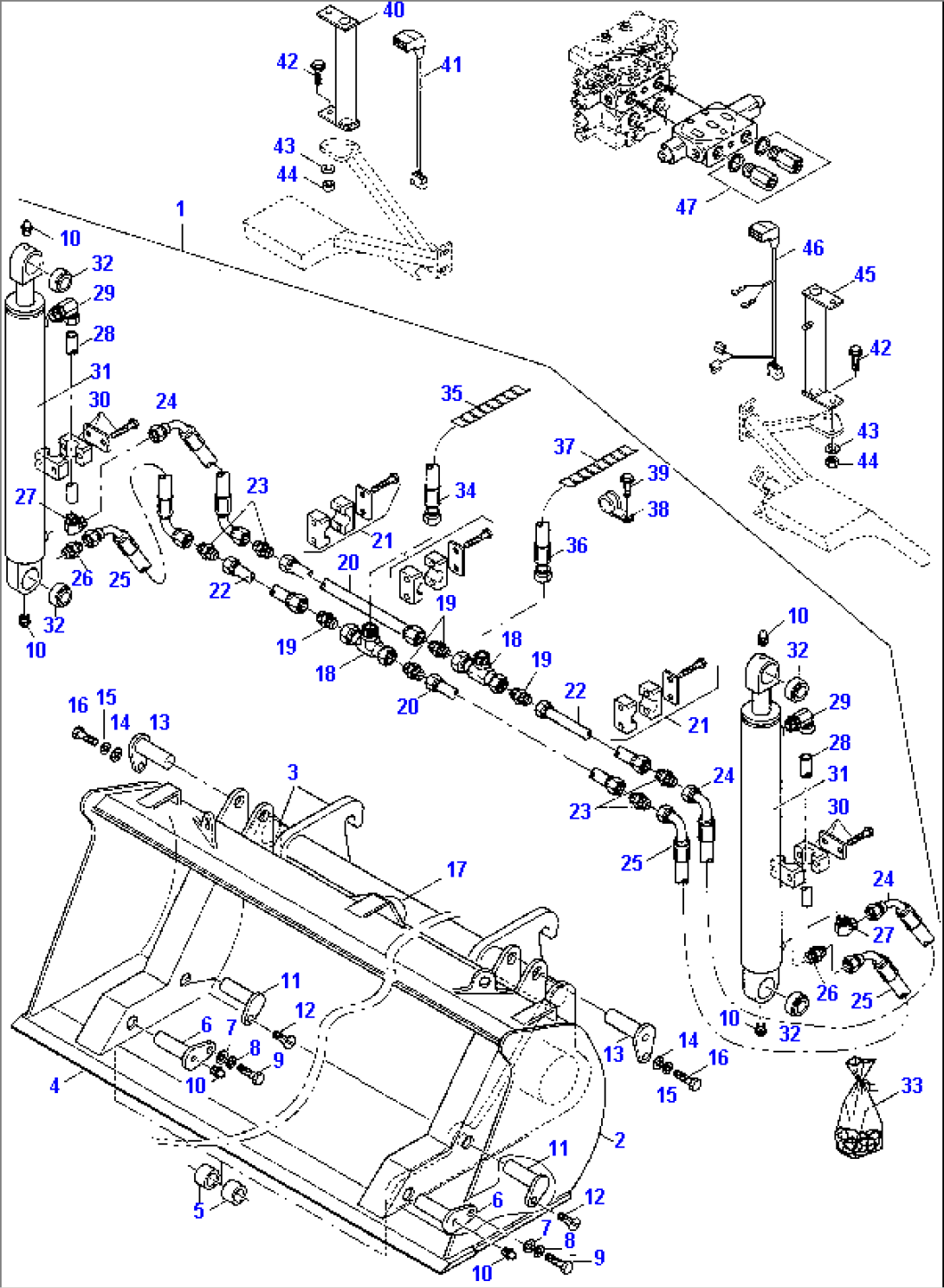

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42T-70-12050 | HIGH TIP BUCKET | ||
| 2 | BUCKET | |||
| 3 | CARRIER | |||
| 4 | 42U-70-H0P54 | BLADE | ||
| 5 | 42U-70-H0P17 | BUSHING | ||
| 6 | 42T-70-H0P46 | PIN | ||
| 7 | 01641-01223 | PLAIN WASHER | ||
| 8 | 42U-70-H0P59 | SPRING WASHER | ||
| 9 | 01010-51225 | SCREW | ||
| 10 | 42U-70-H0P18 | LUBRICATION NIPPLE | ||
| 11 | 42T-70-H0P47 | PIN | ||
| 12 | 42T-70-H0P48 | SCREW | ||
| 13 | 42T-70-H0P49 | PIN | ||
| 14 | 01641-01223 | PLAIN WASHER | ||
| 15 | 42U-70-H0P59 | SPRING WASHER | ||
| 16 | 01010-51225 | SCREW | ||
| 17 | 42T-70-H0P50 | BUFFER | ||
| 18 | 42U-70-H0P19 | UNION | ||
| 19 | 42U-70-H0P20 | UNION | ||
| 20 | 42T-70-H0P51 | TUBE | ||
| 21 | 42U-70-H0P23 | CLAM | ||
| 22 | 42T-70-H0P52 | TUBE | ||
| 23 | 42T-70-H0P53 | STUD | ||
| 24 | 42T-70-H0P54 | HOSE ASSEMBLY | ||
| 25 | 42T-70-H0P55 | HOSE ASSEMBLY | ||
| 26 | 42W-70-H0P08 | UNION | ||
| 27 | 42U-70-H0P62 | UNION | ||
| 28 | 42T-70-H0P56 | TUBE | ||
| 29 | 42U-70-H0P25 | UNION | ||
| 30 | 42U-70-H0P23 | CLAM | ||
| 31 | 42U-70-H0P64 | HYDR. CYLINDER | ||
| 32 | 42U-70-H0P65 | BALL AND SOCKET JOIN | ||
| 33 | 42U-70-H0P66 | GASKET KIT | ||
| 34 | 42U-09-H1540 | HOSE ASSEMBLY | ||
| 35 | 42U-09-H2050 | HOSE PROTECTOR | ||
| 36 | 42U-09-H2230 | HOSE ASSEMBLY | ||
| 37 | 42U-09-H2050 | HOSE PROTECTOR | ||
| 38 | 424-00-H0730 | CLIP | ||
| 39 | 01435-01016 | SCREW | ||
| 40 | 42U-70-12430 | BRACKET | ||
| 41 | 42U-06-12370 | HARNESS | ||
| 42 | 01435-01230 | SCREW | ||
| 43 | 423-00-H0000 | PLAIN WASHER | ||
| 44 | 01580-11210 | NUT | ||
| 45 | 42U-70-12440 | BRACKET | ||
| 46 | 42U-06-12360 | HARNESS | ||
| 47 | 42U-70-12K80 | THROTTLE |
