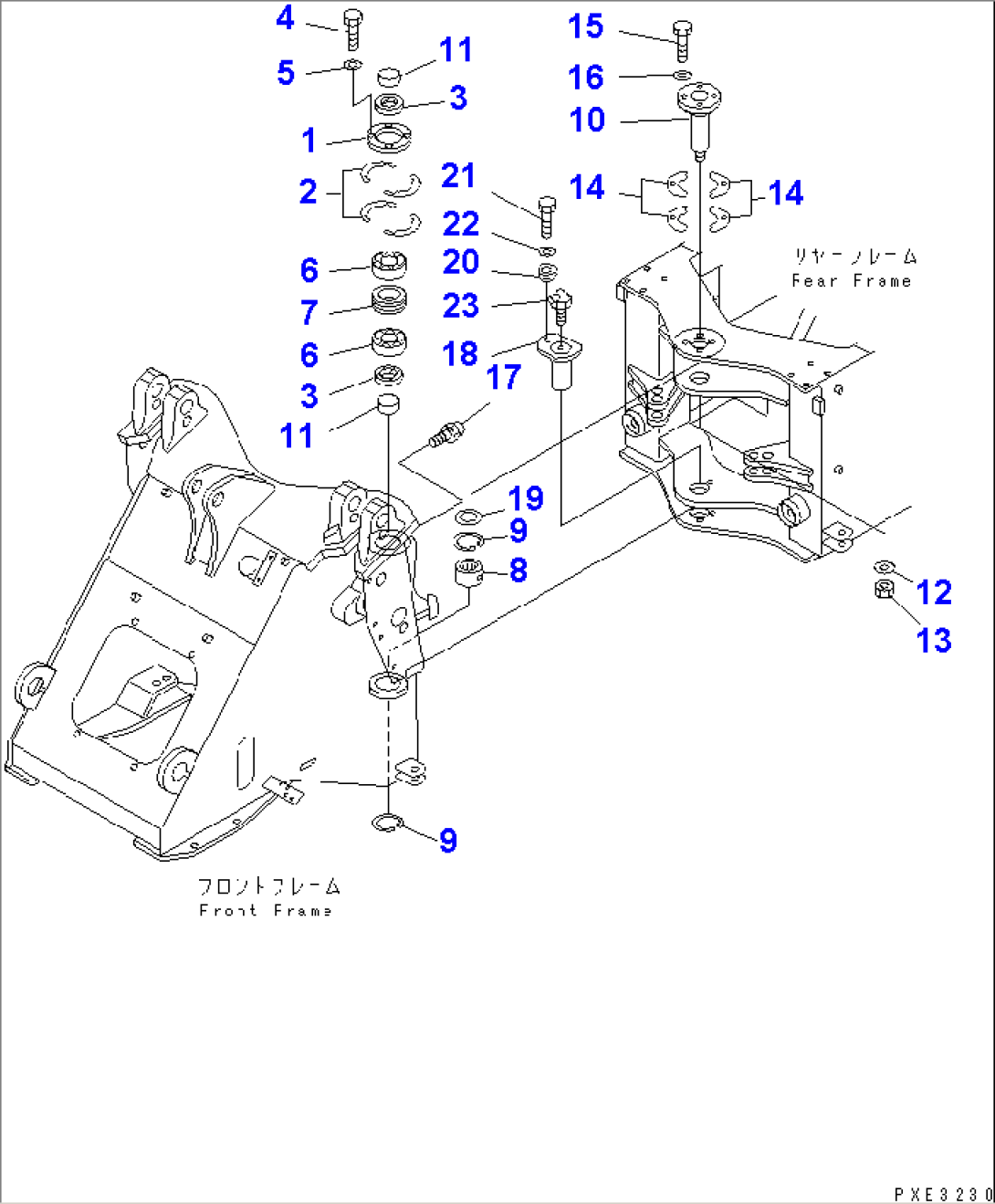

Item | Part No. | Part Name | Qty | Serial No. |
1 | 417-46-11220 | RETAINER | 63001- | |
2 | 417-46-11330 | SHIM¤ 0.5MM | 63001- | |
417-46-11340 | SHIM¤ 0.1MM | 63001- | ||
3 | 417-46-11230 | SEAL | 63001- | |
4 | 01010-81030 | BOLT | 63001- | |
5 | 01643-31032 | WASHER | 63001- | |
6 | 417-46-11120 | BEARING | 63001- | |
7 | 417-46-11210 | SPACER | 63001- | |
8 | 417-46-11250 | BEARING | 63001- | |
9 | 417-46-11260 | RING | 63001- | |
10 | 417-46-11151 | PIN | 63001- | |
11 | 417-46-11180 | SPACER | 63001- | |
12 | 417-46-11160 | WASHER | 63001- | |
13 | 01597-02419 | NUT | 63001- | |
14 | 417-46-11190 | SHIM¤ 0.4MM | 63001- | |
15 | 01010-81230 | BOLT | 63001- | |
16 | 01643-31232 | WASHER | 63001- | |
17 | 07020-00000 | FITTING,GREASE | 63001- | |
18 | 417-46-11240 | PIN | 63001- | |
19 | 417-46-11270 | WASHER | 63001- | |
20 | 424-46-11130 | BUSHING | 63001- | |
21 | 01010-81230 | BOLT | 63001- | |
22 | 01643-31232 | WASHER | 63001- | |
23 | 07020-00900 | FITTING,GREASE | 63001- |
