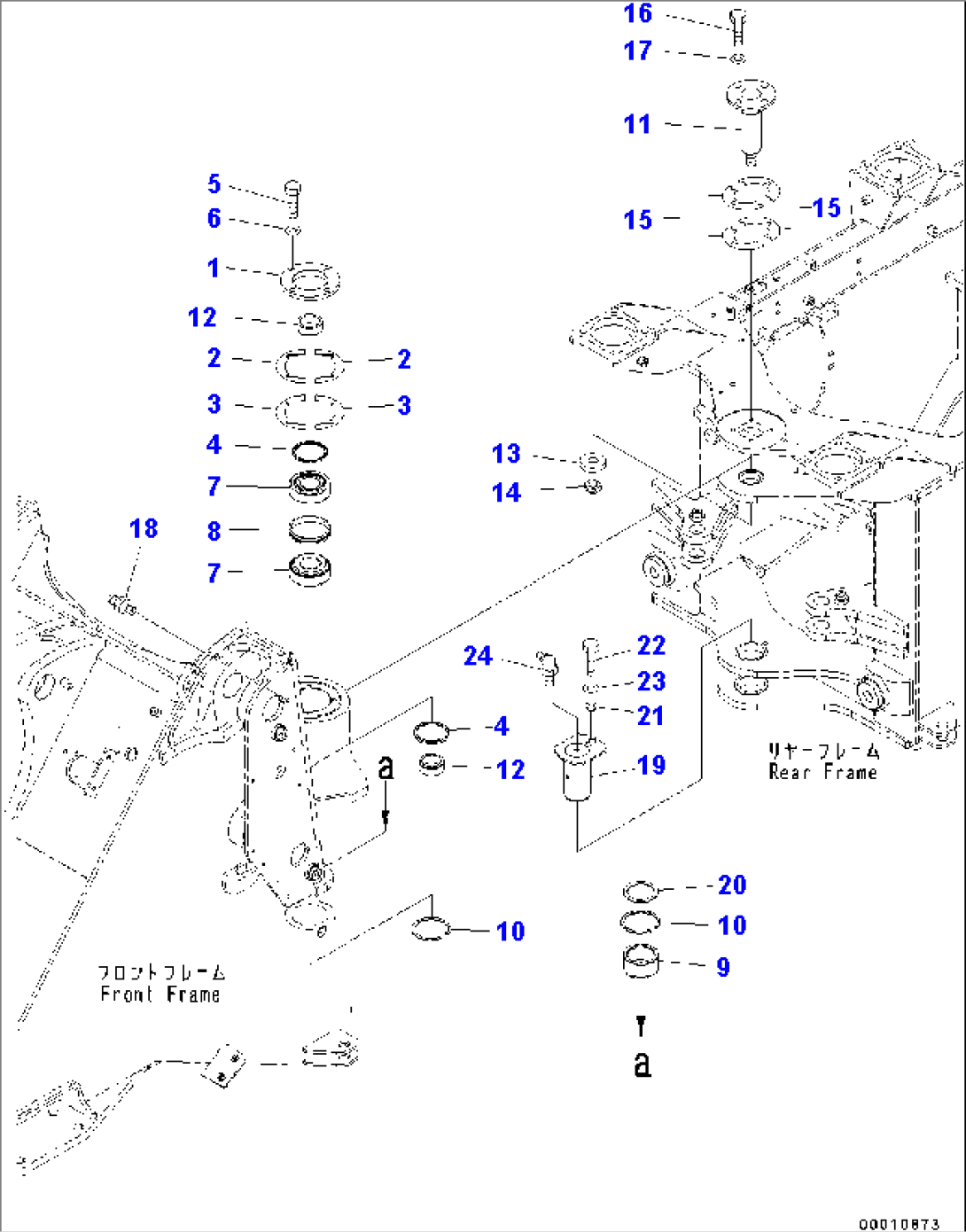

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-46-11220 | Retainer | C10001- | |
| 2 | 417-46-11330 | Shim, T=0.5mm | C10001- | |
| 3 | 417-46-11340 | Shim, T=0.1.mm | C10001- | |
| 4 | 417-46-11230 | Seal, Dust | C10001- | |
| 5 | 01010-81030 | Bolt | C10001- | |
| 6 | 01643-31032 | Washer | C10001- | |
| 7 | 417-46-11120 | Bearing | C10001- | |
| 8 | 417-46-11210 | Spacer | C10001- | |
| 9 | 417-46-33110 | Bearing | C10001- | |
| 10 | 417-46-11260 | Ring | C10001- | |
| 11 | 417-46-11151 | Pin | C10001- | |
| 12 | 417-46-11180 | Spacer | C10001- | |
| 13 | 417-46-11160 | Washer | C10001- | |
| 14 | 01597-02419 | Nut, Flanged | C10001- | |
| 15 | 417-46-11190 | Shim, T=0.4mm | C10001- | |
| 16 | 01010-81230 | Bolt | C10001- | |
| 17 | 01643-31232 | Washer | C10001- | |
| 18 | 07020-00000 | Fitting, Grease | C10001- | |
| 19 | 417-46-11240 | Pin | C10001- | |
| 20 | 417-46-11270 | Washer | C10001- | |
| 21 | 424-46-11130 | Bushing | C10001- | |
| 22 | 01010-81230 | Bolt | C10001- | |
| 23 | 01643-31232 | Washer | C10001- | |
| 24 | 07020-00900 | Fitting, Grease | C10001- |
