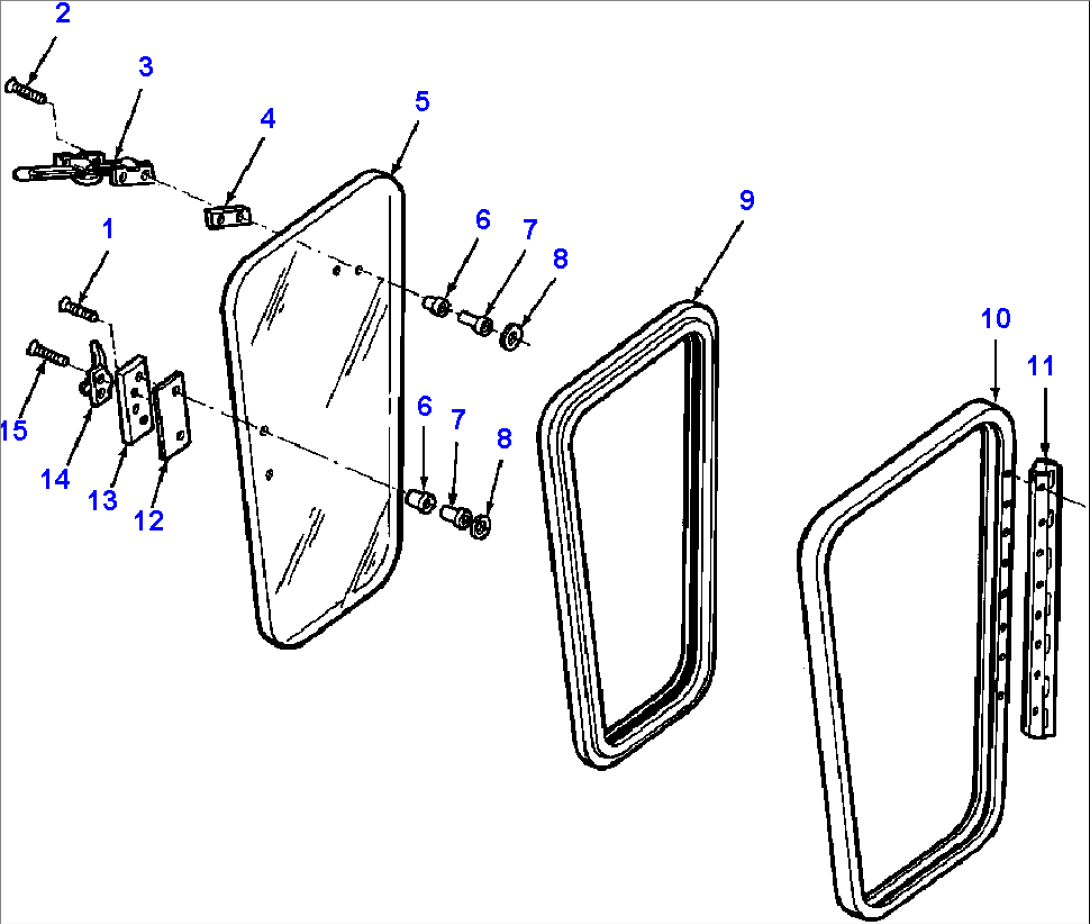

| Item | Part No. | Part Name | Qty | Serial No. |
| 1252 836 H92 | WINDOW, HINGED - R.H | |||
| 1252 835 H92 | WINDOW, HINGED - L.H | |||
| 1 | 1270 256 H2 | SEAL, TRIM | ||
| 2 | 1285 605 H1 | SCREW, MACHINE - 8-32 X 3/4 IN | ||
| 1285 606 H1 | NUT, CAP | |||
| 3 | 1270 253 H1 | ADJUSTER, WINDOW | ||
| 1432 130 H1 | KNOB | |||
| 1432 131 H1 | WASHER | |||
| 4 | 1270 250 H1 | SHIM, RUBBER | ||
| 5 | 1277 927 H1 | GLASS | ||
| 6 | 1173 786 C1 | GROMMET, RUBBER | ||
| 7 | 1270 255 H1 | NUT, SERT | ||
| 8 | 140 259 | WASHER, FINISH | ||
| 9 | 1270 251 H1 | GLAZING | ||
| 10 | (NSS) | FRAME | ||
| 11 | 1270 257 H1 | HINGE | ||
| 1285 609 H1 | RIVET, POP - 1/8 | |||
| 12 | 1270 252 H1 | SHIM, RUBBER | ||
| 13 | 1270 254 H1 | PLATE, MOUNTING | ||
| 14 | 1270 258 H1 | HANDLE, LOCK | ||
| 15 | 1285 607 H1 | SCREW, MACHINE - 8-32 X 1/2 IN | ||
