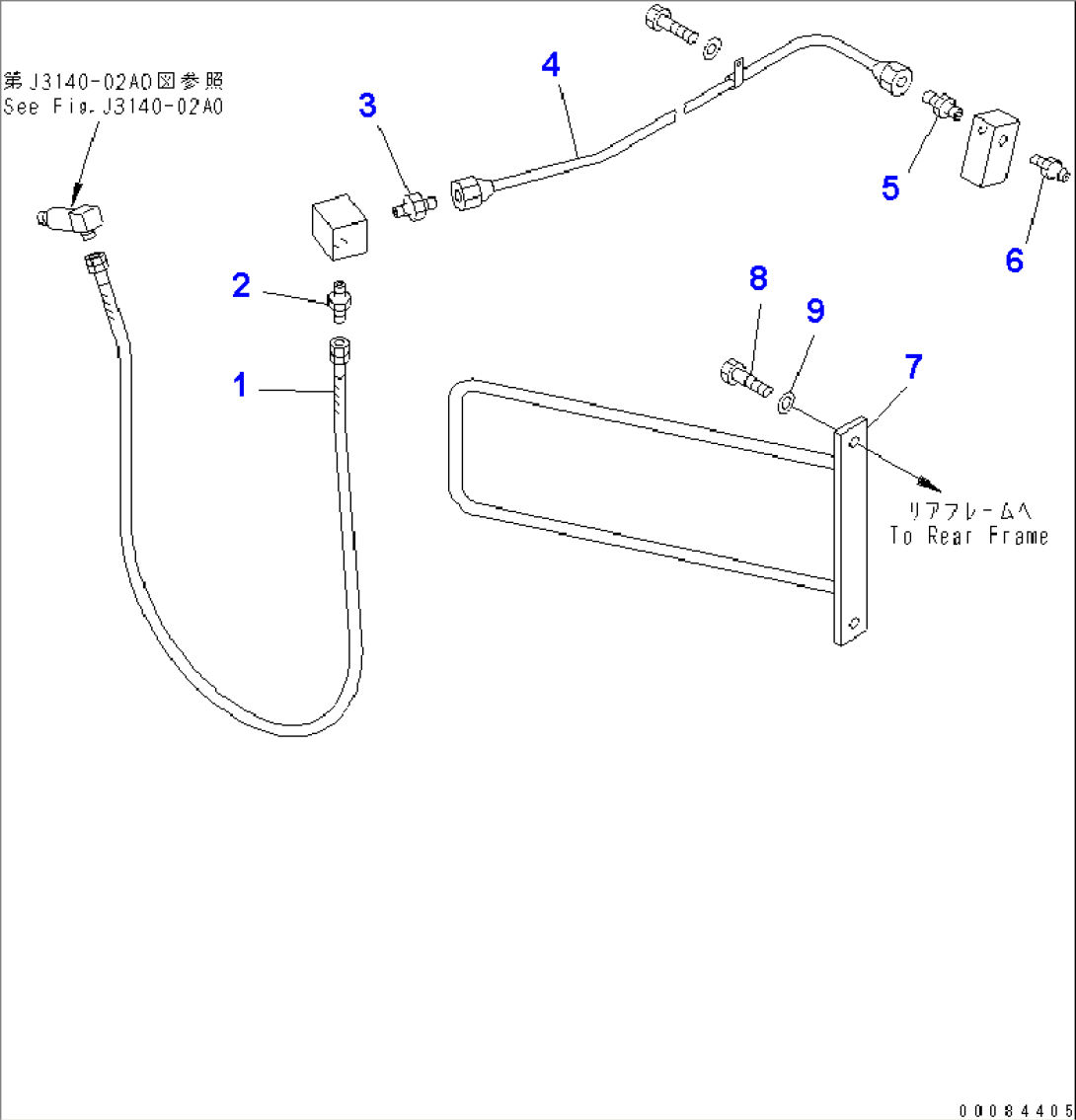

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-52-43210 | HOSE | 2001- | |
| 2 | 566-52-43290 | NIPPLE | 2462- | |
| 3 | 423-09-12110 | CONNECTOR | 2001- | |
| 4 | 56B-52-22431 | TUBE | 2462- | |
| 5 | 423-09-12110 | CONNECTOR | 2001- | |
| 6 | 07020-00000 | FITTING | 2001- | |
| 7 | 56B-52-22440 | BRACKET | 2462- | |
| 8 | 01010-81020 | BOLT | 2462- | |
| 9 | 01643-31032 | WASHER | 2462- |
