| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1H-00111) | PUMP ASS'Y | 60001- | ||

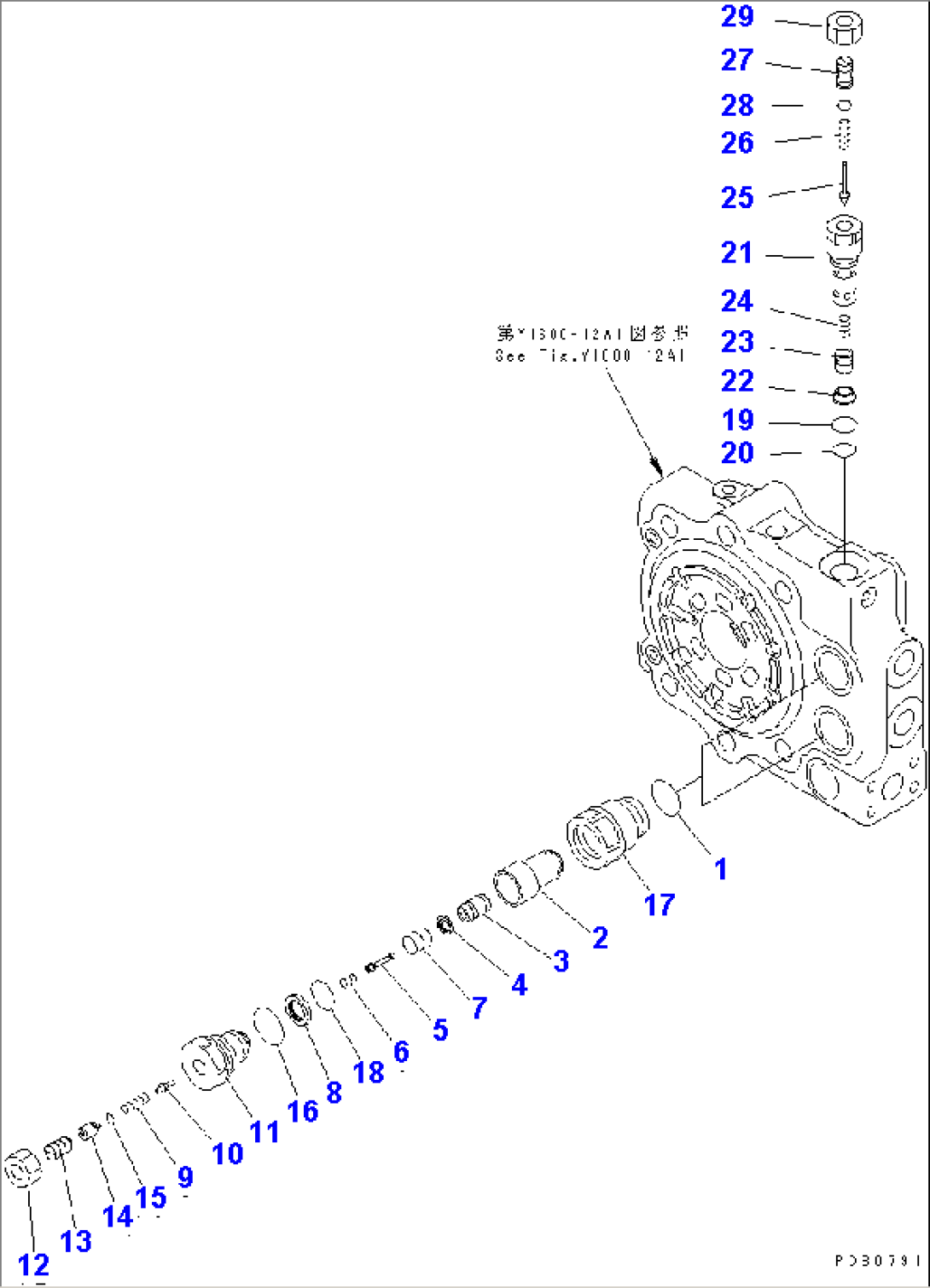

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-11A1 TO Y1600-15A1. | ||||
| 708-1H-02110 | VALVE ASS'Y | 60001- | ||
| 1 | 07002-03634 | O-RING | 60001- | |
| 2 | \6\ | SLEEVE | 60001- | |
| 3 | \6\ | POPPET | 60001- | |
| 4 | \6\ | SEAL | 60001- | |
| 5 | \6\ | PISTON | 60001- | |
| 6 | \6\ | SPRING | 60001- | |
| 7 | \6\ | SPRING | 60001- | |
| 8 | \6\ | SEAL | 60001- | |
| 9 | \6\ | SPRING | 60001- | |
| 10 | \6\ | POPPET | 60001- | |
| 11 | \6\ | PLUG | 60001- | |
| 12 | \6\ | NUT | 60001- | |
| 13 | \6\ | SCREW | 60001- | |
| 14 | \6\ | SPACER | 60001- | |
| 15 | \6\ | O-RING | 60001- | |
| 16 | \6\ | O-RING | 60001- | |
| 17 | \6\ | SLEEVE | 60001- | |
| 18 | \6\ | O-RING | 60001- | |
| 708-1H-02032 | VALVE ASS'Y | 60001- | ||
| 19 | 07002-02434 | O-RING | 60001- | |
| 20 | 720-68-19760 | O-RING | 60001- | |
| 21 | \6\ | SLEEVE | 60001- | |
| 22 | \6\ | RETAINER | 60001- | |
| 23 | \6\ | VALVE | 60001- | |
| 24 | \6\ | SPRING | 60001- | |
| 25 | \6\ | POPPET | 60001- | |
| 26 | \6\ | SPRING | 60001- | |
| 27 | \6\ | SCREW | 60001- | |
| 28 | \6\ | O-RING | 60001- | |
| 29 | \6\ | NUT | 60001- |
