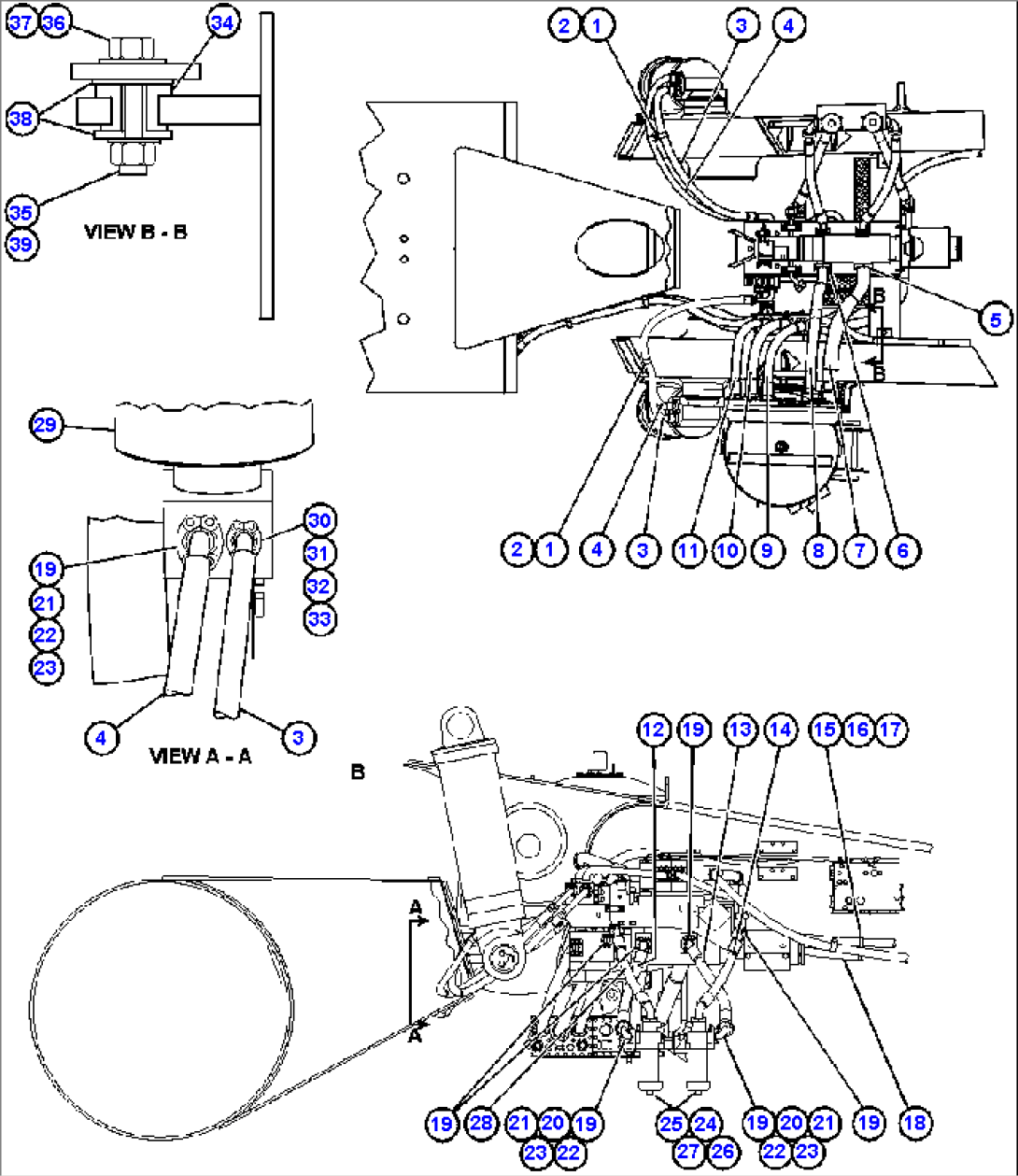

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VC7673 | CLAMP | ||
| 2 | VL9602 | CLAMP | ||
| 3 | HA6330 | HOSE | ||
| 4 | HA6340 | HOSE | ||
| 5 | WA0245 | O-RING | ||
| 6 | WA0237 | O-RING | ||
| 7 | HA7707 | HOSE | ||
| 8 | HA7387 | HOSE | ||
| 9 | HA7704 | HOSE | ||
| 10 | HA7705 | HOSE | ||
| 11 | HA7706 | HOSE | ||
| 12 | HA7602 | HOSE | ||
| 13 | HA6250 | HOSE | ||
| 14 | HA7730 | HOSE | ||
| 15 | VW0967 | CLAMP | ||
| 16 | MM0461 | FLAT WASHER - M10 | ||
| 17 | MM0178 | NUT - M10 X 1.50 | ||
| 18 | HA7708 | HOSE | ||
| 19 | WA0187 | O-RING | ||
| 20 | PB8318 | ELBOW | ||
| 21 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 22 | C1540 | LOCKWASHER - 1/2" | ||
| 23 | TF3231 | CLAMP, SPLIT FLANGE | ||
| 24 | EH1241 | FILTER ASSEMBLY (HOIST/BRAKE COOLING) (SEE INDEX) | ||
| 25 | EH1551 | PAD, RUBBER | ||
| 26 | TL5327 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 27 | WA0360 | FLAT WASHER - 1/2" | ||
| 28 | HA7697 | HOSE | ||
| 29 | EJ5954 | HOIST CYLINDER ASSEMBLY (SEE INDEX) | ||
| 30 | C1609 | CAPSCREW - 7/16" - 14NC X 1 1/2" | ||
| 31 | C5775 | LOCKWASHER - 7/16" | ||
| 32 | TF3237 | CLAMP, SPLIT FLANGE | ||
| 33 | VG9096 | O-RING | ||
| 34 | VG7000 | MOUNT, CENTER BONDED | ||
| 35 | C1525 | NUT - 5/8" - 11NC | ||
| 36 | C1637 | CAPSCREW - 5/8" - 11NC X 3 3/4" | ||
| 37 | WA0361 | FLAT WASHER - 5/8" (HARDENED) | ||
| 38 | TD5915 | FLAT WASHER | ||
| 39 | C1541 | LOCKWASHER - 5/8" |
