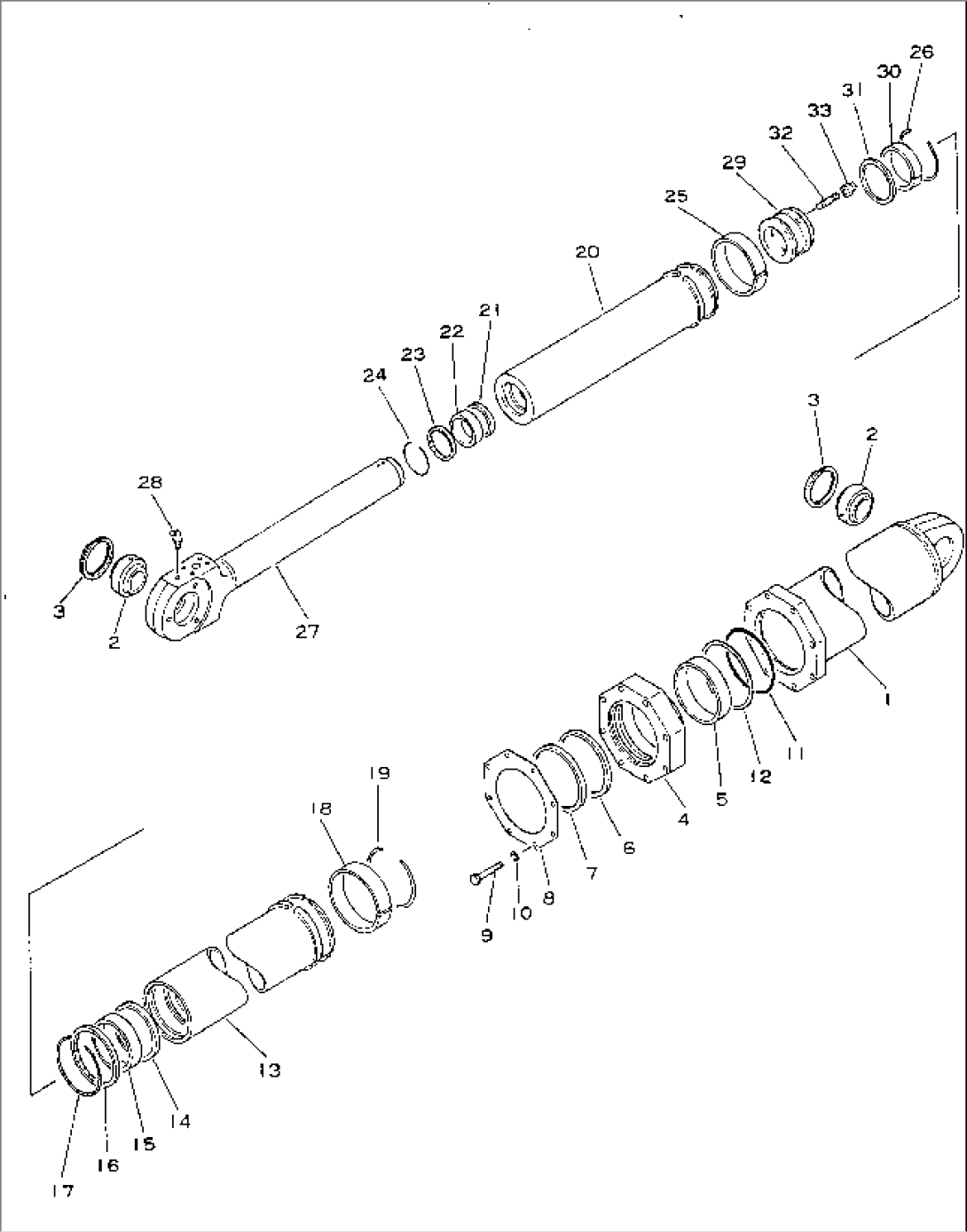

| Item | Part No. | Part Name | Qty | Serial No. |
| 568-63-23101 | CYLINDER ASS'Y | 1002- | ||
| 1 | 568-63-23141 | CYLINDER | 1002- | |
| 2 | 569-63-22880 | BUSHING | 1002- | |
| 3 | 707-73-13010 | RING | 1002- | |
| 4 | 568-63-23130 | HEAD | 1002- | |
| 5 | 568-63-22190 | BUSHING | 1002- | |
| 6 | 568-63-22180 | PACKING | 1002- | |
| 7 | 568-63-22570 | SEAL | 1002- | |
| 8 | 568-63-23160 | PLATE | 1002- | |
| 9 | 01010-52010 | BOLT | 1002- | |
| 10 | 01602-22060 | WASHER | 1002- | |
| 11 | 07000-15250 | O-RING | 1002- | |
| 12 | 07001-05250 | RING | 1002- | |
| 13 | 568-63-23241 | CYLINDER | 1002- | |
| 14 | 568-63-22280 | PACKING | 1002- | |
| 15 | 568-63-22390 | BUSHING | 1002- | |
| 16 | 568-63-22670 | SEAL | 1002- | |
| 17 | 568-63-22770 | RING | 1002- | |
| 18 | 568-63-22480 | RING | 1002- | |
| 19 | 568-63-23270 | RING | 1002- | |
| 20 | 568-63-23341 | CYLINDER | 1002- | |
| 21 | 568-63-22380 | PACKING | 1002- | |
| 22 | 07177-01140 | BUSHING | 1002- | |
| 23 | 07016-01109 | SEAL | 1002- | |
| 24 | 07179-00135 | RING | 1002- | |
| 25 | 568-63-22580 | RING | 1002- | |
| 26 | 568-63-23370 | RING | 1002- | |
| 27 | 568-63-23122 | ROD | 1002- | |
| 28 | 07020-00675 | FITTING | 1002- | |
| 29 | 568-63-23171 | PISTON | 1002- | |
| 30 | 07155-01640 | RING | 1002- | |
| 31 | 07161-10160 | RING | 1002- | |
| 32 | 01124-82260 | STUD | 1002- | |
| 33 | 07165-12222 | NUT | 1002- |
