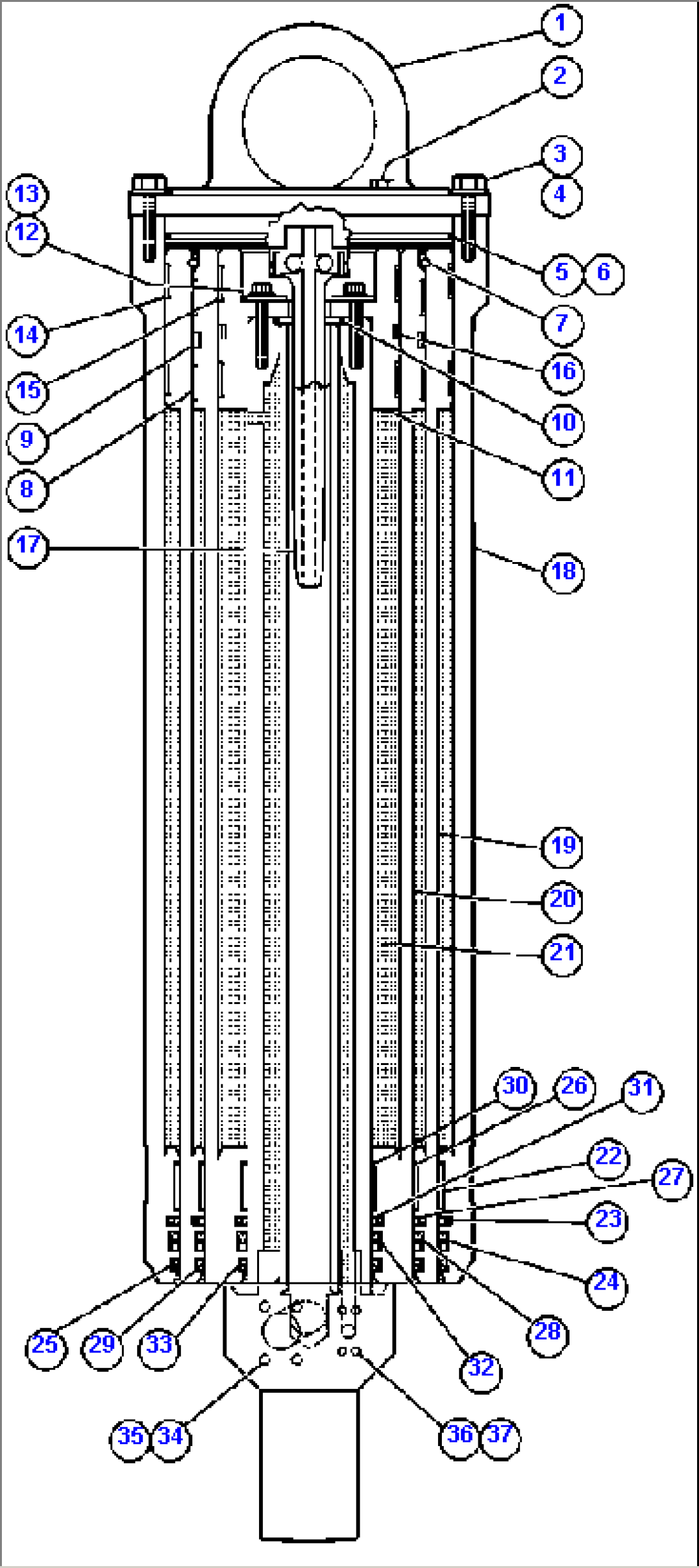

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TY4694 | HEAD, CYLINDER | ||
| 2 | VM2202 | PLUG, VENT | ||
| 3 | VN9088 | CAPSCREW - 7/8" - 9NC X 2 1/2" | ||
| 4 | WA0363 | FLAT WASHER - 7/8" (HARDENED) | ||
| 5 | WA0456 | SEAL, O-RING (1) | ||
| 6 | WA1456 | RING, BACKUP (1) | ||
| 7 | PB6791 | SNAP RING (1) | ||
| 8 | PB6561 | BEARING (1) | ||
| 9 | PB8617 | SEAL (1) | ||
| 10 | TY1503 | SEAL | ||
| 11 | EG9091 | RETAINER, BEARING | ||
| 12 | WA0879 | CAPSCREW - 7/8" - 9NC X 2 1/2" | ||
| 13 | EG9090 | PLATE | ||
| 14 | PB6792 | BEARING (1) | ||
| 15 | PB6555 | BEARING (1) | ||
| 16 | PB8615 | SEAL (1) | ||
| 17 | ED5213 | QUILL ASSEMBLY | ||
| 17 | EB8590 | PLUG | ||
| 17 | ED5210 | QUILL | ||
| 17 | 722187 | POPPET, BALL | ||
| 18 | EG1222 | HOUSING | ||
| 19 | EF8372 | TUBE | ||
| 20 | EF8374 | TUBE | ||
| 21 | EG9087 | ROD, PIVOT | ||
| 22 | PB9810 | BEARING (1) | ||
| 23 | PB6795 | SEAL (1) | ||
| 24 | PB6796 | SEAL (1) | ||
| 25 | PB9807 | WIPER (1) | ||
| 26 | PB9806 | BEARING (1) | ||
| 27 | PB6558 | SEAL (1) | ||
| 28 | PB6559 | SEAL (1) | ||
| 29 | PB9803 | WIPER (1) | ||
| 30 | PB9802 | BEARING (1) | ||
| 31 | PB6799 | SEAL (1) | ||
| 32 | PB6800 | SEAL (1) | ||
| 33 | PB9799 | WIPER (1) | ||
| 34 | WA2703 | COVER, FLANGE HEAD (1) | ||
| 35 | VN6410 | CAPSCREW - 7/16" - 14NC X 5/8" (1) | ||
| 36 | WA2705 | COVER, FLANGE HEAD (1) | ||
| 37 | C1611 | CAPSCREW - 1/2" - 13NC X 3/4" (1) | ||
| NS|41 | AK4127 | NOTE: (1) INCLUDED IN AK4127 REPAIR KIT. |
