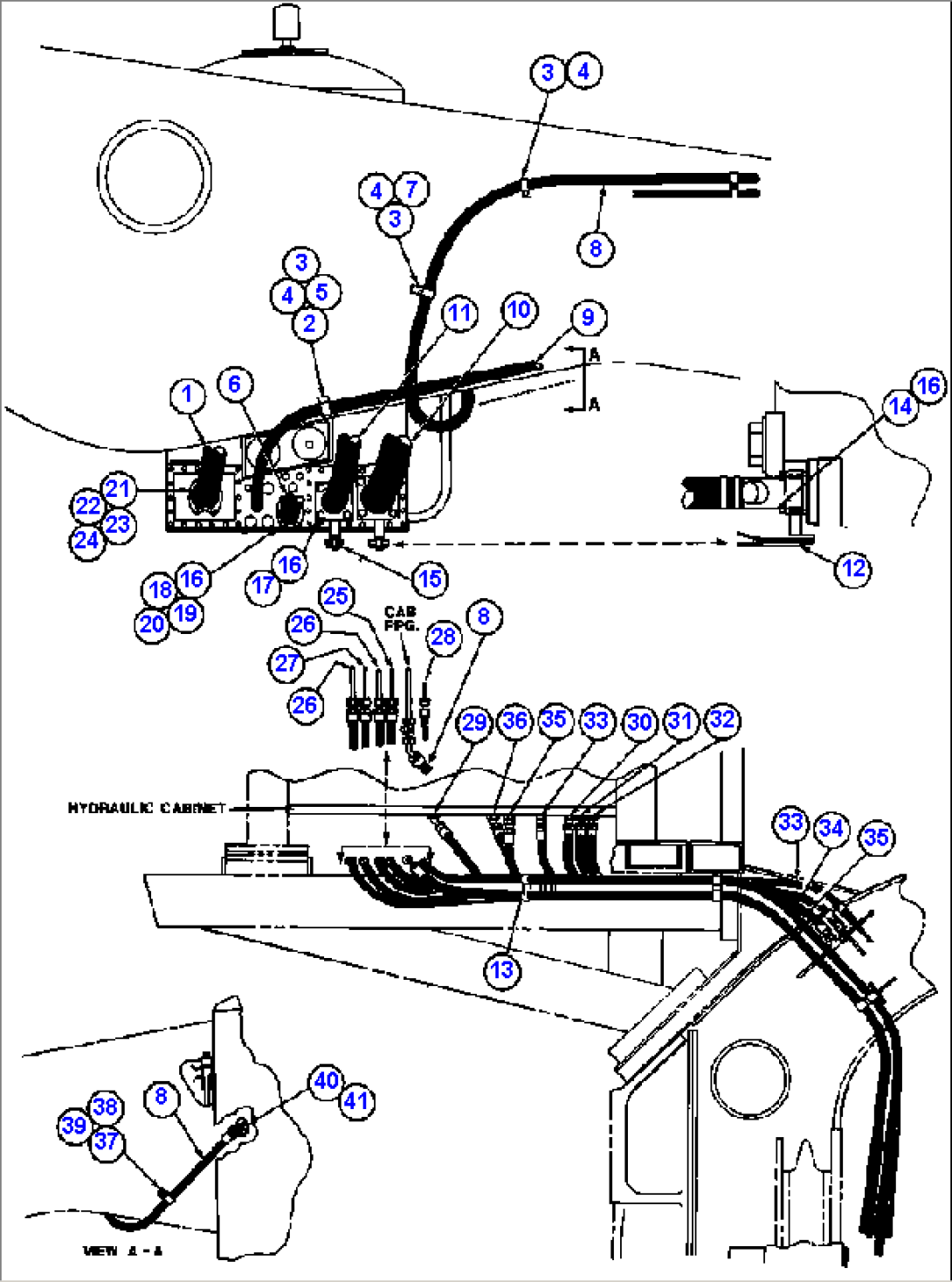

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA6228 | HOSE | ||
| 2 | TF6924 | CLAMP | ||
| 3 | TR9441 | CLAMP | ||
| 4 | HE5611 | LOCKNUT - 3/8" | ||
| 5 | WA0720 | FLAT WASHER - 3/8" | ||
| 6 | HA6229 | HOSE | ||
| 7 | TY8375 | SPACER | ||
| 8 | HA6254 | HOSE | ||
| 9 | HA6227 | HOSE (SEE # 29, STEERING SYSTEM PIPING PG) | ||
| 10 | TY8365 | HOSE | ||
| 11 | TY8367 | HOSE | ||
| 12 | TK8285 | BUTTERFLY VALVE | ||
| 13 | TZ2225 | BRACKET | ||
| 14 | C1622 | CAPSCREW - 1/2" - 13NC X 3 1/2" | ||
| 15 | TZ5136 | BUTTERFLY VALVE | ||
| 16 | C1540 | LOCKWASHER - 1/2" | ||
| 17 | C1620 | CAPSCREW - 1/2" - 13NC X 3" | ||
| 18 | VH6718 | FLANGE, SPLIT | ||
| 19 | WA0232 | SEAL, O-RING | ||
| 20 | C1615 | CAPSCREW - 1/2" - 13NC X 1 3/4" | ||
| 21 | VL9963 | FLANGE, SPLIT | ||
| 22 | WA0237 | SEAL, O-RING | ||
| 23 | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | ||
| 24 | C1541 | LOCKWASHER - 5/8" | ||
| 25 | HA6238 | HOSE | ||
| 26 | HA6235 | HOSE | ||
| 27 | HA6236 | HOSE | ||
| 28 | HA6225 | HOSE | ||
| 29 | HA6255 | HOSE | ||
| 30 | HA6232 | HOSE | ||
| 31 | HA6233 | HOSE | ||
| 32 | HA6234 | HOSE | ||
| 33 | HA5753 | HOSE | ||
| 34 | HA5568 | HOSE | ||
| 35 | HA6220 | HOSE | ||
| 36 | HA6295 | HOSE | ||
| 37 | C1606 | CAPSCREW - 3/8" - 16NC X 2" | ||
| 38 | C1521 | NUT - 3/8" - 16NC | ||
| 39 | VN9908 | CLAMP | ||
| 40 | HD8019 | BUSHING, PIPE | ||
| 41 | TG9238 | FITTING, TUBE |
