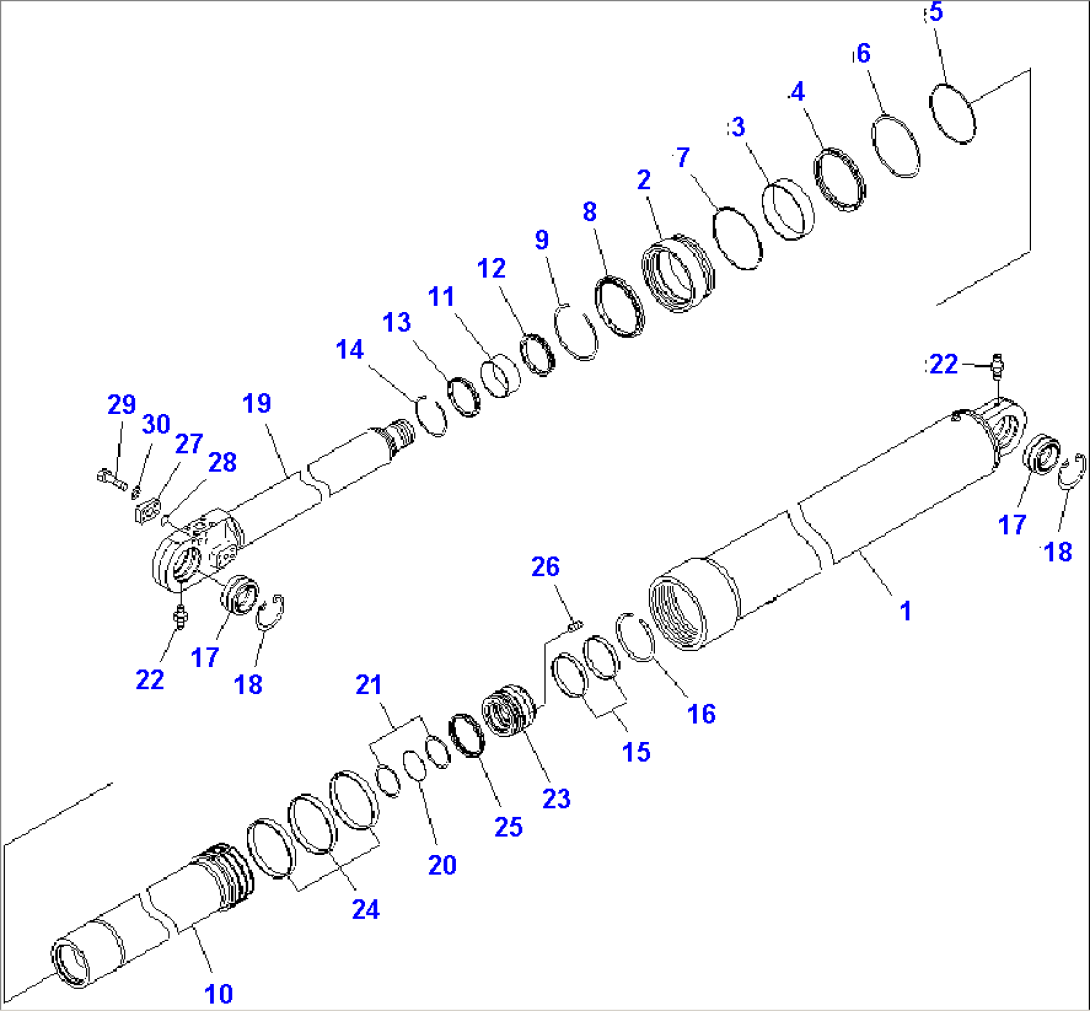

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-09-07061 | CYLINDER ASS'Y,(FINAL COATING) | 2001- | ||
| 707-09-00051 | CYLINDER ASS'Y | 2001- | ||
| 1 | 707-18-15180 | CYLINDER,(I) | 2001- | |
| 2 | 707-29-15360 | HEAD,CYLINDER | 2001- | |
| 3 | 707-52-11360 | BUSHING | 2001- | |
| 4 | 707-51-13730 | PACKING,ROD (KIT) | 2001- | |
| 5 | 07000-55160 | O-RING (KIT) | 2001- | |
| 6 | 707-35-52520 | RING,BACK-UP (KIT) | 2001- | |
| 7 | 07000-55170 | O-RING (KIT) | 2001- | |
| 8 | 707-56-13520 | SEAL,DUST (KIT) | 2001- | |
| 9 | 07179-14146 | RING,SNAP | 2001- | |
| 10 | 707-18-11050 | CYLINDER,(II) | 2001- | |
| 11 | 07177-09040 | BUSHING | 2001- | |
| 12 | 707-51-90730 | U-PACKING,ROD (KIT) | 2001- | |
| 13 | 195-63-94170 | SEAL,DUST (KIT) | 2001- | |
| 14 | 07179-13104 | RING,SNAP | 2001- | |
| 15 | 707-39-11100 | RING,WEAR (KIT) | 2001- | |
| 16 | 707-88-35310 | RING,SNAP | 2001- | |
| 17 | 566-63-22291 | BUSHING | 2001- | |
| 18 | 04065-09030 | RING,SNAP | 2001- | |
| 19 | 707-61-90220 | ROD,PISTON | 2001- | |
| 20 | 07000-55070 | O-RING (KIT) | 2001- | |
| 21 | 707-35-90360 | RING,BACK-UP (KIT) | 2001- | |
| 22 | 07020-00000 | FITTING,GREASE | 2001- | |
| 23 | 707-36-11821 | PISTON | 2001- | |
| 24 | 707-39-15100 | RING,WEAR (KIT) | 2001- | |
| 25 | 707-44-11180 | RING,PISTON (KIT) | 2001- | |
| 26 | 01310-01016 | SCREW | 2001- | |
| 27 | 707-88-33960 | PLATE | 2001- | |
| 28 | 07000-53022 | O-RING (KIT) | 2001- | |
| 29 | 01010-80830 | BOLT | 2001- | |
| 30 | 01643-50823 | WASHER | 2001- | |
| SERVICE KIT | ||||
| K | 707-99-56531 | SERVICE KIT,HOIST CYLINDER | 2001- |
