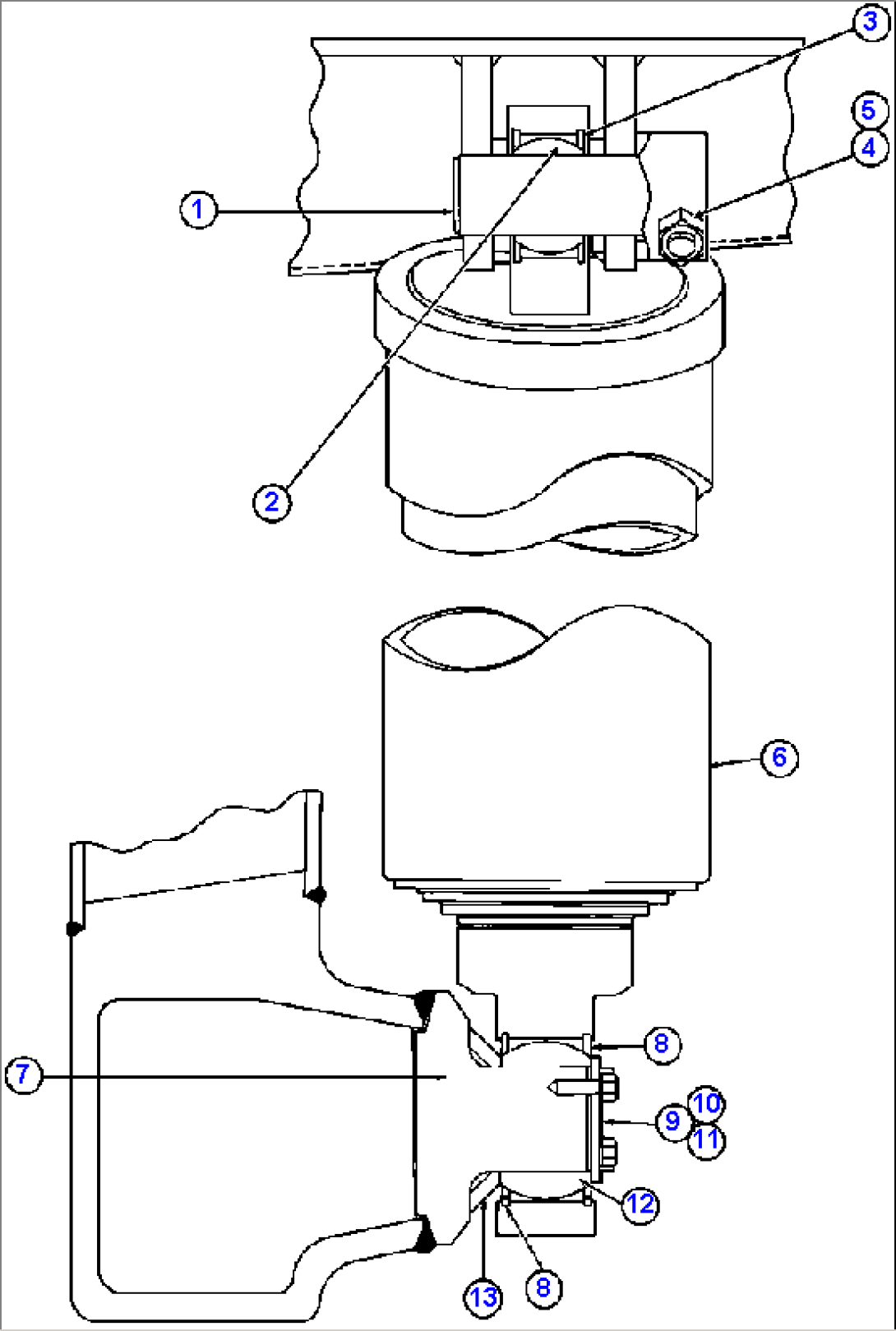

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH7921 | PIN, UPPER HOIST | ||
| 2 | VL4293 | BUSHING, BALL | ||
| 3 | VN9350 | RING, RETAINER | ||
| 4 | MM0149 | CAPSCREW - M36 X 4.00 X 200 | ||
| 5 | MM0700 | LOCKNUT - M36 X 4.00 | ||
| 6 | EH7926 | HOIST CYLINDER ASSEMBLY (SEE INDEX) | ||
| 7 | ED3070 | SHAFT, HOIST BEARING | ||
| 8 | VN9353 | RING, RETAINER | ||
| 9 | EF4836 | PLATE, RETAINER | ||
| 10 | EF4837 | PLATE, LOCKING | ||
| 11 | MM0021 | CAPSCREW - M20 X 2.50 X 40 | ||
| 12 | PB8931 | BUSHING, BALL | ||
| 13 | EF4835 | SPACER, BEARING | ||
| NS|14 | NOTE: NS = NOT SHOWN | |||
| NS|15 | TZ2549 | COVER, HOIST CYLINDER - HOSES | ||
| NS|16 | TZ3107 | CLAMP, COVER |
