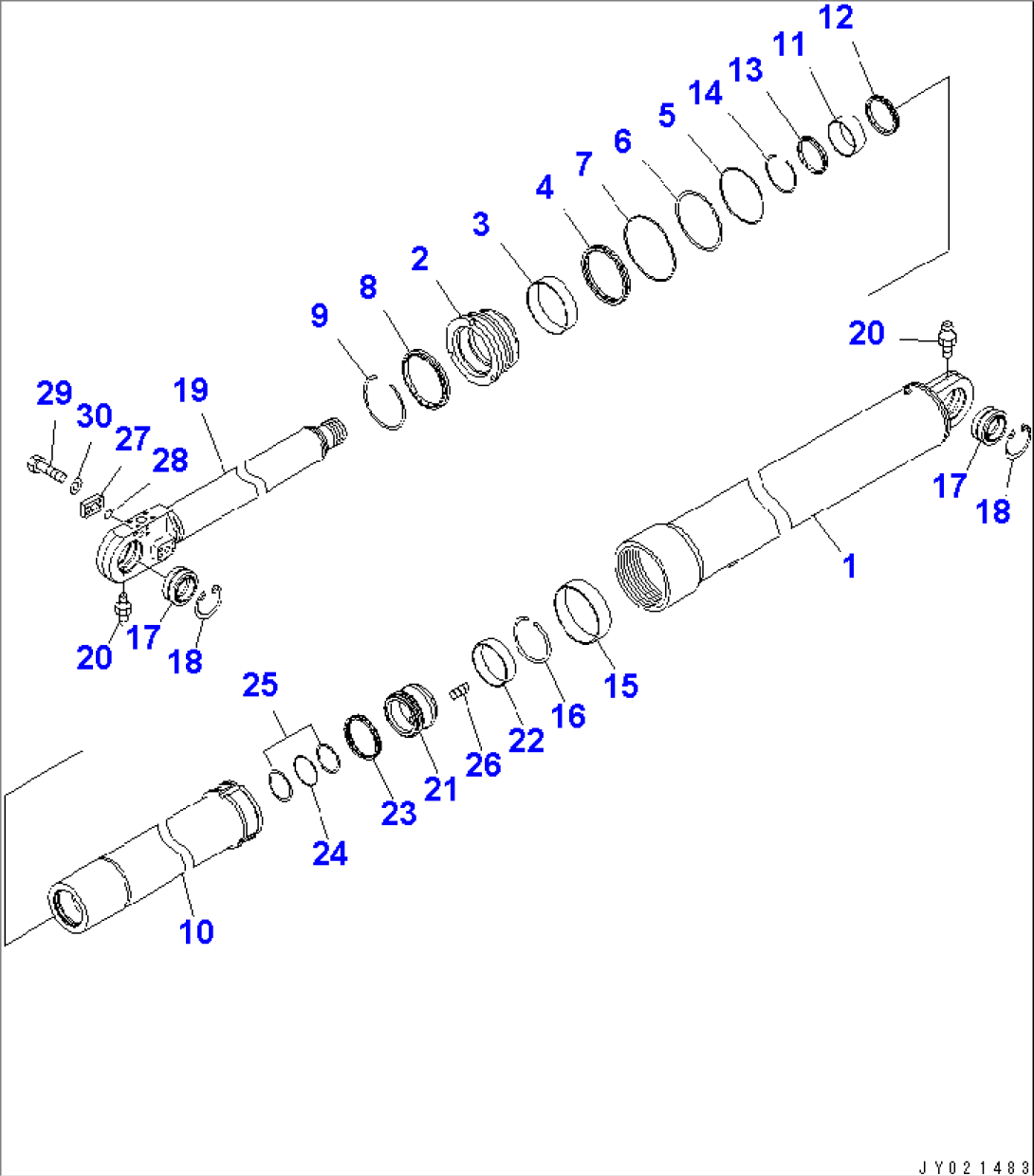

| Item | Part No. | Part Name | Qty | Serial No. |
| (\8\707-09-07040) | CYLINDER ASS'Y,(FINAL COATING) | 1001-1032 | ||
| 707-09-00030 | CYLINDER ASS'Y | 1001-1032 | ||
| 1 | 707-18-14010 | CYLINDER,(I) | 1001-1032 | |
| 2 | 707-29-14280 | HEAD,CYLINDER | 1001-@ | |
| 3 | 707-52-15810 | BUSHING | 1001-@ | |
| 4 | 707-51-12110 | PACKING,ROD (KIT) | 1001-@ | |
| 5 | 07000-15150 | O-RING (KIT) | 1001-@ | |
| 6 | 07146-05152 | RING,BACK-UP (KIT) | 1001-@ | |
| 7 | 07000-15160 | O-RING (KIT) | 1001-@ | |
| 8 | 707-56-12740 | SEAL,DUST (KIT) | 1001-@ | |
| 9 | 07179-13136 | RING,SNAP | 1001-@ | |
| 10 | 707-18-10010 | CYLINDER,(II) | 1001-1032 | |
| 11 | 707-52-15540 | BUSHING | 1001-@ | |
| 12 | 707-51-80211 | PACKING,ROD (KIT) | 1001-@ | |
| 13 | 707-56-80740 | SEAL,DUST (KIT) | 1001-@ | |
| 14 | 07179-13094 | RING,SNAP | 1001-@ | |
| 15 | 07155-01435 | RING,WEAR (KIT) | 1001-1032 | |
| 16 | 707-88-35410 | RING,SNAP | 1001-@ | |
| 17 | 566-63-22291 | BUSHING | 1001-@ | |
| 18 | 04065-09030 | RING,SNAP | 1001-@ | |
| 19 | 707-61-80520 | ROD,PISTON | 1001-@ | |
| 20 | 07020-00000 | FITTING,GREASE | 1001-@ | |
| 21 | 707-36-10730 | PISTON | 1001-1032 | |
| 22 | 707-39-10010 | RING,WEAR (KIT) | 1001-1032 | |
| 23 | 707-44-10180 | RING,PISTON (KIT) | 1001-@ | |
| 24 | 707-34-55020 | O-RING (KIT) | 1001-@ | |
| 25 | 707-35-90610 | RING (KIT) | 1001-@ | |
| 26 | 01310-01016 | SCREW | 1001-@ | |
| 27 | 707-88-33960 | PLATE | 1001-@ | |
| 28 | 07000-13022 | O-RING (KIT) | 1001-@ | |
| 29 | 01010-80830 | BOLT | 1001-@ | |
| 30 | 01643-50823 | WASHER | 1001-@ | |
| SERVICE KIT | ||||
| KIT | 707-99-54140 | SERVICE KIT | 1001-1032 |
