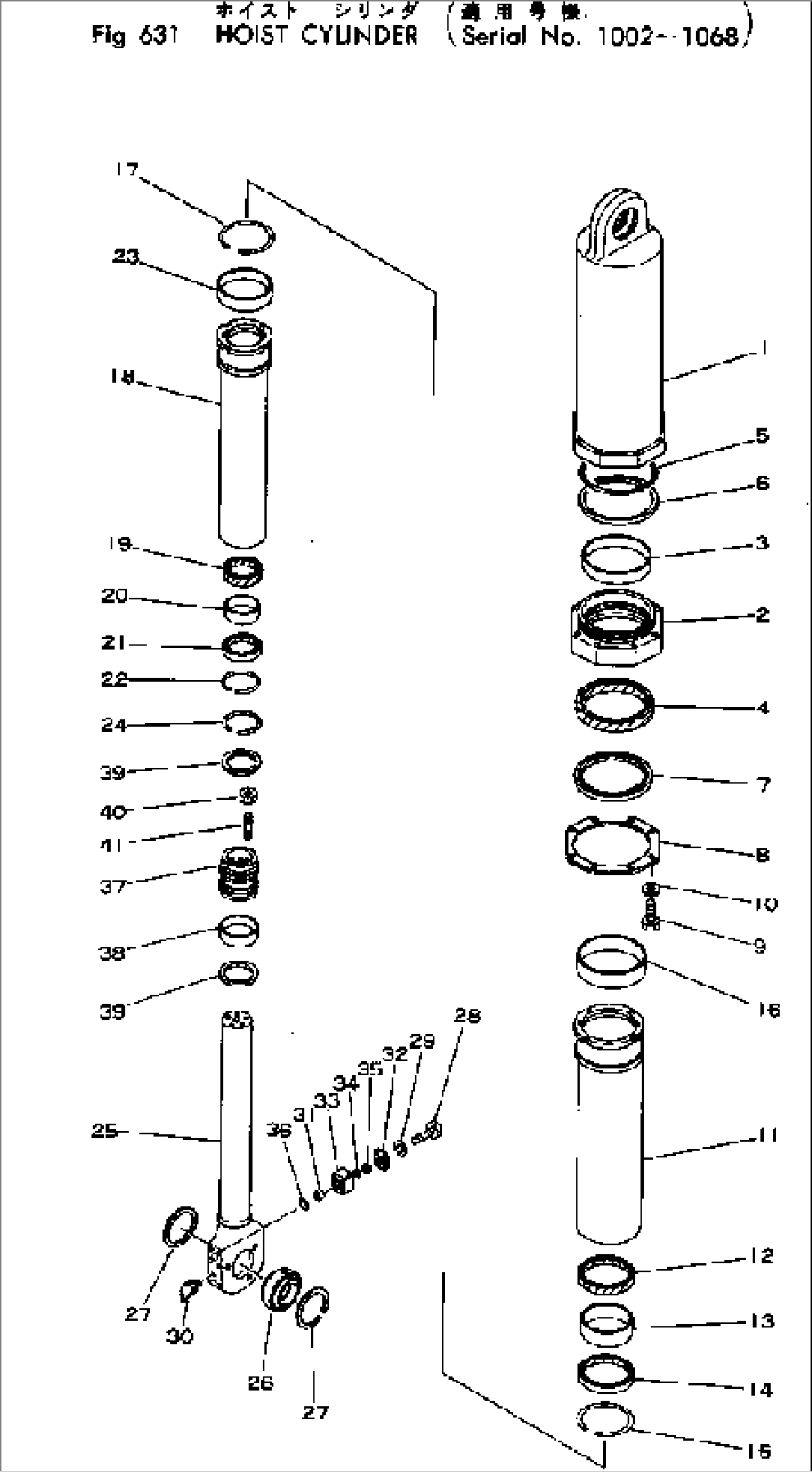

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-63-22101 | CYLINDER ASS'Y | 1002-1068 | ||
| 1 | 569-63-22140 | CYLINDER | 1002-1068 | |
| 2 | 569-63-22131 | HEAD | 1002-@ | |
| 3 | 568-63-22390 | BUSHING | 1002-@ | |
| 4 | 568-63-22280 | PACKING | 1002-@ | |
| 5 | 07000-15210 | O-RING | 1002-@ | |
| 6 | 07001-05210 | RING | 1002-@ | |
| 7 | 568-63-22670 | SEAL | 1002-@ | |
| 8 | 569-63-22160 | PLATE | 1002-@ | |
| 9 | 01010-52090 | BOLT | 1002-@ | |
| 10 | 01602-22060 | WASHER | 1002-@ | |
| 11 | 569-63-22241 | CYLINDER | 1002-1068 | |
| 12 | 569-63-22280 | PACKING | 1002-@ | |
| 13 | 569-63-22290 | BUSHING | 1002-@ | |
| 14 | 569-63-22670 | SEAL | 1002-@ | |
| 15 | 569-63-22270 | RING | 1002-@ | |
| 16 | 568-63-22580 | RING | 1002-@ | |
| 17 | 569-63-22460 | RING | 1002-@ | |
| 18 | 569-63-22341 | CYLINDER | 1002-1068 | |
| 19 | 569-63-22380 | PACKING | 1002-@ | |
| 20 | 07177-01035 | BUSHING | 1002-@ | |
| 21 | 07016-01008 | SEAL | 1002-@ | |
| 22 | 07179-00123 | RING | 1002-@ | |
| 23 | 569-63-22580 | RING | 1002-@ | |
| 24 | 569-63-22560 | RING | 1002-@ | |
| 25 | 569-63-22121 | ROD | 1002-@ | |
| 26 | 568-52-11160 | BUSHING | 1002-1068 | |
| 27 | 04071-00130 | RING | 1002-1068 | |
| 28 | 01010-51065 | BOLT | 1002-1068 | |
| 29 | 01602-21030 | WASHER | 1002-1068 | |
| 30 | 07020-00675 | FITTING | 1002-@ | |
| 31 | 569-63-22630 | VALVE | 1002-1068 | |
| 32 | 569-63-22640 | COVER | 1002-1068 | |
| 33 | 569-63-22650 | BODY | 1002-1068 | |
| 34 | 07000-13032 | O-RING | 1002-1068 | |
| 35 | 07001-03032 | RING | 1002-1068 | |
| 36 | 07000-13045 | O-RING | 1002-1068 | |
| 37 | 569-63-22360 | PISTON | 1002-@ | |
| 38 | 569-63-22680 | RING | 1002-@ | |
| 39 | 569-63-22470 | RING | 1002-1068 | |
| 40 | 07165-11618 | NUT | 1002-@ | |
| 41 | 01124-81645 | STUD | 1002-@ |
