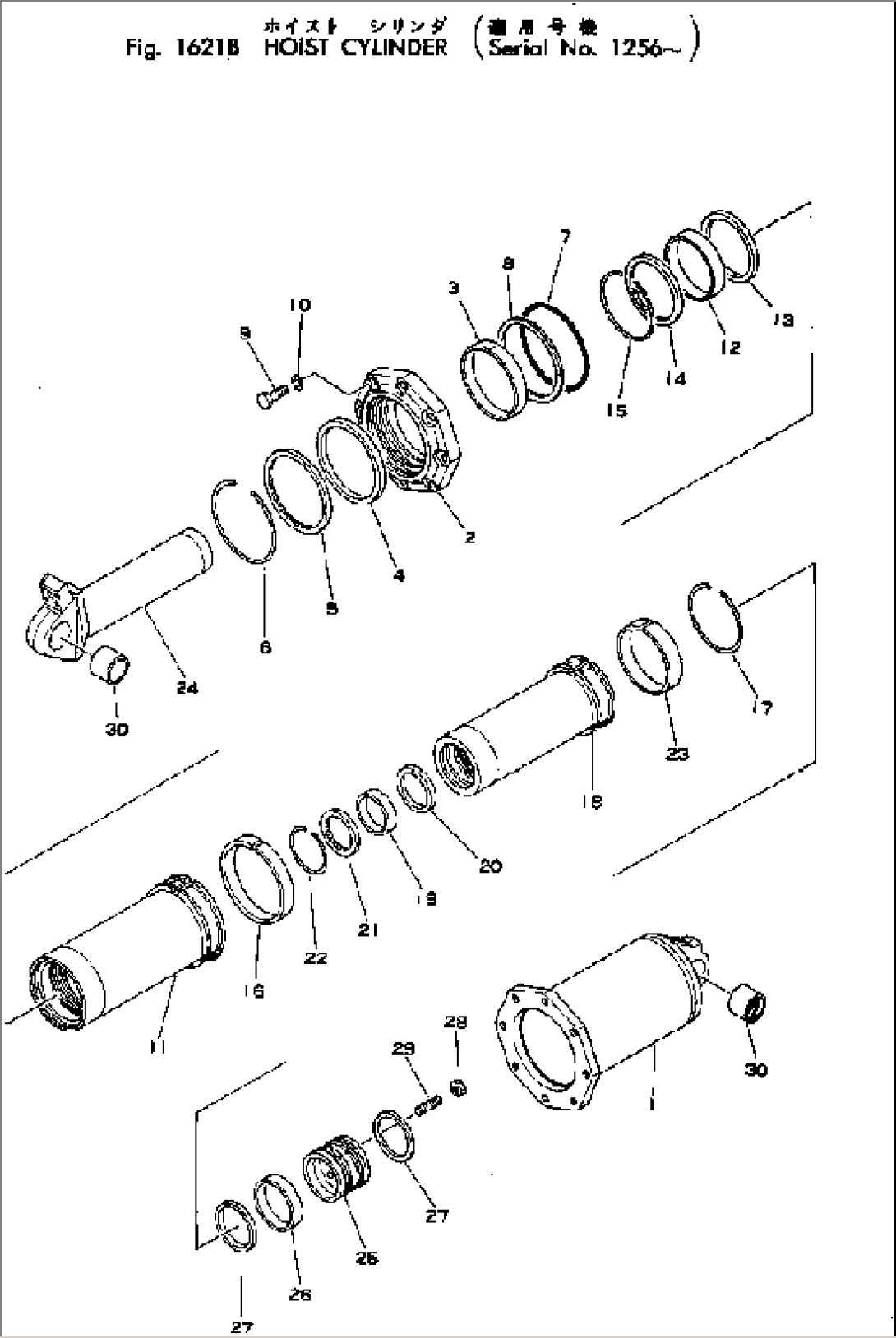

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-63-23101 | CYLINDER ASS'Y | 1424- | ||
| \0\567-63-23100 | CYLINDER ASS'Y | 1256-1423 | ||
| 1 | 567-63-22140 | CYLINDER,1ST | 935- | |
| 2 | 567-63-22130 | HEAD,CYLINDER | 935- | |
| 3 | 567-63-22190 | BUSHING | 935- | |
| 4 | 567-63-22180 | PACKING,ROD | 935- | |
| 5 | 567-63-22570 | SEAL,DUST | 935- | |
| 6 | 567-63-22760 | RING,SNAP | 935- | |
| 7 | 07000-15230 | O-RING | 935- | |
| 8 | 07001-05230 | RING,BACK-UP | 935- | |
| 9 | 01010-62075 | BOLT | 935- | |
| 10 | 01602-22060 | WASHER | 935- | |
| 11 | 567-63-23240 | CYLINDER,2ND | 1256- | |
| 12 | 566-63-22210 | BUSHING | 935- | |
| 13 | 566-09-31510 | PACKING,ROD | 935- | |
| 14 | 566-63-22240 | SEAL,DUST | 935- | |
| 15 | 567-63-22770 | RING,SNAP | 935- | |
| 16 | 567-63-22480 | RING,WEAR | 935- | |
| 17 | 567-63-22470 | RING,SNAP | 935- | |
| 18 | 567-63-23340 | CYLINDER,3RD | 1256- | |
| 19 | 07177-01135 | BUSHING | 935- | |
| 20 | 568-63-22380 | PACKING,ROD | 935- | |
| 21 | 07016-01109 | SEAL,DUST | 935- | |
| 22 | 07179-00135 | RING,SNAP | 935- | |
| 23 | 07155-01845 | RING,WEAR | 935- | |
| 24 | 567-63-23120 | ROD,PISTON | 1256- | |
| 25 | 567-63-23681 | PISTON | 1424- | |
| \0\567-63-23680 | PISTON | 1256-1423 | ||
| 26 | 07155-01435 | RING,WEAR | 935- | |
| 27 | 281-63-13230 | RING,PISTON | 935- | |
| 28 | 07165-12022 | NUT,NYLON | 935- | |
| 29 | 01124-82045 | STUD | 935- | |
| 30 | 567-63-22590 | BUSHING | 935- |
