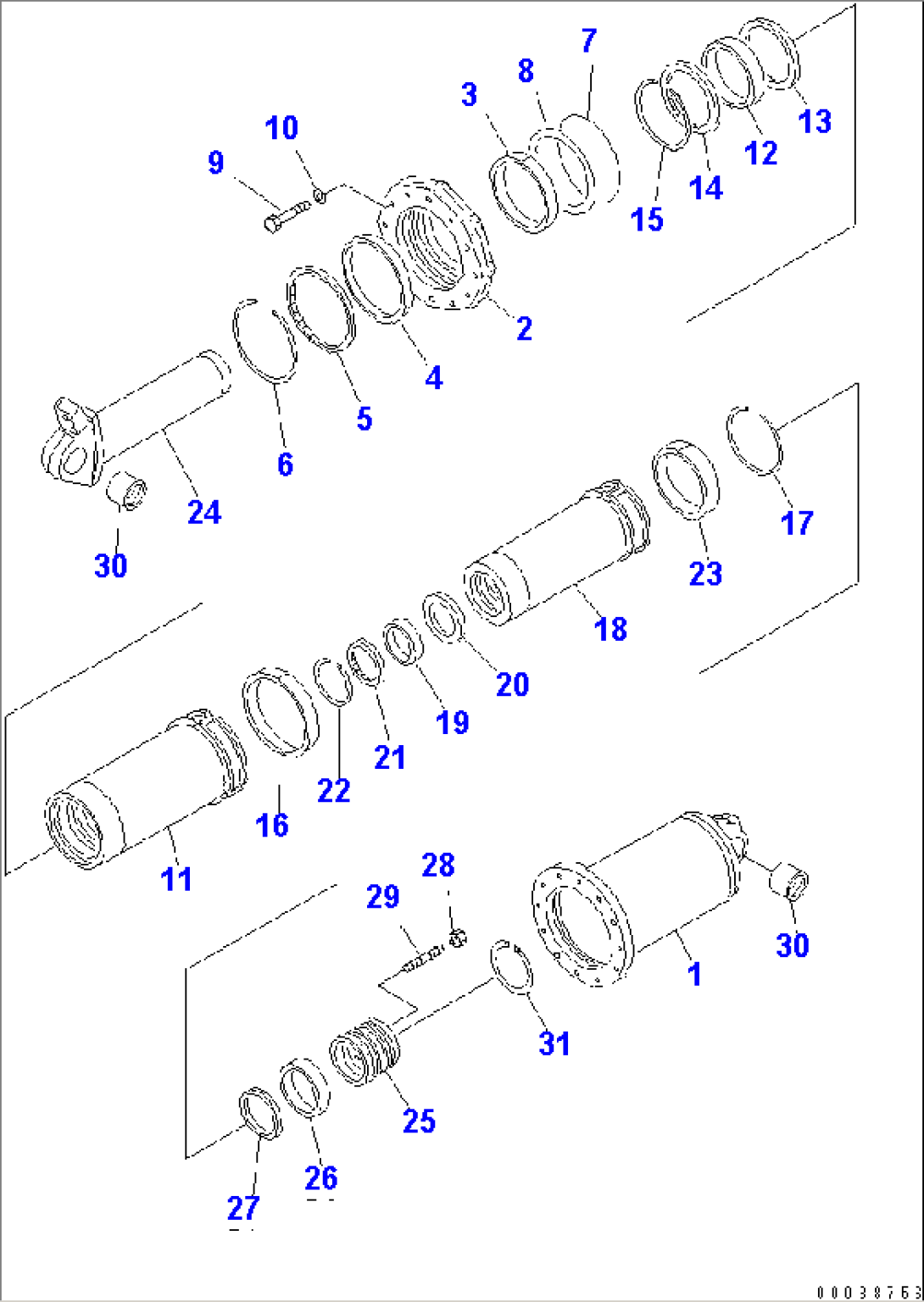

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-63-42101 | CYLINDER ASS'Y | 1370- | ||
| 1 | 567-63-42140 | CYLINDER | 1370- | |
| 1 | (\2\567-63-42541) | CYLINDER | (1370-1518) | |
| 2 | 567-63-23930 | HEAD,CYLINDER | 1370- | |
| 2 | (\2\567-63-42531) | HEAD | (1370-1518) | |
| 3 | 567-63-22190 | BUSHING | 1003- | |
| 4 | 567-63-22180 | PACKING,ROD (KIT) | 1003- | |
| 5 | 567-63-22571 | SEAL,DUST (KIT) | 1370- | |
| 6 | 07179-15230 | RING,SNAP | 1370- | |
| 7 | 07000-15230 | O-RING (KIT) | 1003- | |
| 8 | 07001-05230 | RING,BACK-UP (KIT) | 1003- | |
| 9 | 01011-82000 | BOLT | 1370- | |
| 10 | 01643-32060 | WASHER | 1370- | |
| 11 | 567-63-42150 | CYLINDER | 1370- | |
| 12 | 566-63-22210 | BUSHING | 1003- | |
| 13 | 566-09-31510 | PACKING,ROD (KIT) | 1003- | |
| 14 | 566-63-22241 | SEAL,DUST (KIT) | 1370- | |
| 15 | 07179-14180 | RING,SNAP | 1370- | |
| 16 | 567-63-22480 | RING,WEAR (KIT) | 1003- | |
| 17 | 561-63-22770 | RING,SNAP | 1370- | |
| 18 | 567-63-42161 | CYLINDER | 1370- | |
| 18 | (\2\567-63-42160) | CYLINDER | (1370-1518) | |
| 19 | 07177-01135 | BUSHING | 1003- | |
| 20 | 568-63-22380 | PACKING,ROD (KIT) | 1003- | |
| 21 | 198-63-94170 | SEAL,DUST (KIT) | 1370- | |
| 22 | 07179-13126 | RING,SNAP | 1370- | |
| 23 | 07155-01845 | RING,WEAR (KIT) | 1003- | |
| 24 | 567-63-42120 | ROD,PISTON | 1370- | |
| 25 | 567-63-42170 | PISTON | 1370- | |
| 26 | 07155-01435 | RING,WEAR (KIT) | 1003- | |
| 27 | 707-44-14070 | RING,PISTON (KIT) | 1519- | |
| 27 | 07161-10140 | RING | 1370-1518 | |
| 28 | 07165-12022 | NUT,NYLON | 1003- | |
| 29 | 01124-82060 | STUD | 1370- | |
| 30 | 567-63-22590 | BUSHING | 1003- | |
| 31 | 561-63-22780 | RING,SNAP | 1370- | |
| SERVICE KIT | ||||
| KIT | 707-99-59100 | SERVICE KIT | 1370- |
