| Item | Part No. | Part Name | Qty | Serial No. |

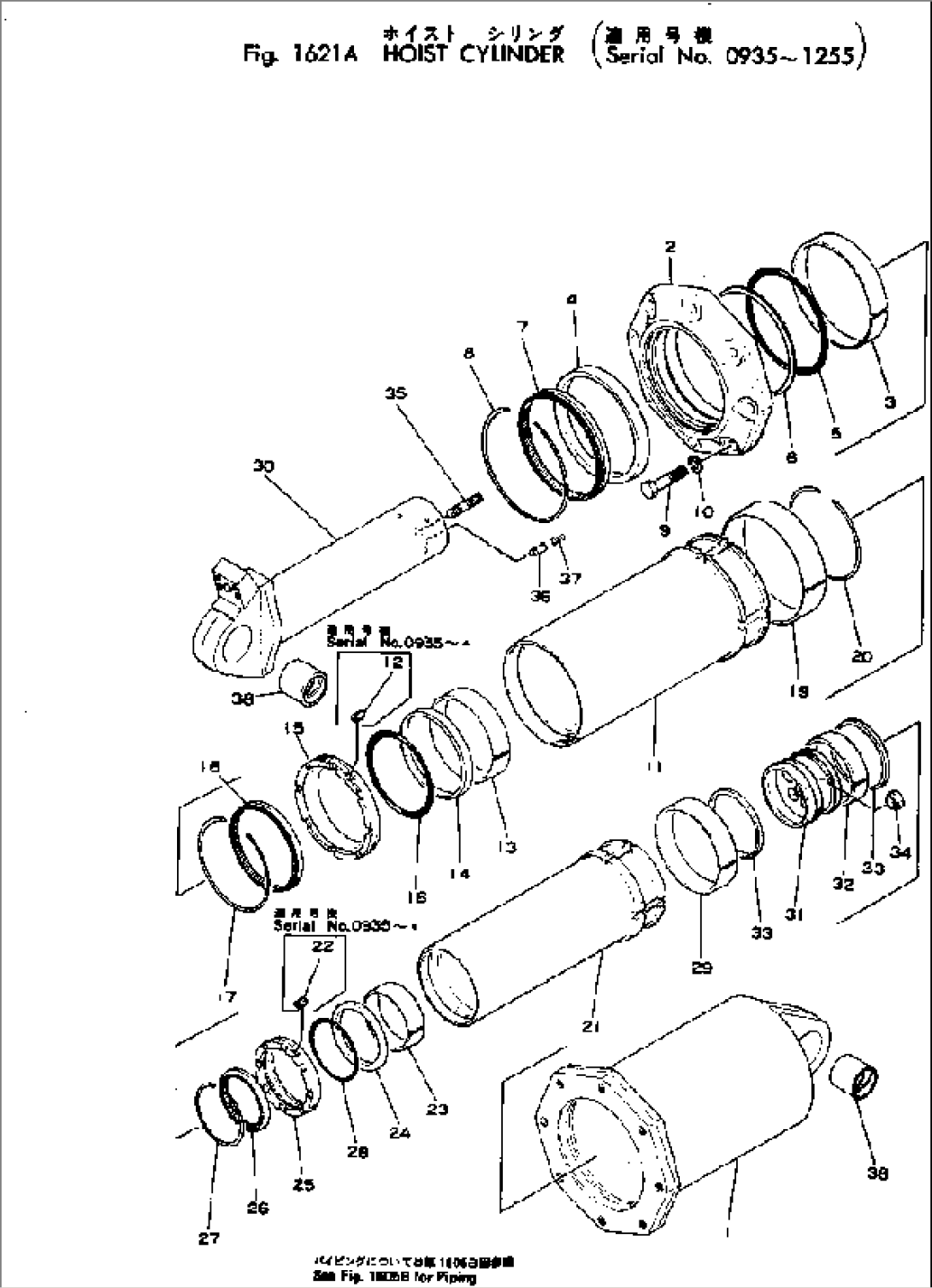

| 567-63-22100 | CYLINDER ASS'Y | 935-1255 | ||
| 1 | 567-63-22140 | CYLINDER,1ST | 935-@ | |
| 2 | 567-63-22130 | HEAD,CYLINDER | 935-@ | |
| 3 | 567-63-22190 | BUSHING | 935-@ | |
| 4 | 567-63-22180 | PACKING,ROD | 935-@ | |
| 5 | 07000-15230 | O-RING | 935-@ | |
| 6 | 07001-05230 | RING,BACK-UP | 935-@ | |
| 7 | 567-63-22570 | SEAL,DUST | 935-@ | |
| 8 | 567-63-22760 | RING,SNAP | 935-@ | |
| 9 | 01010-62075 | BOLT | 935-@ | |
| 10 | 01602-22060 | WASHER | 935-@ | |
| 11 | 567-63-22240 | CYLINDER,2ND | 935-1255 | |
| 12 | 01320-40408 | SCREW | 935-. | |
| 13 | 566-63-22210 | BUSHING | 935-@ | |
| 14 | 566-09-31510 | PACKING,ROD | 935-@ | |
| 15 | 567-63-22270 | GLAND | 935-1255 | |
| 16 | 566-63-22240 | SEAL,DUST | 935-@ | |
| 17 | 567-63-22770 | RING,SNAP | 935-@ | |
| 18 | 567-63-22460 | O-RING | 935-1255 | |
| 19 | 567-63-22480 | RING,WEAR | 935-@ | |
| 20 | 567-63-22470 | RING,SNAP | 935-@ | |
| 21 | 567-63-22340 | CYLINDER,3RD | 935-1255 | |
| 22 | 01320-40408 | SCREW | 935-. | |
| 23 | 07177-01135 | BUSHING | 935-@ | |
| 24 | 568-63-22380 | PACKING,ROD | 935-@ | |
| 25 | 567-63-22370 | GLAND | 935-1255 | |
| 26 | 07016-01109 | SEAL,DUST | 935-@ | |
| 27 | 07179-00135 | RING,SNAP | 935-@ | |
| 28 | 07000-13130 | O-RING | 935-1255 | |
| 29 | 07155-01845 | RING,WEAR | 935-@ | |
| 30 | 567-63-22120 | ROD,PISTON | 935-1255 | |
| 31 | 567-63-22680 | PISTON | 935-1255 | |
| 32 | 07155-01435 | RING,WEAR | 935-@ | |
| 33 | 281-63-13230 | RING,PISTON | 935-@ | |
| 34 | 07165-12022 | NUT,NYLON | 935-@ | |
| 35 | 01124-82045 | STUD | 935-@ | |
| 36 | 568-63-22690 | VALVE | 935-1255 | |
| 37 | 568-63-22660 | SPRING | 935-1255 | |
| 38 | 567-63-22590 | BUSHING | 935-@ |
