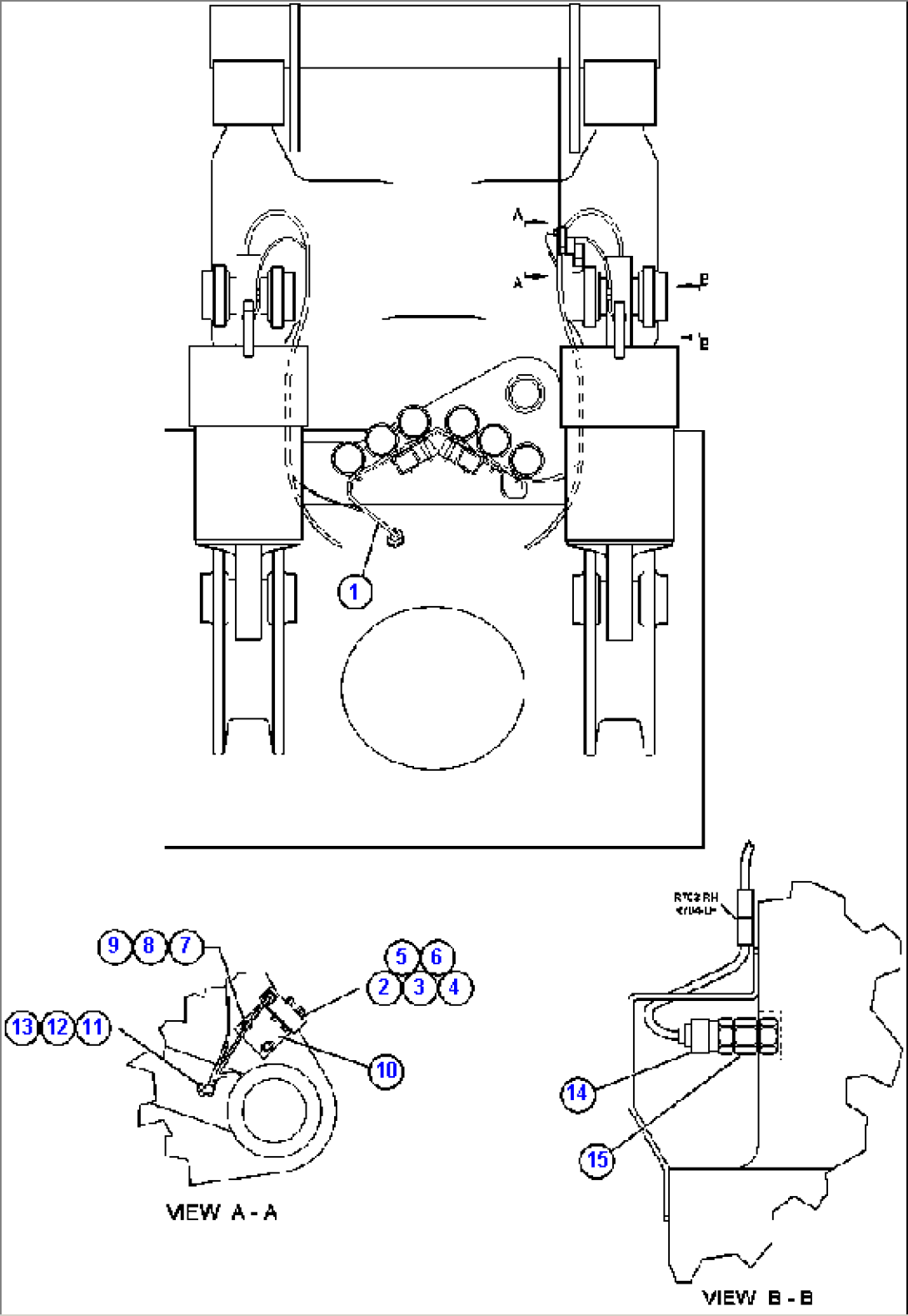

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EF9216 | HARNESS, AXLE HOUSING | ||
| 2 | PB4307 | SWITCH, PROXIMITY | ||
| 3 | WA4770 | MACHINE SCREW - #10 - 24 X 2" | ||
| 4 | VC5344 | FLAT WASHER - #10 | ||
| 5 | DC3101 | LOCKWASHER - #10 | ||
| 6 | DF0017 | NUT - #10 | ||
| 7 | TD0794 | CAPSCREW - 5/16" - 18 X 3/4" | ||
| 8 | SC4174 | LOCKWASHER - 5/16" | ||
| 9 | TV0177 | FLAT WASHER - 5/16" | ||
| 10 | TX6079 | BRACKET | ||
| 11 | VN9908 | CLAMP | ||
| 12 | MM0471 | LOCKWASHER - M10 | ||
| 13 | MM0178 | NUT - M10 | ||
| 14 | EF8669 | SWITCH, PRESSURE (PAYLOAD) | ||
| 15 | EF8679 | ASSM, VALVE - CHECK | ||
| 15 | TZ8627 | BODY, VALVE | ||
| 15 | EF8677 | ADAPTOR, TRANSDUCER | ||
| 15 | TD7179 | CORE, VALVE | ||
| 15 | 0700051009 | O-RING | ||
| NS|20 | NOTE: NS = (NOT SHOWN) | |||
| NS|21 | EG4754 | PLATE, BENT (HOIST LIMIT - BODY) | ||
| NS|22 | EG1849 | PLATE, BENT (BODY UP - BODY) |
