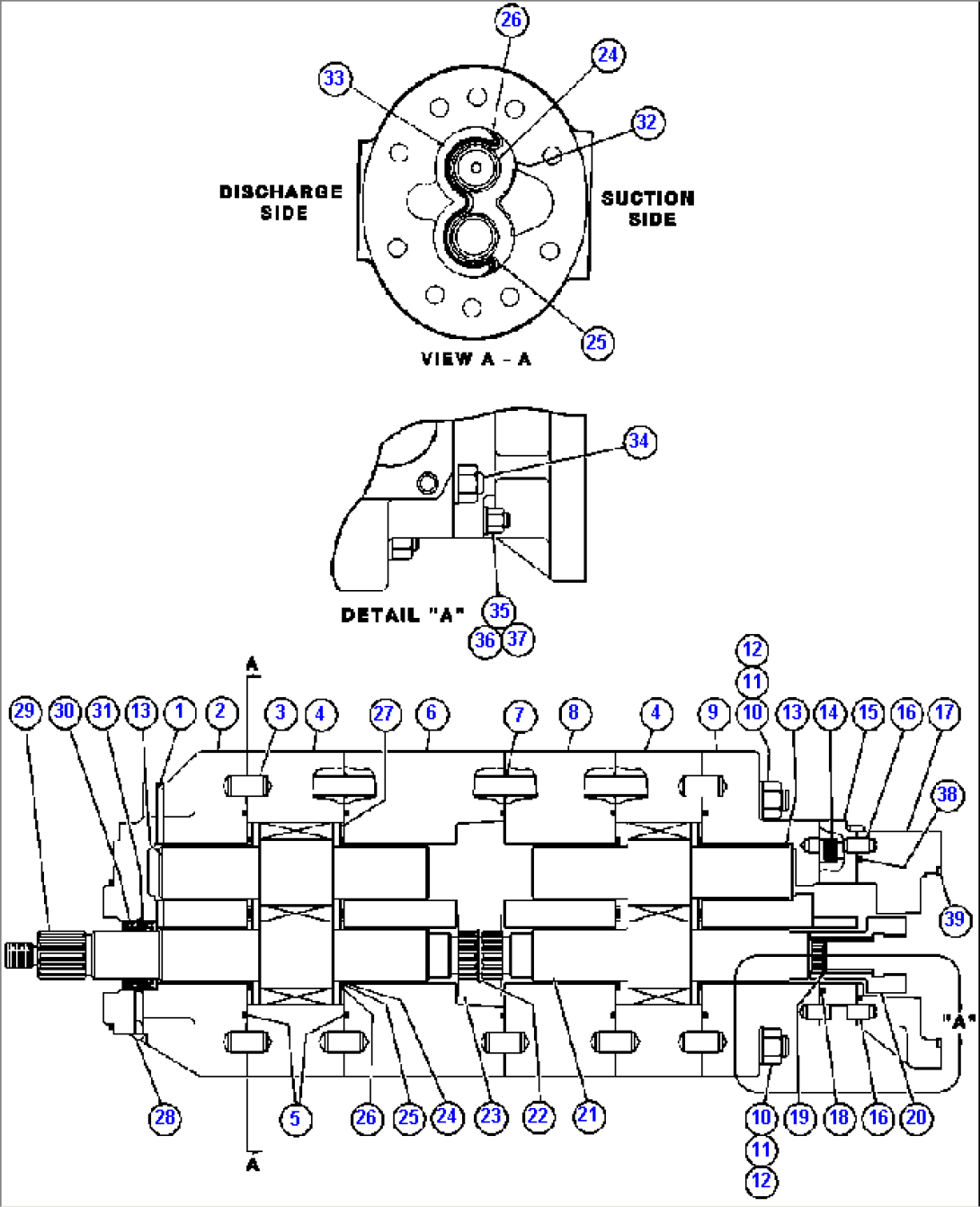

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TH7965 | BALL, STEEL - 1/4" | ||
| 2 | VE3571 | FLANGE | ||
| 3 | VE3588 | DOWEL | ||
| 4 | VE7795 | PLATE, GEAR | ||
| 5 | WA0262 | O-RING (1)/(2) | ||
| 6 | VE3572 | PLATE, CONNECTOR | ||
| 7 | VE3593 | O-RING (2) | ||
| 8 | VE3574 | PLATE, BEARING | ||
| 9 | VE3573 | PLATE, CONNECTOR | ||
| 10 | VE3592 | WASHER | ||
| 11 | 25632R1 | NUT | ||
| 12 | BF2675 | STUD | ||
| 13 | VE7797 | GEAR, IDLER | ||
| 14 | BF0065 | CAPSCREW | ||
| 15 | VE3575 | PLATE, BEARING | ||
| 16 | VS0629 | DOWEL | ||
| 17 | VE8967 | PLATE, TRANSITION (3) | ||
| 18 | WA0158 | O-RING (2)/(3) | ||
| 19 | VE3600 | SNAP RING (1)/(3) | ||
| 20 | VE8966 | COUPLING, SPLINE (3) | ||
| 21 | BF2674 | GEAR, DRIVE | ||
| 22 | SL8698 | SNAP RING | ||
| 23 | VE3589 | COUPLING | ||
| 24 | VE3738 | RING, STEEL | ||
| 25 | VE3583 | RING, BACKUP (2) | ||
| 26 | VE3584 | O-RING (2) | ||
| 27 | VE3580 | PLATE, PRESSURE | ||
| 28 | VE1783 | PLUG (1)/(2) | ||
| 29 | BF2673 | GEAR, DRIVE | ||
| 30 | VE3586 | SEAL (1)/(2) | ||
| 31 | TG3789 | SNAP RING (1)/(2) | ||
| 32 | VE3581 | PLATE, ISOLATION | ||
| 33 | VE3582 | RING, RETAINER (2) | ||
| 34 | BF2676 | STUD | ||
| 35 | VE5201 | STUD | ||
| 36 | WA0360 | FLAT WASHER - 1/2" | ||
| 37 | 25527R1 | NUT | ||
| 38 | WA0155 | O-RING (2)/(3) | ||
| 39 | WA0098 | O-RING | ||
| NS|40 | VE3594 | NOTE: (1) INCLUDED IN VE3594 SHAFT SEAL KIT. | ||
| NS|41 | BF0033 | (2) INCLUDED IN BF0033 SOFT GOODS SERVICE KIT. | ||
| NS|42 | PB8769 | (3) INCLUDED IN PB8769 PUMP REWORK KIT. |
