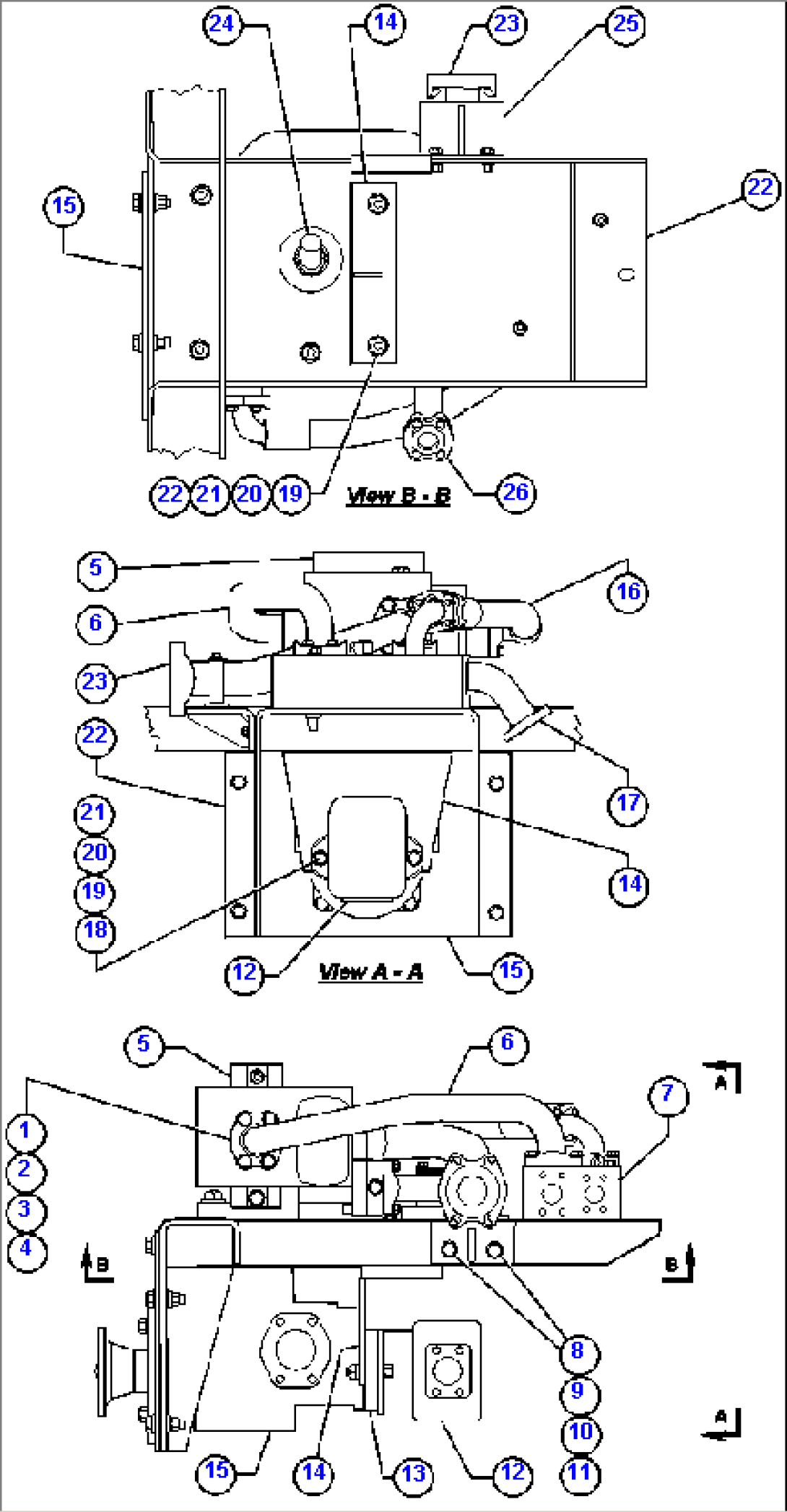

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TF3231 | SPLIT FLANGE - 2" | ||
| 2 | WA0187 | SEAL, O-RING | ||
| 3 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 4 | C1540 | LOCKWASHER - 1/2" | ||
| 5 | PB8267 | HOIST CONTROL VALVE ASSM (SEE INDEX) | ||
| 6 | EC1208 | TUBE | ||
| 7 | EC1207 | MANIFOLD | ||
| 8 | MM0045 | CAPSCREW - M12 X 1.75 X 40 | ||
| 9 | MM0472 | LOCKWASHER - M12 | ||
| 10 | MM0714 | FLAT WASHER, HARDENED - M12 | ||
| 11 | MM0179 | NUT - M12 X 1.75 | ||
| 12 | PB9870 | STEERING & BRAKE PUMP ASSM (SEE INDEX) | ||
| 13 | VL5418 | SEAL, O-RING | ||
| 14 | EG3801 | BRACKET | ||
| 15 | EF5500 | HOIST PUMP INSTL (SEE INDEX) | ||
| 16 | HA7474 | HOSE | ||
| 17 | EC1209 | TUBE | ||
| 18 | EF7090 | STUD - 5/8" | ||
| 19 | C1541 | LOCKWASHER - 5/8" | ||
| 20 | C1550 | FLAT WASHER - 5/8" | ||
| 21 | C1525 | NUT - 5/8" - 11NC | ||
| 22 | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | ||
| 23 | EC1210 | TUBE | ||
| 24 | WA0551 | FITTING - 45 DEG | ||
| 25 | EC1205 | ANGLE | ||
| 26 | EC1209 | TUBE |
