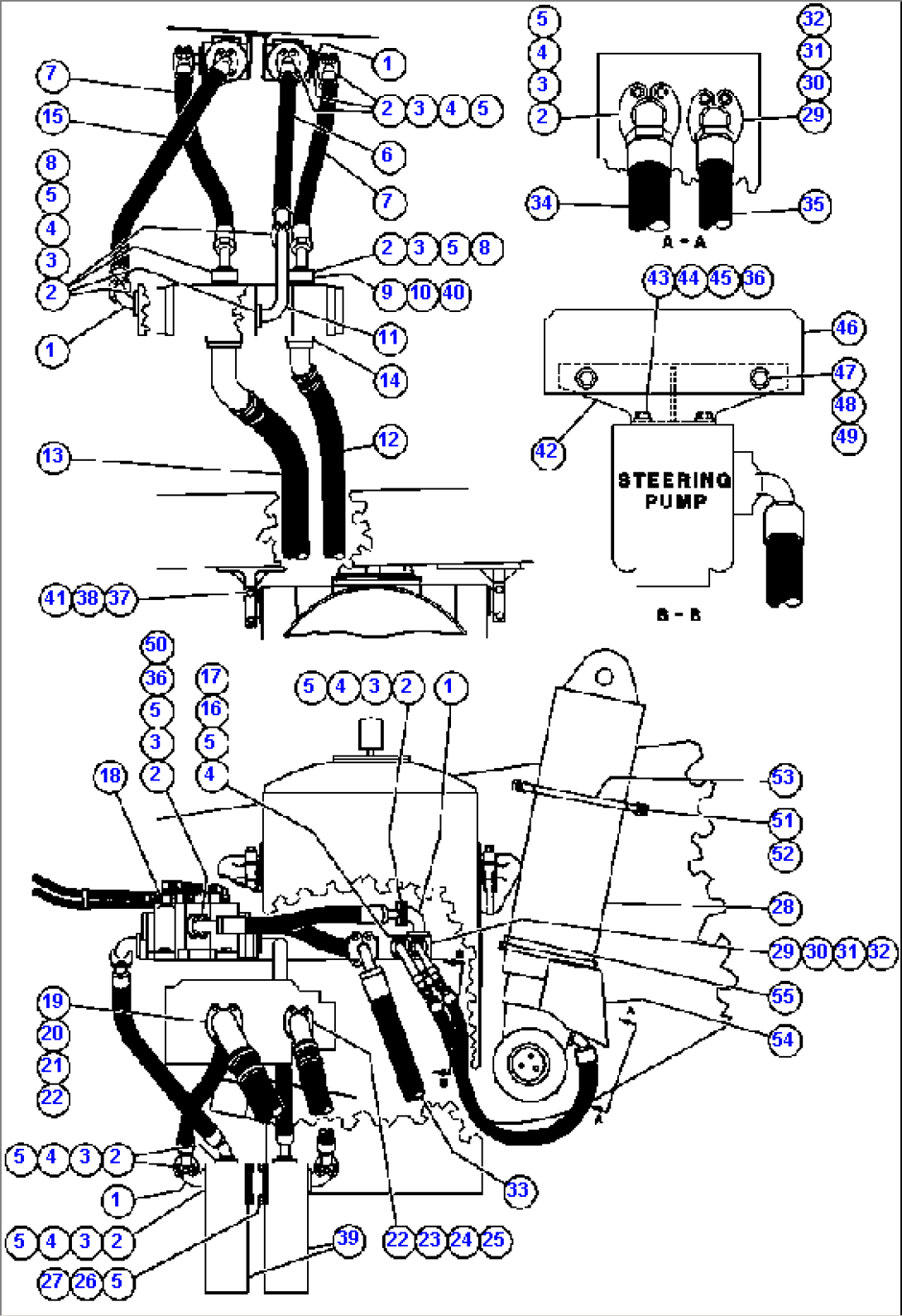

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB8318 | ELBOW - 90 DEG | | |
| 2 | TF3231 | FLANGE, SPLIT | | |
| 3 | WA0187 | SEAL, O-RING | | |
| 4 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | | |
| 5 | C1540 | LOCKWASHER - 1/2" | | |
| 6 | HA6250 | HOSE | | |
| 7 | HA6253 | HOSE | | |
| 8 | C1619 | CAPSCREW - 1/2" - 13NC X 2 3/4" | | |
| 9 | TY8358 | ADAPTOR, FLANGE | | |
| 10 | PB6528 | COUPLING, DIAGNOSTIC | | |
| 11 | TY9635 | TUBE | | |
| 12 | TY8367 | HOSE | | |
| 13 | TY8365 | HOSE | | |
| 14 | PB8761 | PUMP, HOIST ASSM (SEE INDEX) | | |
| 15 | HA6248 | HOSE | | |
| 16 | TF8090 | FLANGE, SPLIT | | |
| 17 | VG9095 | SEAL, O-RING | | |
| 18 | WB0557 | FITTING, TEE | | |
| 19 | VN7716 | FLANGE, HALF | | |
| 20 | WA0245 | SEAL, O-RING | | |
| 21 | C1630 | CAPSCREW - 5/8" - 11NC X 2" | | |
| 22 | C1541 | LOCKWASHER - 5/8" | | |
| 23 | VL9963 | FLANGE, SPLIT | | |
| 24 | WA0237 | SEAL, O-RING | | |
| 25 | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | | |
| 26 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | | |
| 27 | TY8357 | BRACKET | | |
| 28 | TY8374 | HOIST CYLINDER & BUSHING ASSM | | |
| 29 | TF3237 | CLAMP, SPLIT FLANGE | | |
| 30 | VG9096 | SEAL, O-RING | | |
| 31 | C1609 | CAPSCREW - 7/16" - 14NC X 1 1/2" | | |
| 32 | C5775 | LOCKWASHER - 7/16" | | |
| 33 | HA6228 | HOSE | | |
| 34 | HA6330 | HOSE | | |
| 35 | HA6340 | HOSE | | |
| 36 | PB7980 | VALVE, ORIFICE CHECK | | |
| 37 | C1669 | CAPSCREW - 1" - 8NC X 3 1/2" | | |
| 38 | C1544 | LOCKWASHER - 1" | | |
| 39 | PB6999 | FILTER, HOIST HIGH PRESSURE ASSM | | |
| 39 | VE4208 | HEAD ASSM | | |
| 39 | PB7023 | FILTER, 7 MICRON | | |
| 39 | VE4209 | TUBE | | |
| 39 | VE3433 | CAP, END | | |
| 39 | VE3429 | KIT, O-RING | | |
| 39 | VE4206 | INDICATOR - 24V DC | | |
| 39 | VE3431 | KIT, SEAL | | |
| 39 | VE3432 | SET SCREW | | |
| 39 | VE3434 | PLUG | | |
| 39 | VE3435 | O-RING | | |
| 40 | PB6041 | CAP, DUST | | |
| 41 | TY4907 | CAP | | |
| 42 | EC8707 | BRACKET | | |
| 43 | DC7524 | CAPSCREW - 3/8" - 16NC X 7/8" | | |
| 44 | C0312 | LOCKWASHER - 3/8" | | |
| 45 | WA0720 | FLAT WASHER - 3/8" (HARDENED) | | |
| 46 | ED6195 | BRACKET, PUMP-VALVE | | |
| 47 | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | | |
| 48 | WA0361 | FLAT WASHER - 5/8" (HARDENED) | | |
| 49 | VN9952 | LOCKNUT - 5/8" - 11NC | | |
| 50 | C5760 | CAPSCREW - 1/2" - 13NC X 5 1/2" | | |
| 51 | C1542 | LOCKWASHER - 3/4" (1) | | |
| 52 | C1643 | CAPSCREW - 3/4" - 10NC X 1 3/4" (1) | | |
| 53 | TY9627 | CLAMP (1) | | |
| 54 | TZ2549 | COVER, HOIST CYLINDER | | |
| 55 | TZ3107 | CLAMP, T-BOLT | | |
| NS|66 | | NOTE: (1) USED FOR SHIPPING & HANDLING ONLY. | | |
