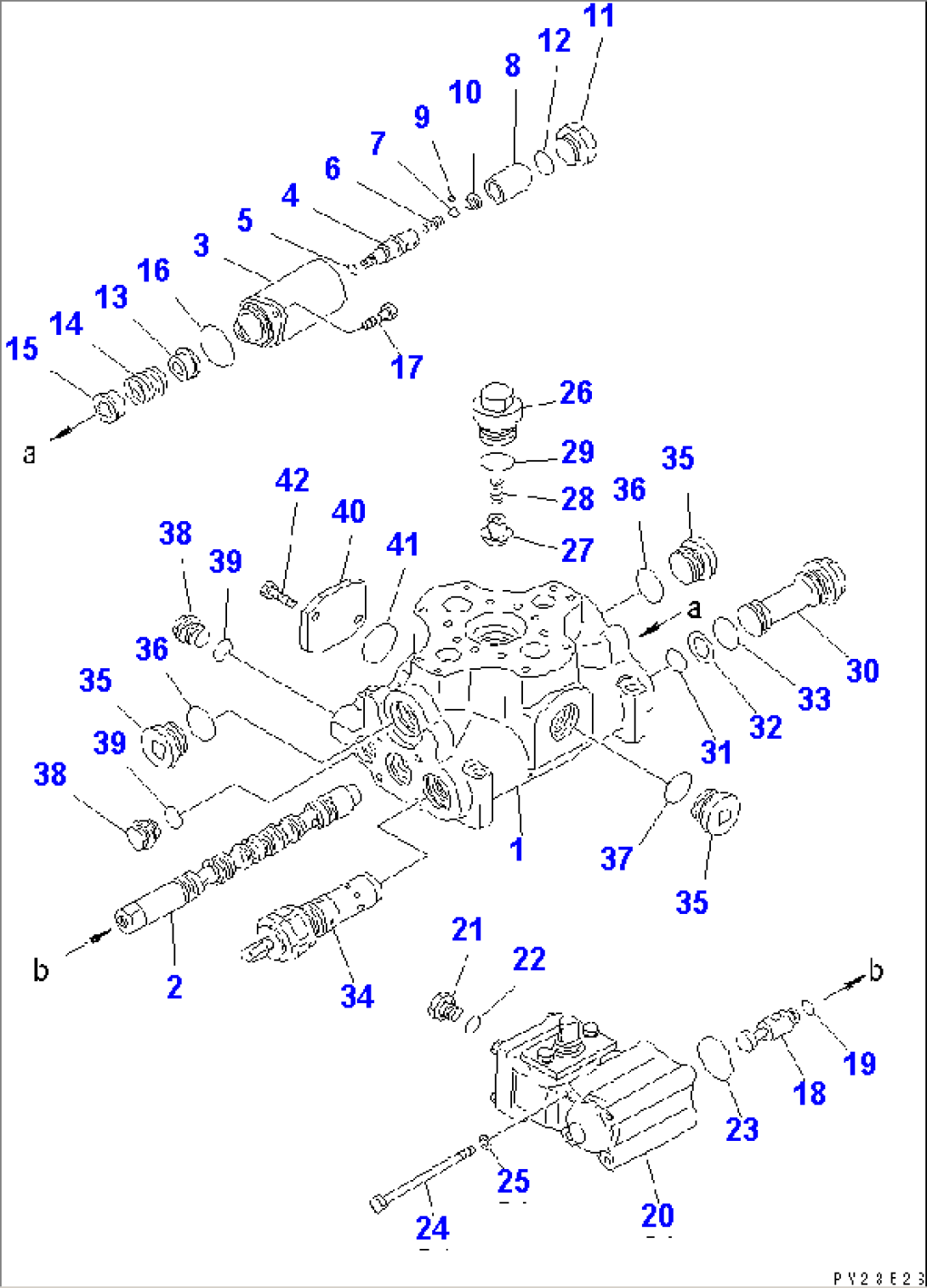

HOIST VALVE (1/3)

Item	Part No.	Part Name	Qty	Serial No.
	700-91-73000	VALVE ASS'Y		1601-
	700-91-35000	VALVE ASS'Y		1001-1600
		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 TO Y1660-03A0.
1	\6\	BODY		1001-
2	\6\	SPOOL		1001-
3	700-91-11230	CASE		1001-
4	700-91-11250	PLUG		1001-
5	07000-11006	O-RING		1001-
6	700-82-11380	SPRING		1001-
7	04260-00952	BALL		1001-
8	700-91-11370	DETENT		1001-
9	700-84-11730	BALL		1001-
10	700-21-11210	PLUG		1001-
11	700-92-11430	PLUG		1001-
12	07002-13034	O-RING		1601-
12	07002-03034	O-RING		1001-1600
13	700-91-11380	RETAINER		1001-
14	700-91-11390	SPRING		1001-
15	700-91-11260	RETAINER		1001-
16	07000-13042	O-RING		1601-
16	07000-03042	O-RING		1001-1600
17	01252-30820	BOLT		1001-
18	700-93-11930	JOINT		1001-
19	07002-11423	O-RING		1001-
20	(702-13-21601)	ROTARY SEAL ASS'Y		1001-
21	700-91-11290	PLUG		1001-
22	07000-12020	O-RING		1601-
22	07000-02020	O-RING		1001-1600
23	07000-13042	O-RING		1601-
23	07000-03042	O-RING		1001-1600
24	430-07-23560	BOLT		1001-
25	01602-20825	WASHER,SPRING		1001-
26	700-93-11481	PLUG		1001-
27	700-93-11461	VALVE,CHECK		1001-
28	700-93-11471	SPRING		1001-
29	07002-13634	O-RING		1001-
30	700-93-11310	PLUG		1001-
31	700-93-11320	O-RING		1001-
32	700-93-11330	RING,BACK-UP		1001-
33	07002-13634	O-RING		1601-
33	07002-03634	O-RING		1001-1600
34	(700-94-57000)	VALVE ASS'Y,RELIEF		1001-
35	07040-13618	PLUG		1001-
36	07002-13634	O-RING		1601-
36	07002-03634	O-RING		1001-1600
37	07002-13634	O-RING		1001-
38	700-22-11370	PLUG		1001-
39	07002-12434	O-RING		1601-
39	07002-02434	O-RING		1001-1600
40	700-93-11940	FLANGE		1001-
41	07430-71380	O-RING		1001-
42	01010-81025	BOLT		1001-
