| Item | Part No. | Part Name | Qty | Serial No. |
| (709-91-12201) | HOIST VALVE ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6201 TO 6203. | ||||

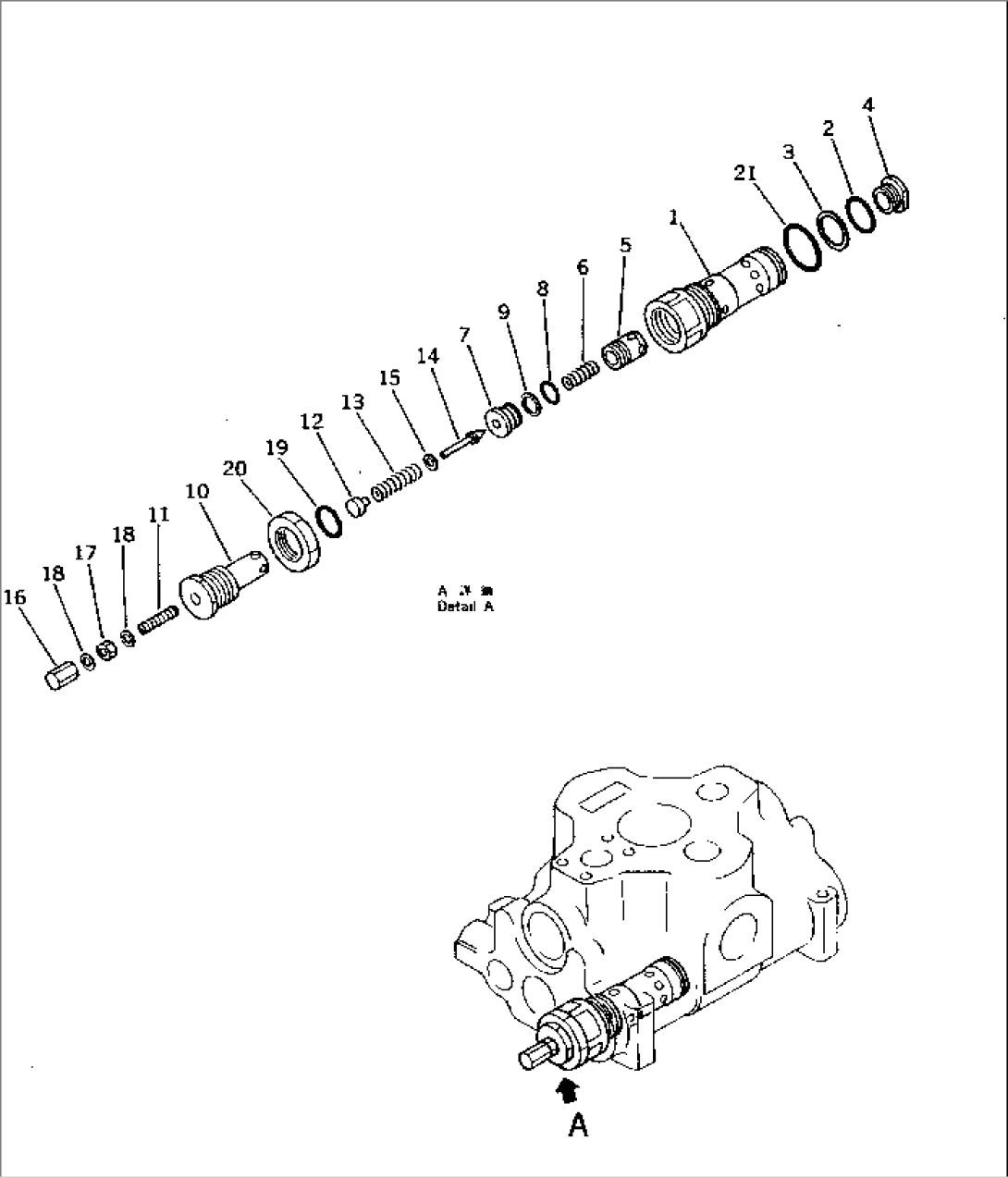

| 700-90-58000 | RELIEF VALVE ASS'Y | 1001- | ||
| 1 | \6\ | SLEEVE | 1001- | |
| 2 | 700-93-11320 | O-RING | 1001- | |
| 3 | 700-93-11330 | RING,BACK-UP | 1001- | |
| 4 | \6\ | PLUG | 1001- | |
| 5 | \6\ | VALVE | 1001- | |
| 6 | 700-90-51320 | SPRING | 1001- | |
| 7 | 700-90-51150 | SEAT | 1001- | |
| 8 | 07000-22016 | O-RING | 1001- | |
| 9 | 07001-02016 | RING,BACK-UP | 1001- | |
| 10 | 700-90-51270 | HOLDER | 1001- | |
| 11 | 700-90-51281 | SCREW | 1001- | |
| 12 | 700-90-51250 | RETAINER | 1001- | |
| 13 | 700-90-51160 | SPRING | 1001- | |
| 14 | 700-80-61190 | POPPET | 1001- | |
| 15 | 700-80-51240 | SPACER | 1001- | |
| 16 | 700-90-51311 | NUT | 1001- | |
| 17 | 01580-10806 | NUT | 1001- | |
| 18 | 700-90-51290 | WASHER,SEAL | 1001- | |
| 19 | 07002-03034 | O-RING | 1001- | |
| 20 | 700-90-51190 | NUT | 1001- | |
| 21 | 07002-03634 | O-RING | 1001- |
