| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-181-8160 | CAP | 53001- | |
| 2 | 418-U12-2150 | BRACKET | 53001- | |
| 3 | 01435-01020 | BOLT | 53001- | |
| 4 | 600-181-0640 | HOSE,AIR | 53001- | |
| 5 | 07281-01159 | CLAMP | 53001- | |
| 6 | 416-Z91-2110 | PLATE | 53001- | |
| 7 | 01435-00820 | BOLT | 53001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250l 3 s/n 53001 up (chassis only) (for north america)
- Guard
- Hood (air intake extension) (with vandalism protection)
Поиск по каталогу

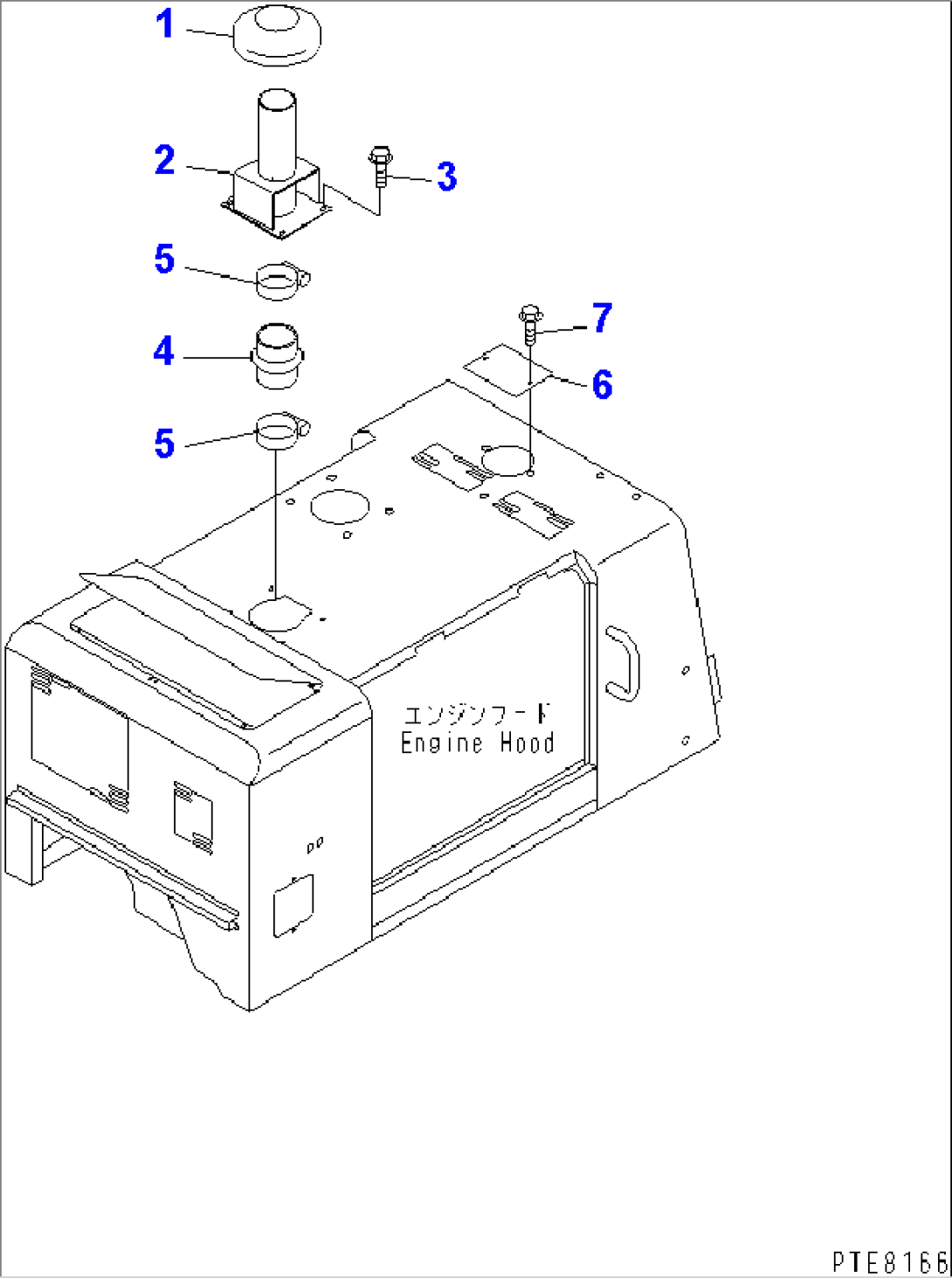

HOOD (AIR INTAKE EXTENSION) (WITH VANDALISM PROTECTION)
