| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-181-3840 | CAP | 11001- | |
| 2 | 415-54-22840 | BRACKET | 11501- | |
| 3 | 01010-81225 | BOLT | 11501- | |
| 4 | 01643-31232 | WASHER | 11501- | |
| 5 | 415-54-22850 | HOSE | 11501- | |
| 6 | 07289-00080 | CLAMP | 11501- | |
| 7 | 07289-00105 | CLAMP | 11501- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa100m 3 s/n 10001 up (canopy spec.)
- Guard
- Hood (air intake extension)(#11501 )
Поиск по каталогу

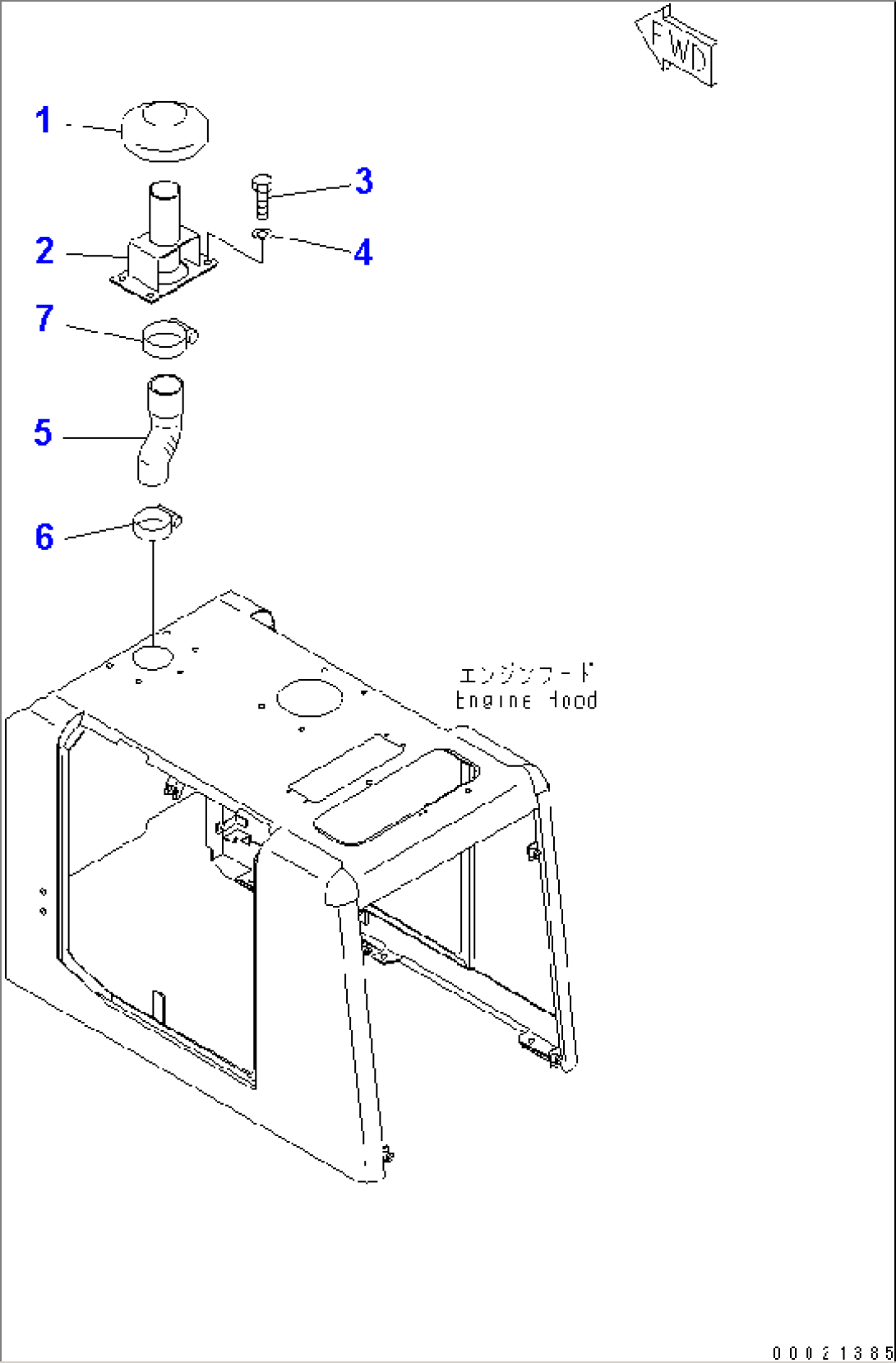

HOOD (AIR INTAKE EXTENSION)(#11501-)
