| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08088-30000 | SWITCH | 11001- | |
| 2 | 01435-00825 | BOLT | 11001- | |
| 3 | 08038-00035 | CAP | 11001- | |
| 4 | 08038-00519 | CAP | 11001- | |
| 5 | 600-815-2690 | SWITCH | 11001- | |
| 6 | 01435-00812 | BOLT | 11001- | |
| 7 | 08038-00519 | CAP | 11001- | |
| 8 | 08038-02027 | CAP | 11001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd325 7r s/n 11001 11033 (w/o egr)
- Guard
- Hood (battery box electric group) (relay)(#11001 )
Поиск по каталогу

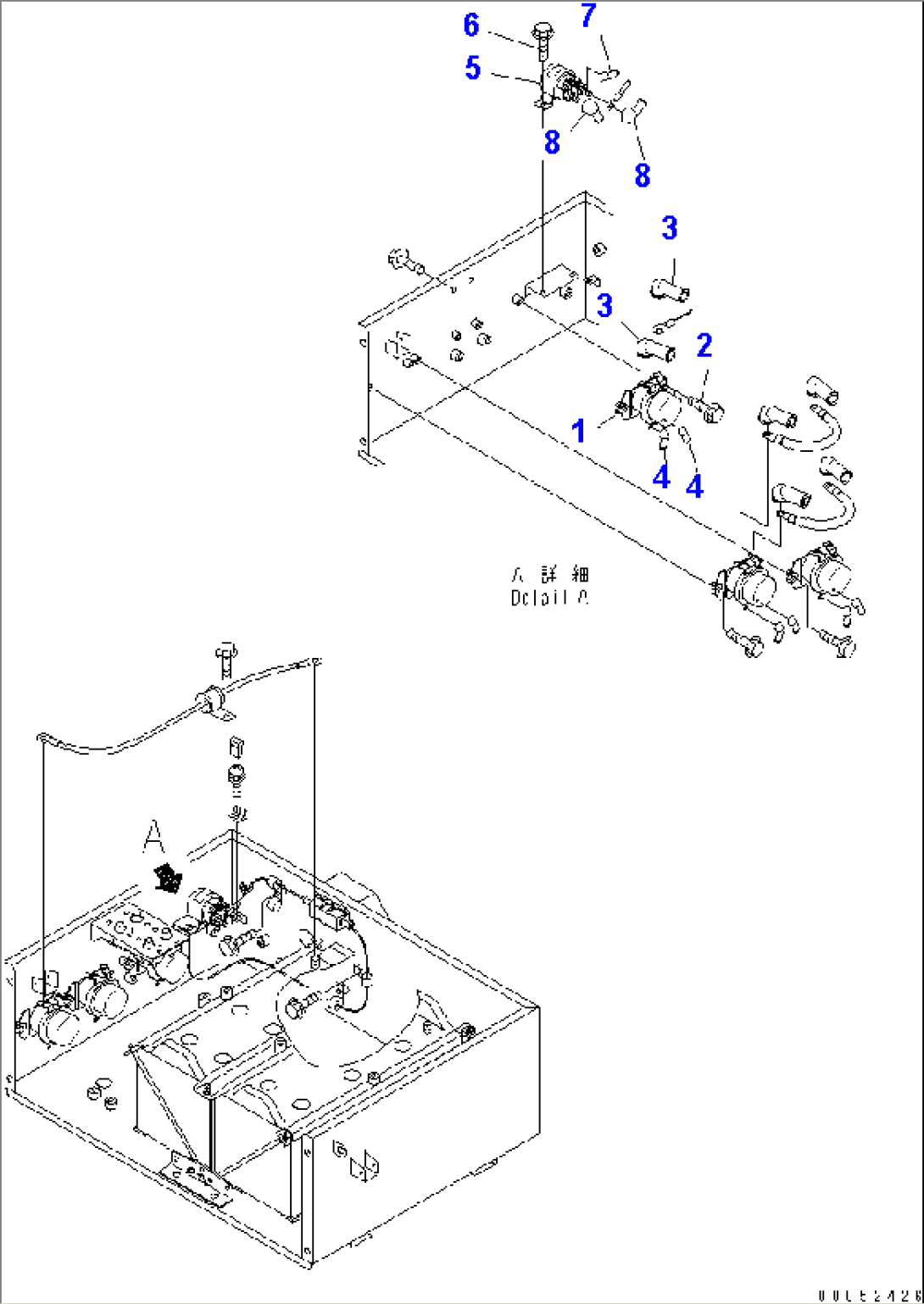

HOOD (BATTERY BOX ELECTRIC GROUP) (RELAY)(#11001-)
